heat resisitance 450/700v pvc insulated rubber cable-RNF
Flexible Rubber Cables
1. Usage:Rubber sheath flexible cable is suitable for rated AC vo1tage 450/750V or below domestic applies, power-operated tools and various portable electric Equipments
2. Working temperature:
1) YZ model flexible cable rated voltage Uo/U is 300/500V, YC model is 450/750V
2) Long time allow working temperature of wire core is not more than 650C, or 900C, or 1050C. ( It depend on the jacket material.)
3) W model flexible power cable has the property of durability and suitable for outdoor touching of greasy dirt
4) ZR model flexible rubber cable has the property of fire-resistance
Construction:
General Rubber Flex Cable Construction | |
Conductor |
Finest annealed bare copper Class 5/6 |
Core |
Single, multi core |
Jacket |
Rubber/ TPE/CPE/EPDM/ Silicone |
What's the Technical Parameters of H07 RNF Rubber Cable?
What's the Technical Parameters of General flex Rubber Cable?
Model |
Name |
Rated Voltage(V) |
Section Area(mm2) |
No. of Cores |
Usage |
YQ,YQW |
Light model rubber sheath flexible cable |
300/300 |
0.30.5 |
2,3 |
Used for light portable electric equipment and tools |
|
IEC60245-53(YZ) YZ |
Middle model rubber sheath flexible cable |
300/500 |
0.75--6 |
2,3,4,5 |
Used for various portable electric equipment and tools |
|
IEC60245-57(YZW) YZW | |||||
YC |
Heavy model rubber sheath flexible cable |
450/750 |
1.5--400 |
1 |
Used for various portable electric equipment which can bear large mechanical force effect |
1.5--95 |
2 |
||||
1.5--150 |
3 |
||||
|
IEC60245-66 YCW |
1.5--150 |
4 |
|||
2.515 |
3+1 |
||||
+ | |||||
1.5--50 | |||||
1.5--25 |
5 |
What's the Features of general rubber flex cable?
1. Weather resistance
2. Oil-resistance
3. Flexible
4. Good tenile performance
5. Wear Resistance

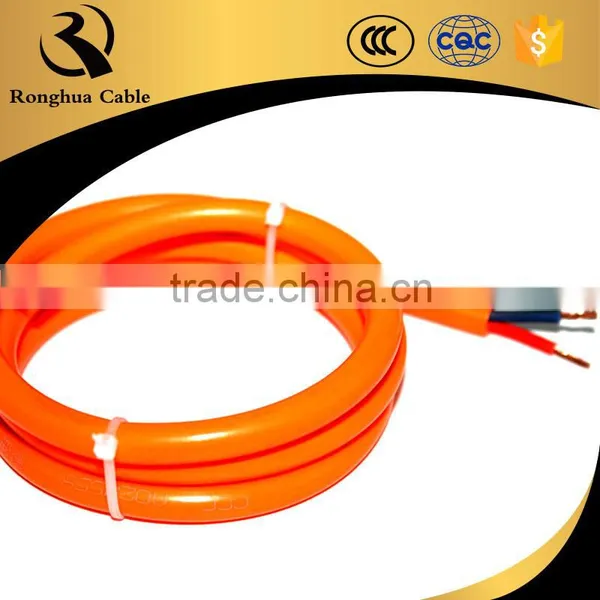

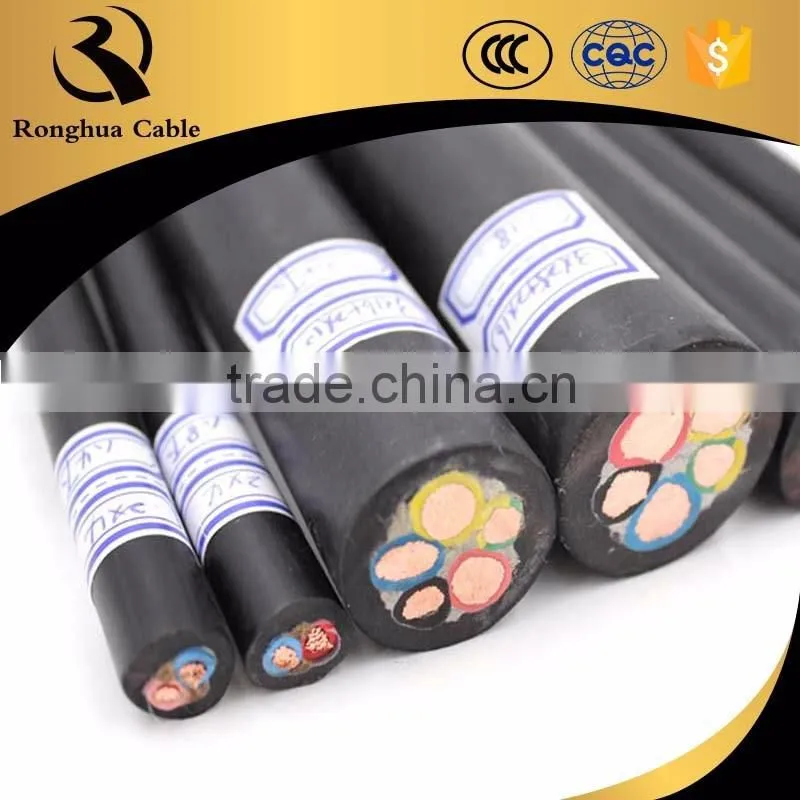

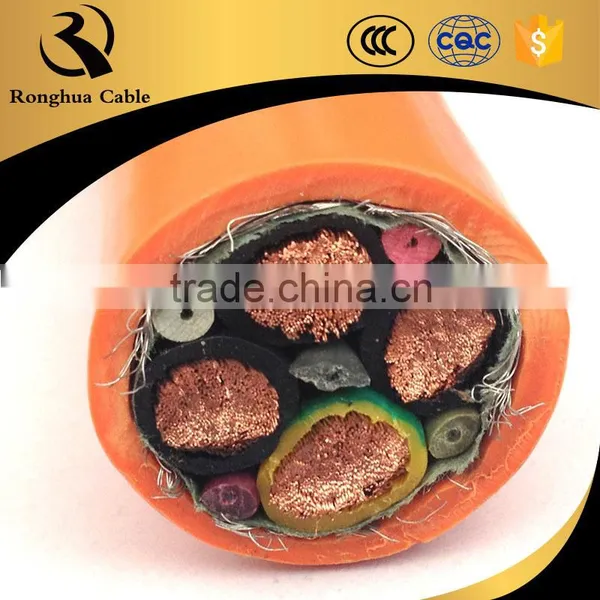

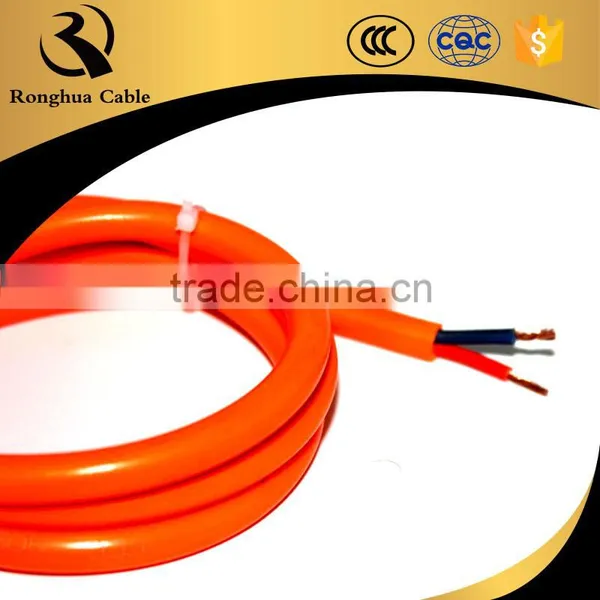

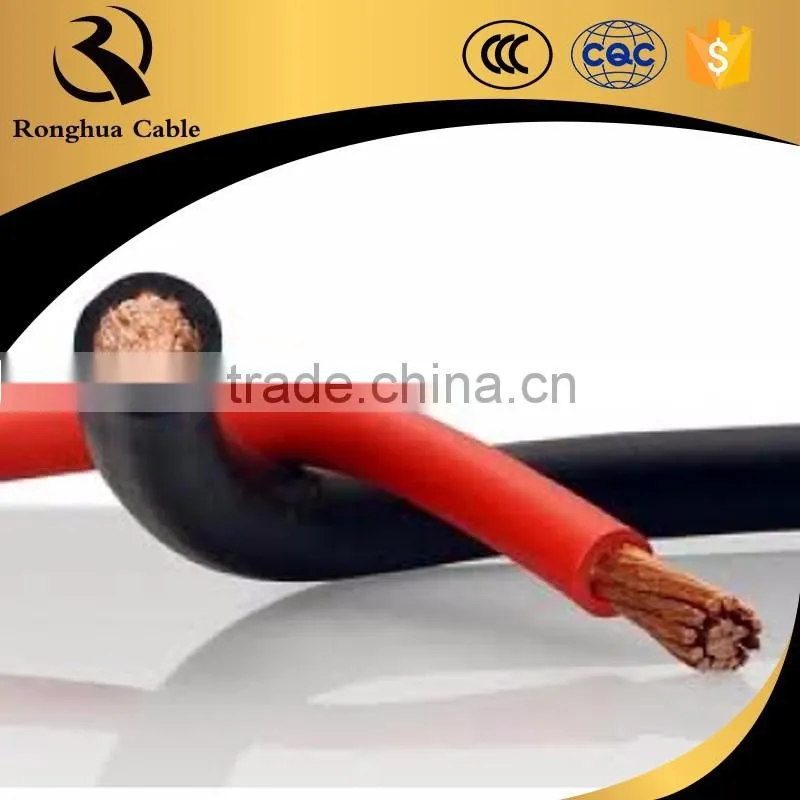

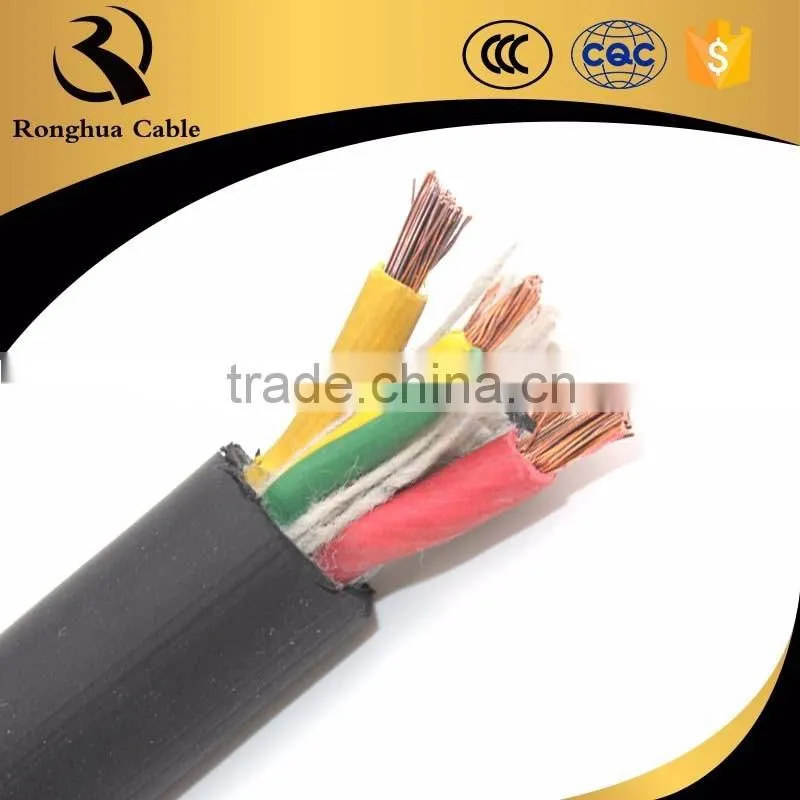

The Picture of general rubber flexible cable as belows:
1>. We’re a professional manufacturer for over 30 years
2>. High quality assurance with competitive price, delivery in time
3>. OEM & ODM are available
4>. Any of your feedback will be responded within 12 hours
heat resisitance 450/700v pvc insulated rubber cable
Hebei Ronghua Wire And Cable Co.,LTD, a professional manufacture of various of Electric Power Cables, Rubber Sheath Flexible Cable, Housing Wiring Electric Wires for more than 30 years experience. Surely we could provide you the factory price, stable quality, professional service. For any information, please kindly contact us.
Certifications:
Related Products:
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Any questions, please kindly contact us freely! We will reply you within 12 hours!
