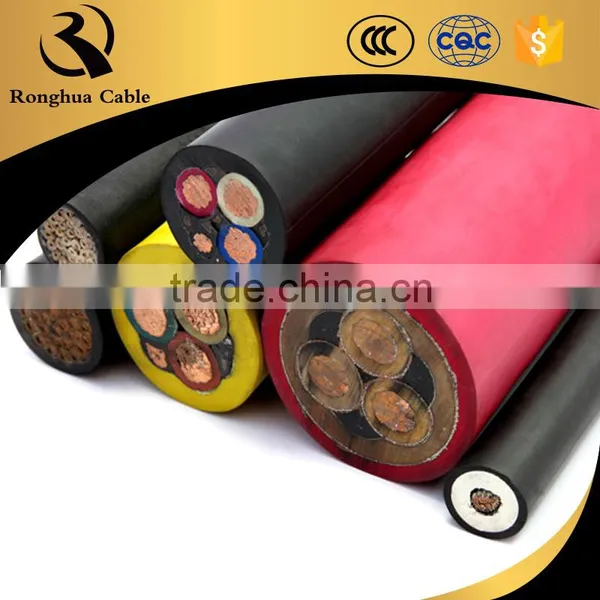

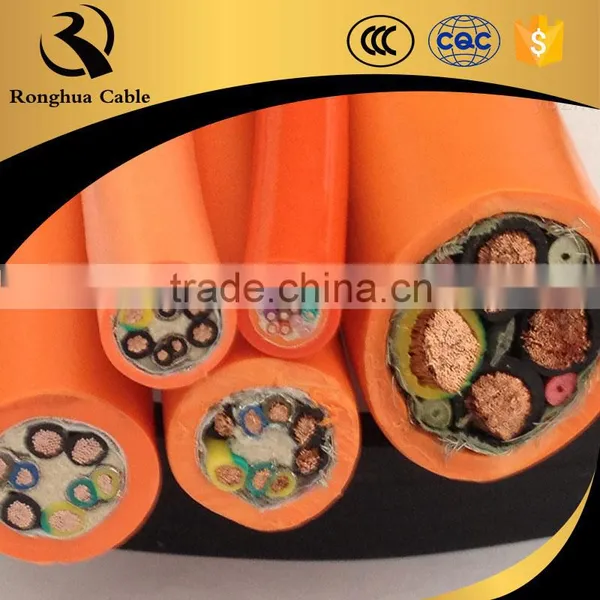

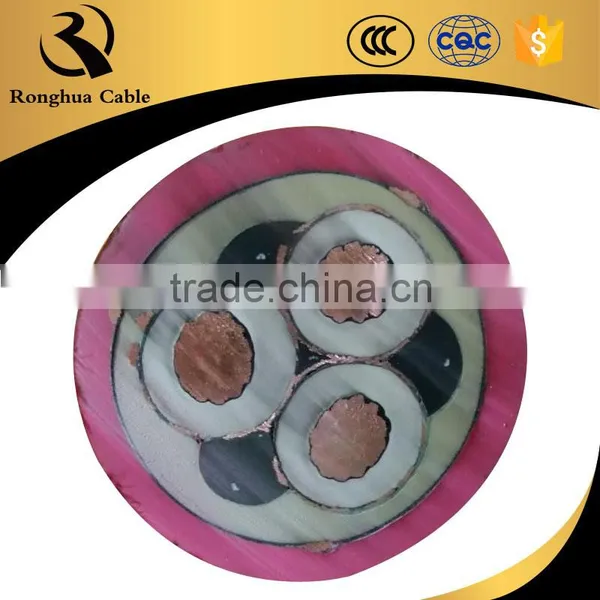

Rubber Insulated EPR cable mining cable 185mm 120mm 35mm 50mm
1.Long-term allowable operating temperature of cable conductor is not more than 65 ℃ /90 ℃.
2.The lowest temperature should more than -35 ℃.
3. This rubber cable of shield machine for mining is mainly used for heavy equipment for open-pit mine and underground digging under the voltage system of 8.7 /15kV.
4. The bending radius: not more than 6 times of cable diameter.
|
No.of conductor
|
Normal Area (mm²) |
Construction (No. /mm)
|
Sheath thickness (mm)
|
Overal diamee (mm)
|
Insulation thickness (mm)
|
Max Conductor resistance at 20°C(Ω/km) Bare
|
Max Conductor resistance at 20°C(Ω/km) Tinned
|
1 |
0.75 |
24/0.20 |
0.8 |
4.6±0.2 |
0.8 |
26 |
26.7 |
1.0 |
32/0.20 |
0.8 |
4.8±0.2 |
0.8 |
19.5 |
20 |
|
1.5 |
30/0.25 |
0.8 |
5.1±0.2 |
0.8 |
13.3 |
13.7 |
|
2 |
0.75 |
24/.02 |
0.6 |
6.4±0.2 |
0.8 |
26 |
26.7 |
1.0 |
32/0.2 |
0.6 |
6.9±0.2 |
0.9 |
19.5 |
20 |
|
3 |
0.75 |
24/0.2 |
0.6 |
7.0±0.2 |
0.9 |
26 |
26.7 |
1.0 |
32/0.2 |
0.6 |
7.4±0.2 |
0.9 |
19.5 |
2 |

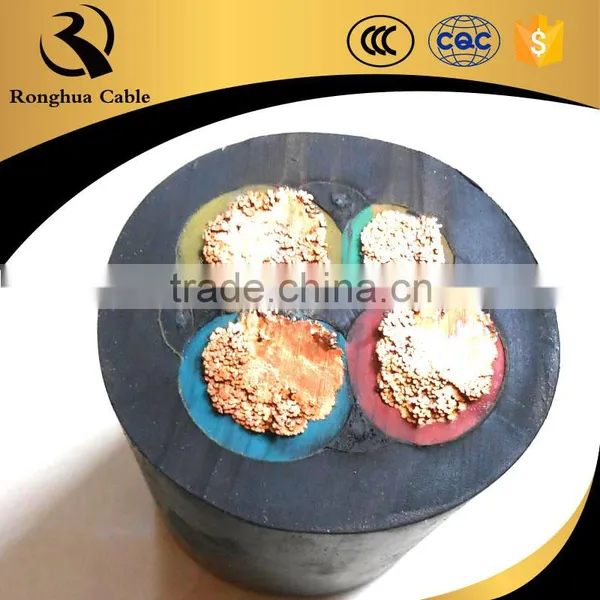

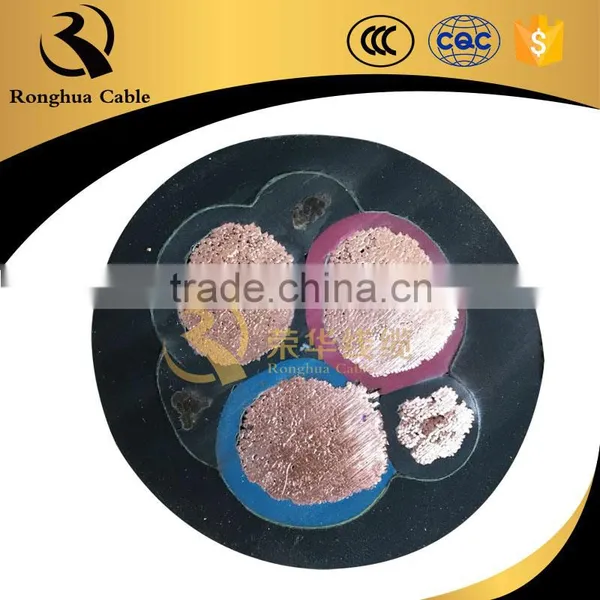

3+1 cores safe mining use power cable rubber sheathed movable flexible mining cable type
| Type | Description | Application |
| MC-0.38/0.66 | Rubber flexible cable for excavator | As the power connection used |
| in the excavator or similar equipment | ||
| with rated voltage 0.38/0.66kV | ||
| MCP-0.38/0.66 | Shielded, rubber-sheathed flexible | As the power connection used |
| cable for excavator | in the excavator or similar equipment | |
| with rated voltage 0.38/0.66kV | ||
| MCP-0.66/1.14 | Shielded, rubber flexible cable for excavator | As the power connection used |
| in the excavator or similar | ||
| equipment with rated voltage 0.38/0.66kV | ||
| MCPJB-0.66/1.14 | Shielded ,monitoring and braiding | As the power connection used |
| reinforced type, rubber flexible cable for excavator | in the excavator or similar | |
| equipment with rated voltage 0.66/1.14kV, | ||
| it can be dragged directly | ||
| MCPJR-0.66/1.14 | Shielded ,monitoring and braiding reinforced type, | As the power connection used |
| rubber flexible cable for excavator | in the excavator or similar | |
| equipment with rated voltage 0.66/1.14kV, | ||
| it must be used in the protective chain panel | ||
| MCPT-0.66/1.14 | Metallic shielded rubber flexible cable for excavator | As the power connection used |
| in the excavator or similar equipment | ||
| with rated voltage 0.66/1.14kV | ||
| MCP-1.9/3.3 | Shielded rubber flexible cable for excavator | As the power connection used |
| in the excavator or similar equipment | ||
| with rated voltage 1.9/3.3kV | ||
| MCPT-1.9/3.3 | Metallic shielded rubber flexible cable for excavator | As the power connection used |
| in the excavator or similar equipment | ||
| with rated voltage 1.9/3.3kV | ||
| MCPTJ-0.66/1.14 | ||
| MCPTJ-1.9/3.3 | Metallic shielded, monitoring type, | As the power connection used |
| rubber flexible cable for excavator | in the excavator or similar equipment | |
| with rated voltage 1.9/3.3kV | ||
| MY-0.38/0.66 | Movable rubber flexible cable for mining | As the power connection used |
| in the mining machine with | ||
| rated voltage 1.9/3.3kV | ||
| MYP-0.38/0.66 | Movable shield rubber flexible cable for mining | As the power connection used |
| in the mining machine | ||
| with rated voltage 0.38/0.66kV | ||
| MYP-0.66/1.14 | Movable shield rubber flexible cable for mining | As the power connection used |
| in the mining machine with | ||
| rated voltage 0.66/1.14kV | ||
| MYPJ-3.6/6 | Monitoring movable shield rubber | As the power connection used |
| flexible cable for mining | in the mining transformer and | |
| similar equipment with rated | ||
| voltage3.6/6kV | ||
| MYPTJ-3.6/6 | Metallic shielded monitoring type | As the power connection used |
| movable rubber flexible cable | in the mining transformer and | |
| similar equipment with rated | ||
| voltage3.6/6kV | ||
| MYP-3.6/6 | Movable shield rubber flexible cable for mining | Mining equipment with rated voltage |
| 3.6/6kV the min. environment | ||
| temperature is-20℃ | ||
| MYPT-3.6/6 | Movable metallic shield rubber | Mining equipment with rated |
| flexible cable for mining | voltage 3.6/6kV the min. | |
| environment temperature is-20℃ | ||
| MYPD-3.6/6 | Movable shield rubber flexible cable for mining | Mining equipment with rated |
| voltage 3.6/6kV the min. | ||
| environment temperature is-40℃ | ||
| MYPTD-3.6/6 | Movable metallic shield rubber | Mining equipment with rated |
| flexible cable for mining | voltage 3.6/6kV the min. | |
| environment temperature is-40℃ | ||
| MZ-0.3/0.5 | Driller cable for mining | As the power connection |
| of driller with rated voltage 0.3/0.5kV | ||
| MZP-0.3/0.5 | Driller shielded cable for mining | As the power connection of |
| driller with rated voltage 0.3/0.5kV | ||
| MYQ-0.3/0.5 | Movable light-type rubber | Lighting in the mine, as the |
| flexible cable for mining | power connection of the interlock | |
| and control signals used in the transport | ||
| machine and equipment | ||
Certifications Required:
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Welcome your inquiry of mining cable . We will reply you within 12 hours!
