ESP Cable,for Oil Well Submersible Pump, Deep Well Submersible Pump

Name: ESP Cable,for Oil Well Submersible Pump, Deep Well Submersible Pump
Brand: Ronghua
SKU: 112454293
Availability: InStock

Hebei Ronghua Wire And Cable Co., Ltd.

ESP Cable,for Oil Well Submersible Pump, Deep Well Submersible Pump thumbnail-1

ESP Cable,for Oil Well Submersible Pump, Deep Well Submersible Pump thumbnail-2

ESP Cable,for Oil Well Submersible Pump, Deep Well Submersible Pump thumbnail-3

ESP Cable,for Oil Well Submersible Pump, Deep Well Submersible Pump thumbnail-4

ESP Cable,for Oil Well Submersible Pump, Deep Well Submersible Pump thumbnail-5

ESP Cable,for Oil Well Submersible Pump, Deep Well Submersible Pump thumbnail-6

ESP Cable,for Oil Well Submersible Pump, Deep Well Submersible Pump photo-1

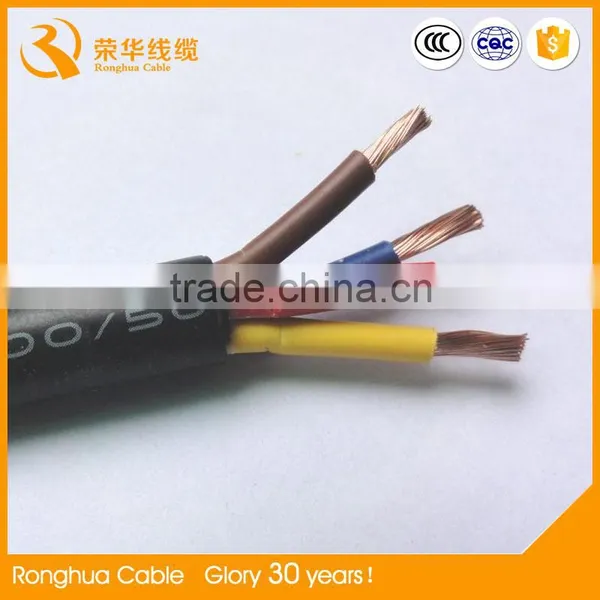

ESP Cable,for Oil Well Submersible Pump, Deep Well Submersible Pump photo-2

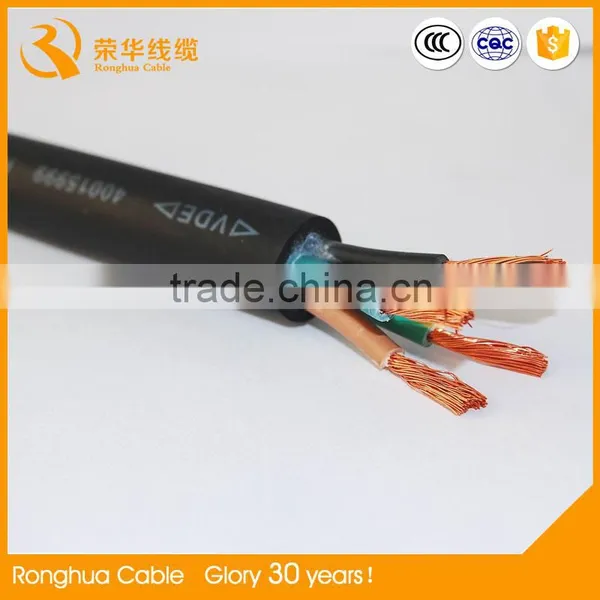

ESP Cable,for Oil Well Submersible Pump, Deep Well Submersible Pump photo-3

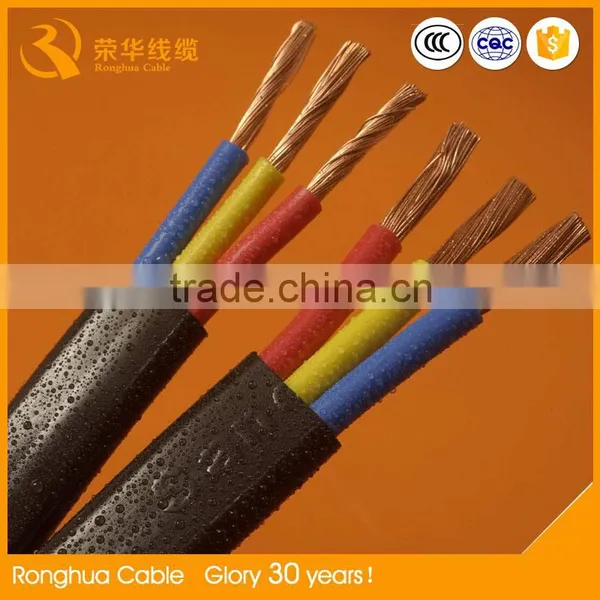

ESP Cable,for Oil Well Submersible Pump, Deep Well Submersible Pump photo-4

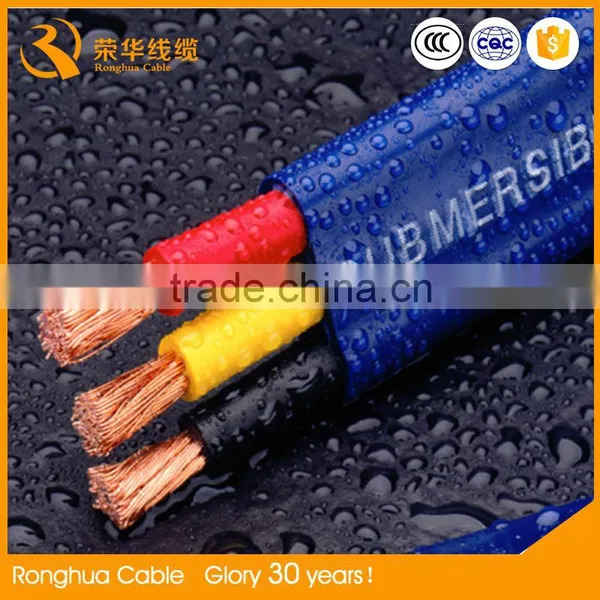

ESP Cable,for Oil Well Submersible Pump, Deep Well Submersible Pump photo-5

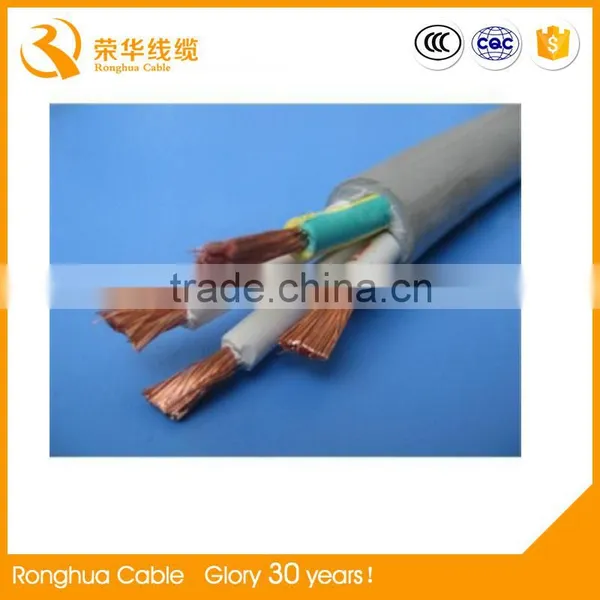

ESP Cable,for Oil Well Submersible Pump, Deep Well Submersible Pump photo-6

US$ 0.1 - 80 MOQ: 500 Meters

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

Ronghua

Model Number:

JHS/JHSB

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Xingang

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name Ronghua

Model Number JHS/JHSB

Insulation Material Rubber

Type Low Voltage

Application Industrial

Conductor Material Other, Copper, Aluminum or Copper

Jacket Other, Rubber, TPE/ Rubber/CPE/ EPDM/Silicone

Product Description

^{Features
Meets the requirement of UL - 83 IEC 60245, DIN VDE 0282 PART 810, BS 6007 & BS 6899
600 volts, 90° C Dry & Wet
Designed for heavy duty use
Temperature range -40° to 90°
ROHS compliance (lead free)
Flat submersible 600 V pump cable suitable for use within deep well fresh or salt water submersible pumps.
Contraction - Rubber AWG Pump Cables Class C Flexible, bare copper
Insulation : PVC or Rubber
Sheath : PVC or Rubber
Colour Code : Black - Yellow - Red (Without Ground)}
Black - Yellow - Red - Green (With Ground)

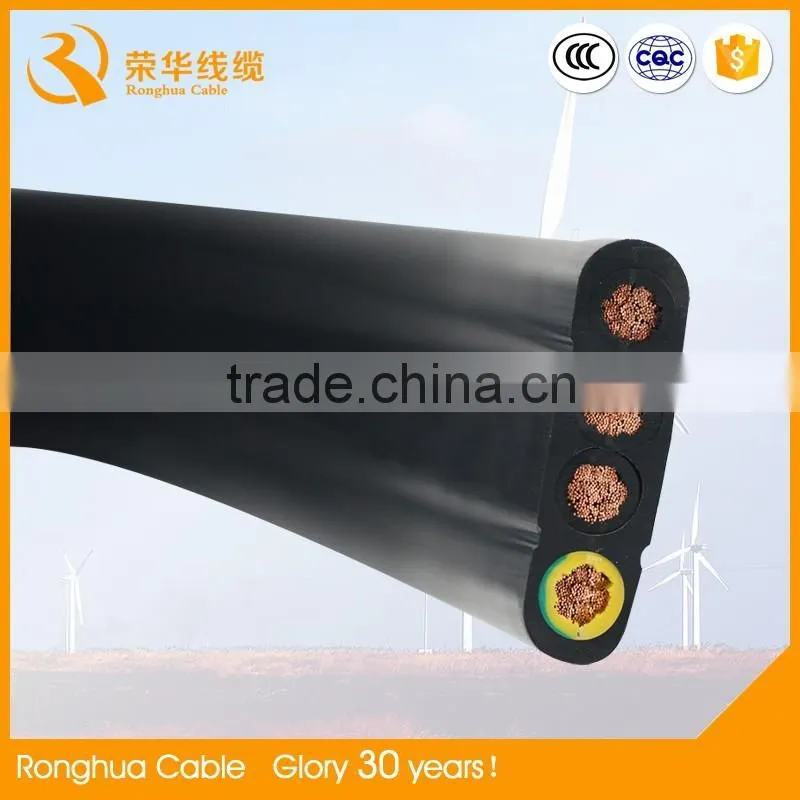

4 core flat type submersible pump cable

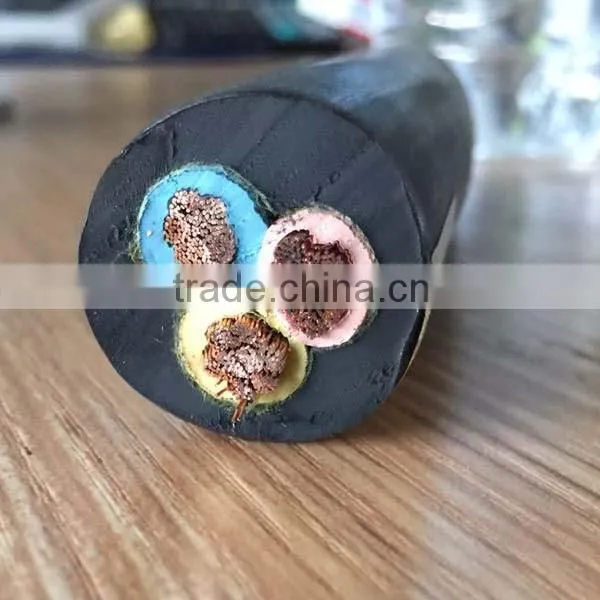

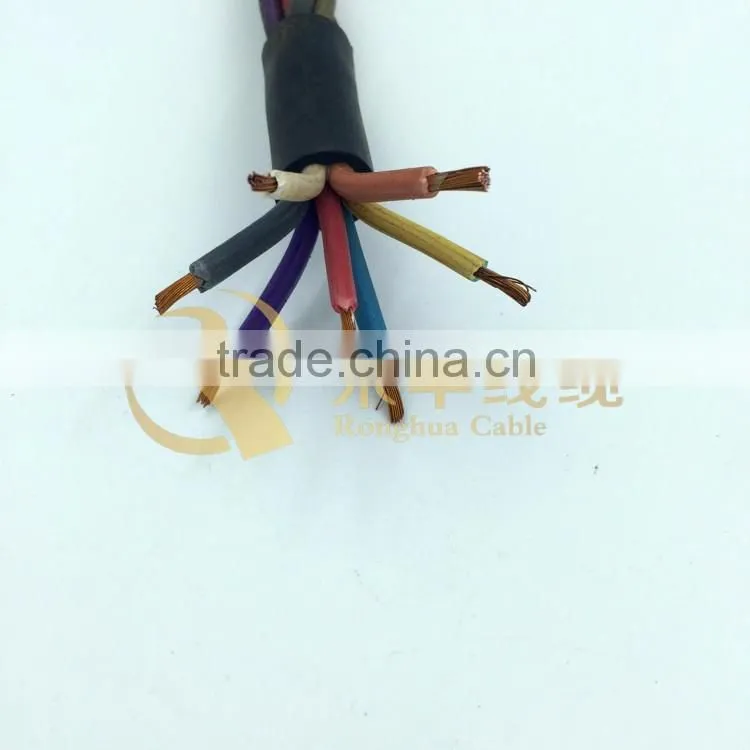

3 core round type rubber sheathed ESP cable

Flat Jacketed Submersible Pump Cables Without Ground
Conductor Size AWG	NO. Of Conductor	NOS OF Dia. Of wire	Core Dia	Sheath Thickness (MM)	Cable Dia.
14	3	41/0.254	3.85	1.15	14.60*6.40
12	3	65/0.254	4.50	1.15	16.80*7.40
10	3	105/0.254	5.30	1.15	18.70*7.90
8	3	168/0.254	6.50	1.40	23.70*9.90
6	3	226/0.254	8.00	1.40	28.00*11.40
4	3	420/0.254	10.10	2.00	35.50*14.70
2	3	665/0.254	11.30	2.00	39.50*16.20
1	3	817/0.254	13.60	2.20	45.50*18.30
1/0	3	1045/0.254	13.60	2.20	45.50*18.30
2/0	3	1330/0.254	16.60	2.20	51.00*20.00
3/0	3	1672/0.254	18.00	2.40	60*23
4/0	3	2116/0.254	19.8	2.65	65*25

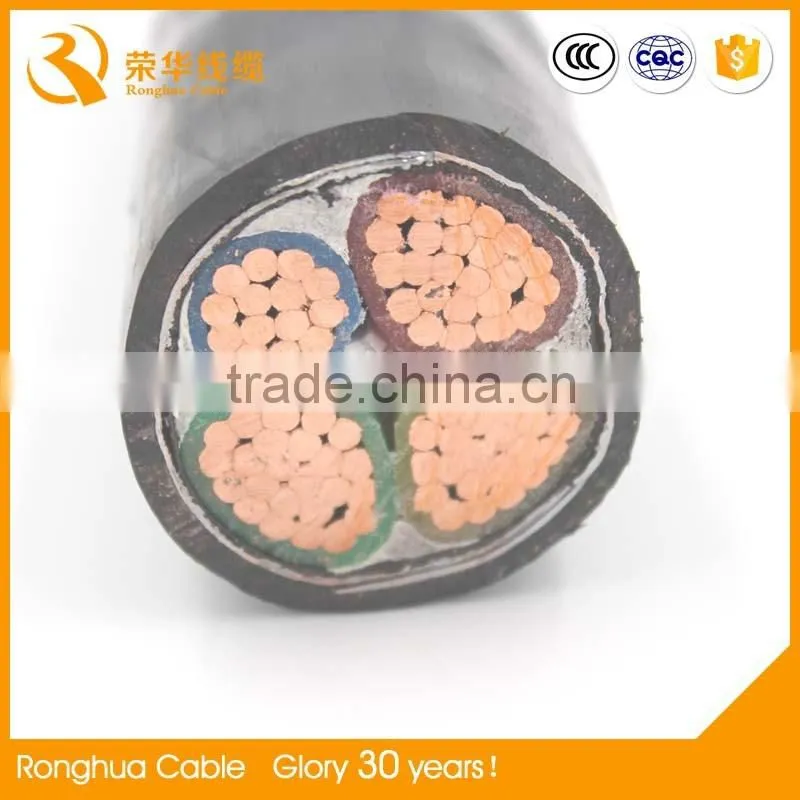

Low Voltage Power Cable

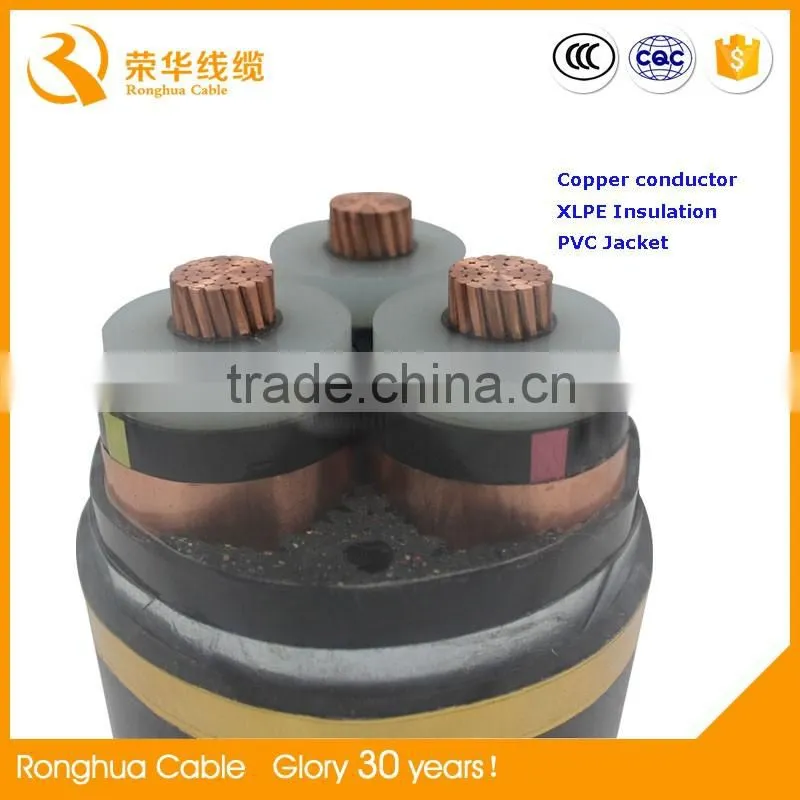

High Voltage Cable

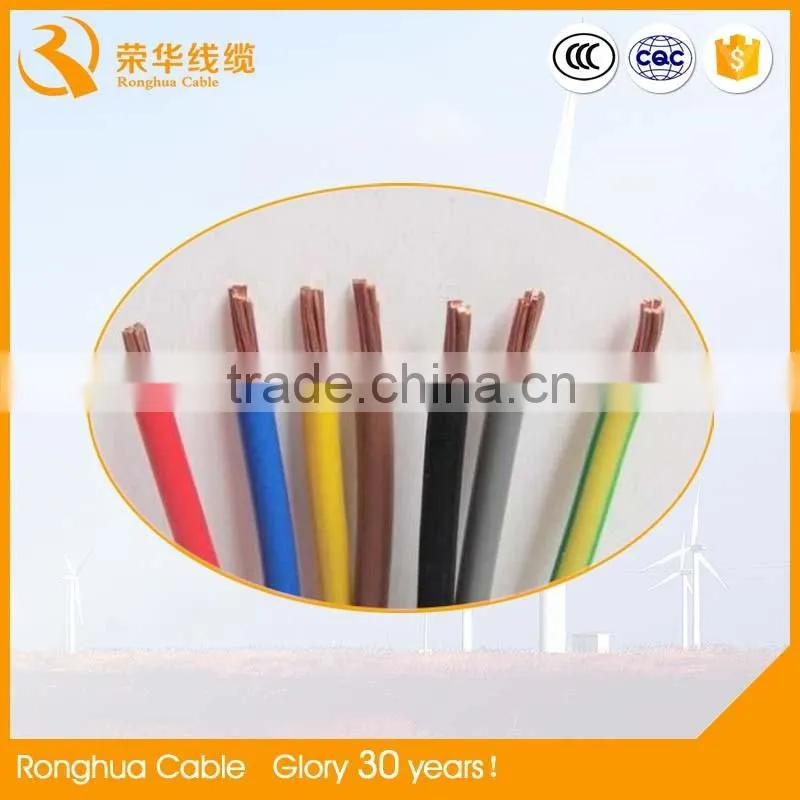

House wiring electric wire

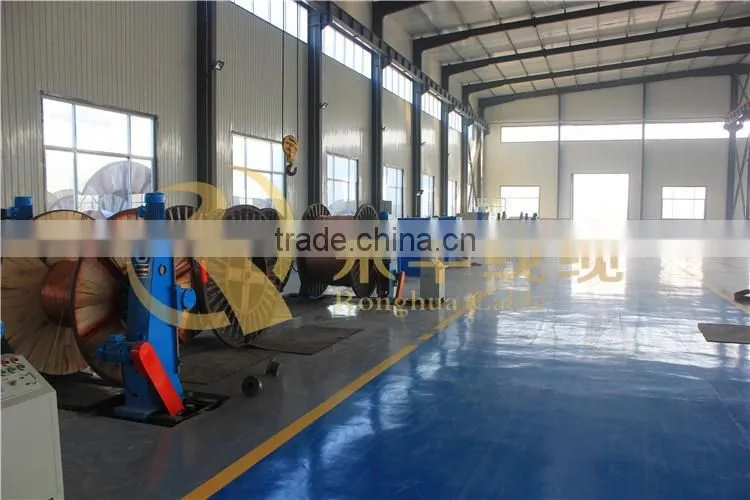

Our Company

Hebei Ronghua Wire And Cable Co.,LTD, a professional manufacture of various of Electric Power Cables, Rubber Sheath Flexible Cable, Housing Wiring Electric Wires for more than 30 years experience. Surely we could provide you the factory price, stable quality, professional service. For any information, please kindly contact us.

Certifications

Packing & Delivery

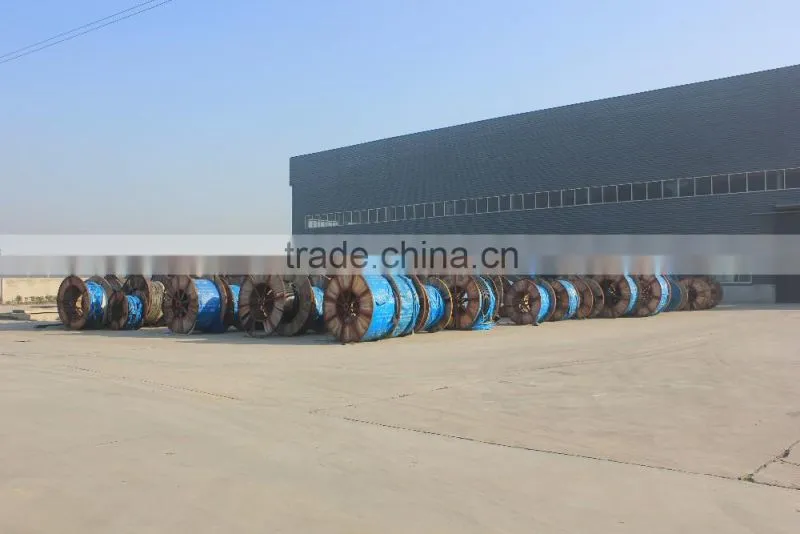

Packing

Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Delivery

Port: Tianjin, or other ports as per your requireents.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
