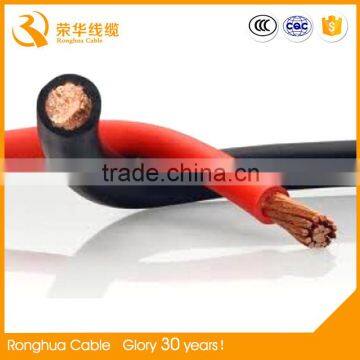

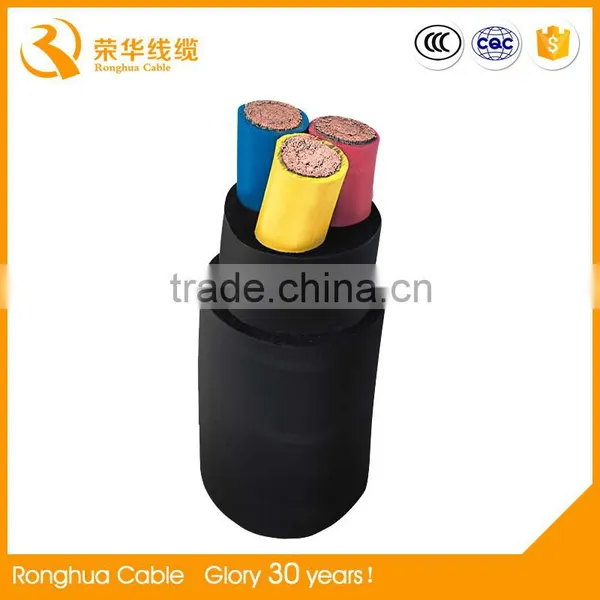

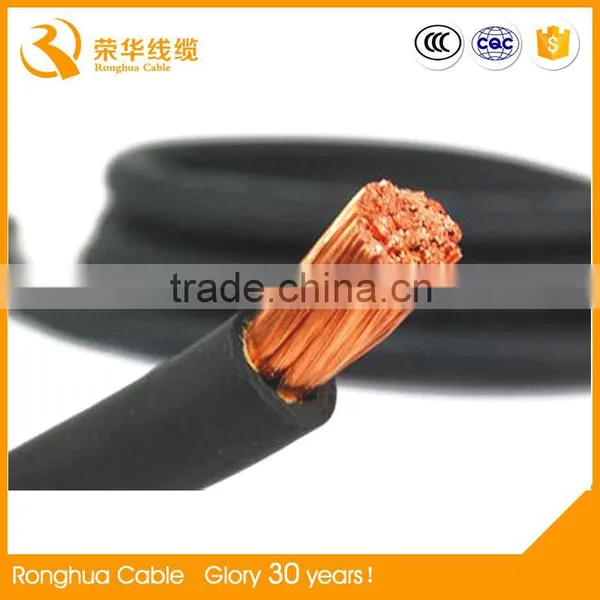

Soft Flexible HO5RN-F Rubber Cable
1. Products applications:
This product is suitable for connection with household appliances, electric tools and various mobile electrical equipments of rated voltage up to and including 450/750V.
2. Products standards: BS EN 50525-2-21
3. Products types & names:
--H05RR-F Ordinary rubber sheathed cord.
--H05RN-F Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord (1-4 cores).
--H07RN-F Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable.
4. Products characteristics:
--Long-term working temperature of cables: EPR insulated cables should not be higher than 65°C,EPT/EPDM insulated cables should not be higher than 90°C.
--Such cables are more flexible and easy to move electrical appliances.
| HAR Code | IEC | Description | Voltage Design | Cores |
| H05RR-F | 60245 IEC 53(YZ)/YZ | Oridinary rubber sheathed cord | 300/500V | 2~6 |
| H05RN-F | 60245 IEC 57(YZW)/YZW | Oridinary polychloroprene or other equivalent synthetic elastomer sheathed cord | 300/500V | 2~6 |
| H07RN-F | 60245 IEC 66(YCW)/YC | Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable | 450/750V | 1~5, 3+1/3+2/4+1 |
| H01N2-D | 60245 IEC 81(YH) | Rubber sheathed arc-welding electrode cable | 100/100V | 10-120 |
| 60245 IEC 82(YHF) | polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable | 100/100V | 10-120 |
2 Used in prot agriculture imigation system and illumination
3 Operation condition:
A Rated voltage: Uo/u450/750v
B Max. Permissible continuous operation temperature of conductor 65° C
C The bending radius of cable should not be less than 6 times of diameter of the cable
Standard: GB/T5013-2008
Rated voltage: 450V/750V
Color: Many colors optional or per order
Core: 1core, 2 core, 3 core, 4 core, 5 core, 3core+1core, 3core+2core, 4core+1core...
Cross-insectional area: 1mm2 to 240mm2
| Core and Size mm sq |
Stranding (Number of Strand/Strand Diameter | Thickness of Sheath mm | Nominal Overall Diameter mm | Approx. Weight kg/km |
| 1x1.5 | 30x0.25 | 0.8 | 6.0 | 49 |
| 1.2.5 | 50x0.25 | 0.9 | 6.6 | 63 |
| 1x4 | 56x0.30 | 1.0 | 7.6 | 92 |
| 1x6 | 84x0.30 | 1.0 | 8.3 | 115 |
| 1x10 | 80x0.40 | 1.2 | 10.7 | 189 |
| 1x16 | 126x0.40 | 1.2 | 12.0 | 260 |
| 1x25 | 196x0.40 | 1.4 | 14.1 | 369 |
| 1x35 | 276x0.40 | 1.4 | 15.8 | 500 |
| 1x50 | 396x0.40 | 1.6 | 18.3 | 689 |
| 1x70 | 360x0.50 | 1.6 | 20.7 | 918 |
| 1x95 | 475x0.50 | 1.8 | 23.4 | 1202 |
| 1x120 | 608x0.50 | 1.8 | 25.6 | 1489 |
| 1x150 | 756x0.50 | 2.0 | 28.3 | 1824 |
| 1x185 | 925x0.50 | 2.2 | 31.0 | 2202 |
| 1x240 | 1221x0.50 | 2.4 | 34.5 | 2847 |
| 1x300 | 1525x0.50 | 2.6 | 37.7 | 3495 |
| 1x400 | 2013x0.50 | 2.8 | 37.7 | 3495 |
| 1x500 | 1769x0.60 | 3.0 | 37.7 | 3495 |
| 1x630 | 2257x0.60 | 3.0 | 37.7 | 3495 |
Packaging:
Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping:
Port: Tianjin, or other ports as per your requireents.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
Certifications:
Other Wire and Cable Products:
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Any questions, please kindly contact us freely! We will reply you within 12 hours!
Contact Person: Amy
Email: amy(at)
Whatsapp: 0086-15831928466 ( wechat is workable).
QQ : 1700173666
