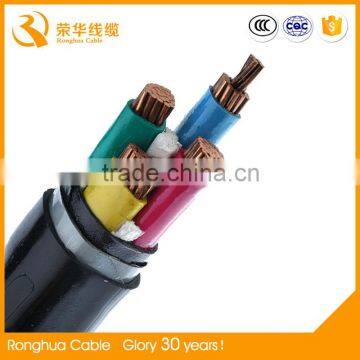

Low Voltage PVC Insulation SWA PVC covered 4 core underground power cable
Construction:
Circular stranded compacted plain copper conductor, extruded layer of cross-linkable semi-conducting screen, cross-linked polyethylene (XLPE) insulation, cross-linked extruded semi-conducting insulation screen, color tape, copper tape metallic screen, three cores assembled together with non-hygroscopic polypropylene filler, wrapped with binder tape, extruded black polyvinyl chloride (PVC) inner cover, armoured by galvanized thick steel wire, binder tape, PVC or PE over sheath.
Application:
- The cable can be used for power transmission and distribution line.
- The cable can be laid indoors, outdoors, in tunnel or in cable trench or dust and directly in the ground in switching stations, between stations and underground to overhead conversion.
- Permissible continuous loading operating temperature is 90℃
- The ambient temperature under installation shall not lower than 0℃
- Permission short circuit temperature shall be 250℃.
- The bending radius of cable shall not less than 15 times of the diameter of cable.
Standards:
International Standard: IEC 60502-2
China Standard: GB/T 12706.2
Other Standards can also be produced as request
We can customize various types of cable in accordance with your requirements
Model | Name |
YJV YJLV | CU or AL conductor ,XLPE/PVC insulated PVC sheathed electric cable |
YJV22 YJLV32 | Cu or Al conductor XLPE /PVC insulated steel tape armored ,steel wire armor PVC sheathed electric cable |
Attention: We can provide more info than above data. If needed, please kindly contact us.
The above are just some examples.
Packaging:
Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping:
Port: Tianjin, or other ports as per your requireents.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
1>. We’re a professional manufacturer for over 30 years
2>. High quality assurance with competitive price
3>. OEM & ODM are available
4>. Any of your feedback will be responded within 12 hours
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Welcome your inquiry of power cables, we will reply you within 12 hours!
