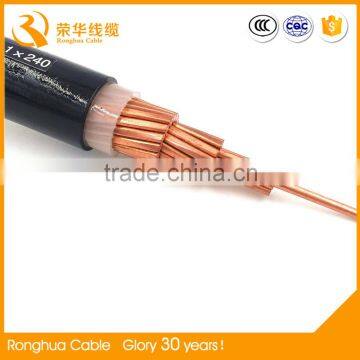

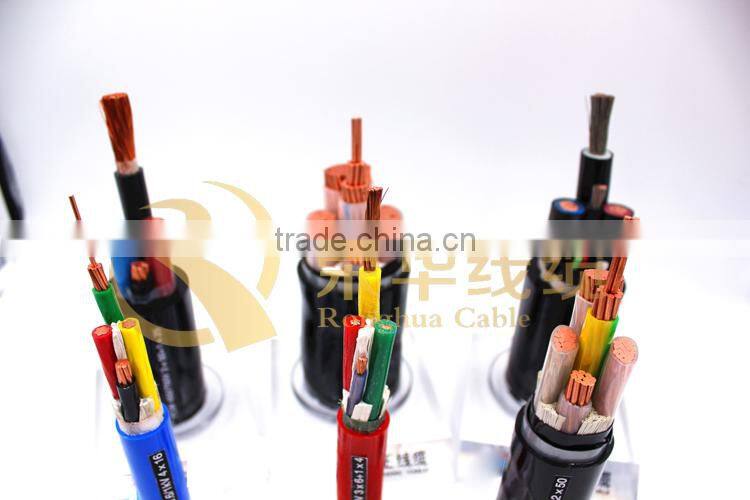

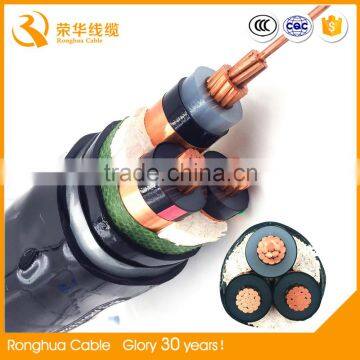

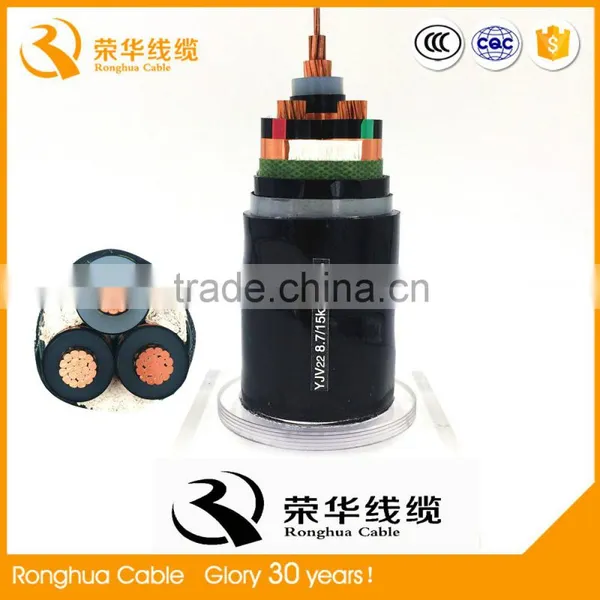

copper core pvc insulated 4 core armoured cable 120mm
1. Standard: According to Chinese national standard GB 12706 and GB12666.6(Equal to IEC60502 and IEC60331),also can do by standard of ASTM,BS,GB,DIN and AS/NZS or other standards as request.
2. Rated Voltage:0.6/1KV
3. Construction:
Conductor:Copper or Aluminium
Insulation:PVC
Inner sheath:PVC or PE
Armoured:Galvanized steel tape or galvanized steel wire
Outer Sheath:PVC or PE
NO. of cable cross: 1 core(Single core),2cores(Double cores),3cores, 4cores(4 equal-section-area cores OR 3 equal-section-area+1 small section area neutral core),5cores(5 3 equal-section-area cores+2 small area neutral cores OR 4 equal-section-area +1 small area neutral cores).We provide armored type and non-armored type for the cables stated above.
Also can do according to the customer's request.
4. Characters:
a.Max Long-time operating temperature of PVC insulated cable is 70°C
b.Installing temperature of cable should not be less than 0°C
c.Max short-circuit temperature is not exceed 160°C,Not more than5 Sec.
d.Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5. Description & Application:
TYPE |
Description of Cable |
Main Applications |
|
CU core |
AL core |
|
|
VV |
VLV |
Copper/Aluminium core,PVC insulated,PVC sheathed power cable |
Non-armoured PVC cable are suited for laying indoors,In cable trench,On cable racks and in pipes. Unable bear external pressures and tensions. |
VY |
VLY |
Copper/Aluminium core,PVC insulated,PE sheathed power cable |
|
VV22 |
VLV22 |
Copper/Aluminium core,PVC insulated,steel tape armored,PVC sheathed power cable |
Steel-tape armoured PVC cables are suited for vertical burial.Can bear moderate positive pressures,Unable bear tension forces. |
VV23 |
VLV23 |
Copper/Aluminium core,PVC insulated,steel tape armored,PE sheathed power cable |
|
VV32 |
VLV32 |
Copper/Aluminium core,PVC insulated,thin steel wire armored,PVC sheathed power cable |
Thin steel wire armoured PVC cables are used in case of great difference of levels or vertical installation and Can do vertical burial.Can bear moderate positive pressures and tension forces. |
VV33 |
VLV33 |
Copper/Aluminium core,PVC insulated,thin steel wire armored,PE sheathed power cable |
|
VV42 |
VLV42 |
Copper/Aluminium core,PVC insulated,thick steel wire armored,PVC sheathed power cable |
Thick steel wire armoured PVC cables are suited for vertical installation and can be laid water or sea-bottom.Can bear greater positive pressures and tension forces. |
VV43 |
VLV43 |
Copper/Aluminium core,PVC insulated,thick steel wire armored,PE sheathed power cable |
|
6. Advantages:
a. Excellent electric and mechanical characteristics
b. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
c. Simple in structure
d. Convenient to use
e. Light weight,perfect bending properties
Core NO. & Nominal Cross-section Area as reference:
No. of Core |
1 |
2 |
3 |
3+1 |
4 |
3+2 |
4+1 |
|
Section Area (mm2) |
4~500 |
2.5~500 |
2.5~300 |
4~300 |
2.5~300 |
2.5~300 |
4~300 |
NO. Of Cores
Rated voltage
Nominal thickness of insulation
Thickness of sheath
Diameter of conductor
Approx. Overall diameter
Max cable weight
Nominal cross sectional area of conductor etc.
All above can do as every different standards OR as your special request
