Hebei Ronghua Wire Cable Co,.LTD--- underground electrical armoured cable 5 core power cable 35mm 50mm 70mm 95mm 120mm 240mm power cable
Application:
This product is suitable for use in rated AC voltage (U0/U) 0.6/1kV system transmitting and distributing circuit.
Property for Use
It is far better than all property targets of PVC insulated power cable and has overcome the shortcomings of physical and chemical cross-linkage, and completely reaches or surpasses GB and IEC technical property value.
The allowed max .cable conductor work temperature is 90℃;urgent excess work temperature is 130℃ for short circuit(5s), max. conductor temperature is 250℃.
The environmental temperature for laying cable should be not less than 0℃. If laying under 0℃, the cable should be preheated.
The cable bend radius for single core should be not less than 12 times of overall cable diameter; for multi-core cable, not less than 10 times of overall cable diameter.
The current-carrying capacity is large and not limited by drop during laying .
Model , Name and Main Application ( power cable)
Model |
Name |
Main Application |
VV |
Copper conductor PVC insulated PVC sheathed power cable |
For laying indoors, in tunnel or cable trench, unable to bear extermal mechanical forces. Single core cable is not permissible to lay in magnetic duct |
VLV |
Aluminum conductor PVC insulated PVC sheathed power cable |
|
VY |
Copper conductor PVC insulated PE sheathed power cable |
|
VLY |
Aluminum conductor PVC insulated PE sheathed power cable |
|
VV22 |
Copper conductor PVC insulated steel tape armoured PVC sheathed power cable |
For laying indoors, in cable trench or direct in ground ,able to bear external mechanical forces, but unable to bear pulling force |
VLV22 |
Aluminum conductor PVC insulated Steel Tape Armoured PVC sheathed Power cable |
|
VV23 |
Copper conductor PVC insulated Steel Tape Armoured PE sheathed power cable |
|
VLV23 |
Aluminum conductor PVC insulated Steel Tape Armoured PE sheathed power cable |
|
VV32 |
Copper conductor PVC insulated Steel wire armoured PVC insulated power cable |
For laying indoors, in cable or direct in ground ,able to bear external mechanical forces, but unable to bear large pulling forces |
VLV32 |
Aluminum conductor PVC insulated steel tape armoured PVC sheathed power cable |
|
VV33 |
Copper conductor, PVC insulated steel wire armoured PE sheathed power cable |
|
VLV33 |
Aluminum conductor PVC Insulated Steel Wire Armoured PE sheathed power cable |
|
|
Note: The armoured single core cables is only used for D.C.system. As for A.C.system,nonmagnetic armored material should be applied | ||
Structure Size and technology date :
Attention: We can provide more info than above data. If needed, please kindly contact us.
The above are just some examples.
Besides of the above power cable specifcations, we can also supply the following cable:
1. 450/750V single core & multi core flexible house & building electric cable wire
2. 1kV PVC power cables
3. 1kV XLPE power cables
4. Medium voltage up to 35kV XLPE power cables
5. 66-500kV XLPE power cables
6. ABC cable overhead line
7. Control cable

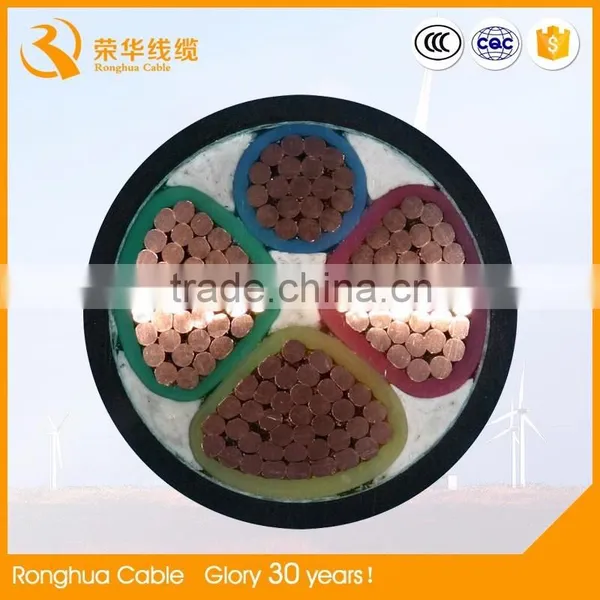

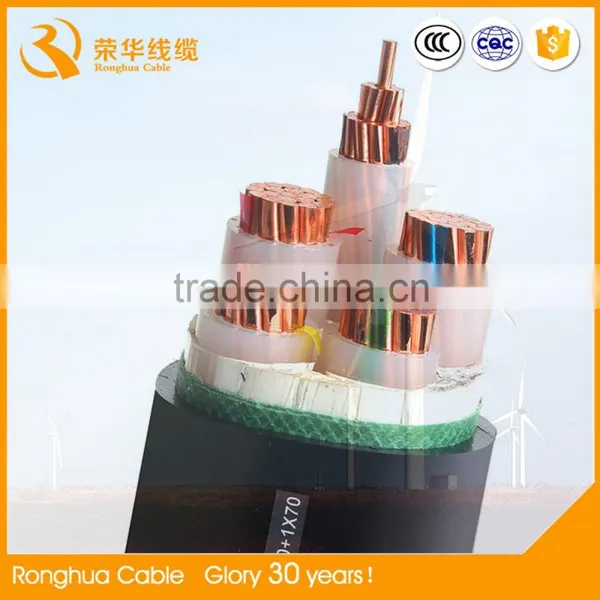

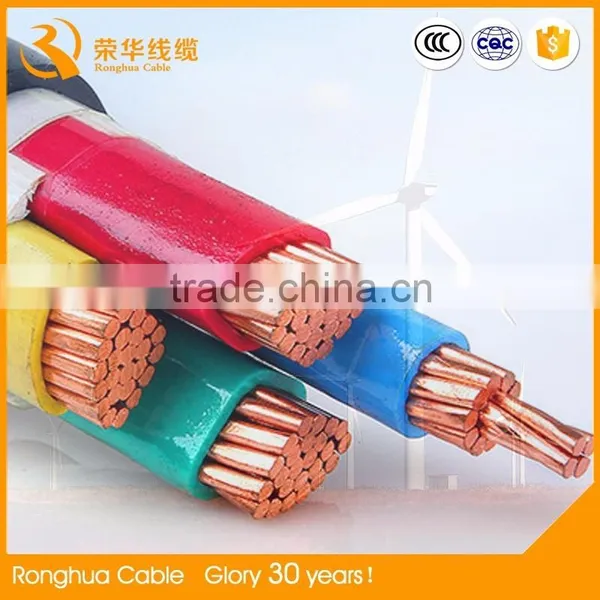

Picture electric power cable:

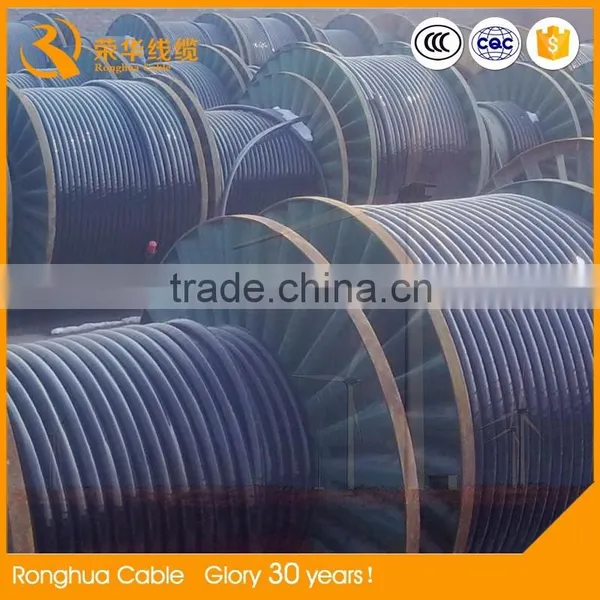

Packaging:
Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping:
Port: Tianjin, or other ports as per your requireents.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
1>. We’re a professional manufacturer for over 30 years
2>. High quality assurance with competitive price
3>. OEM & ODM are available
4>. Any of your feedback will be responded within 12 hours
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Welcome your inquiry of CU/XLPE/PVC electric power cable , we will reply you within 12 hours!
