Low Voltage Copper Conductor 1 Core Power Cable Manufacturers

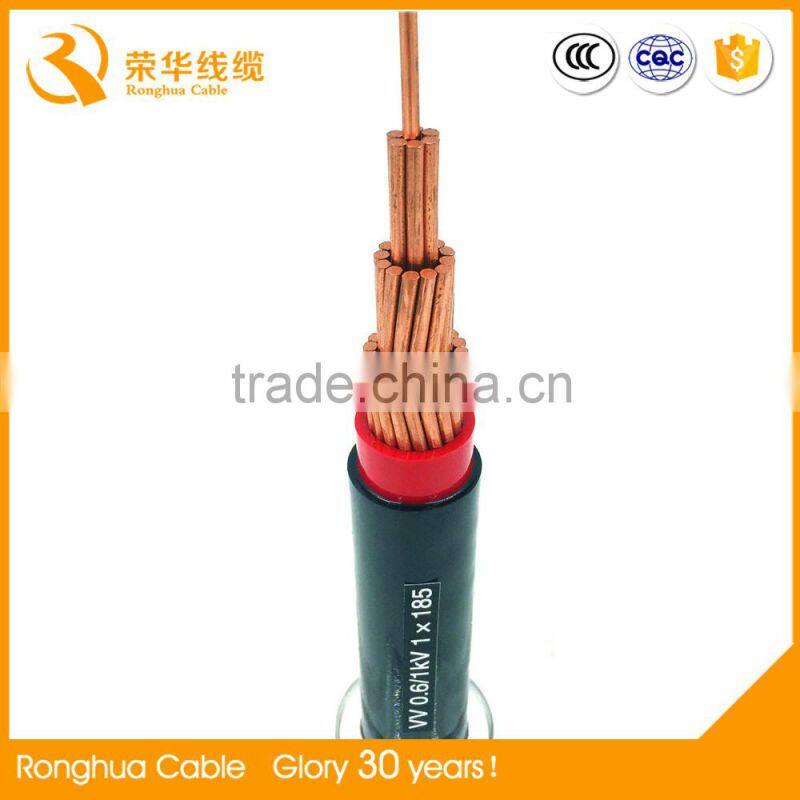

Low Voltage Copper Conductor 1 Core Power Cable Manufacturers thumbnail-1

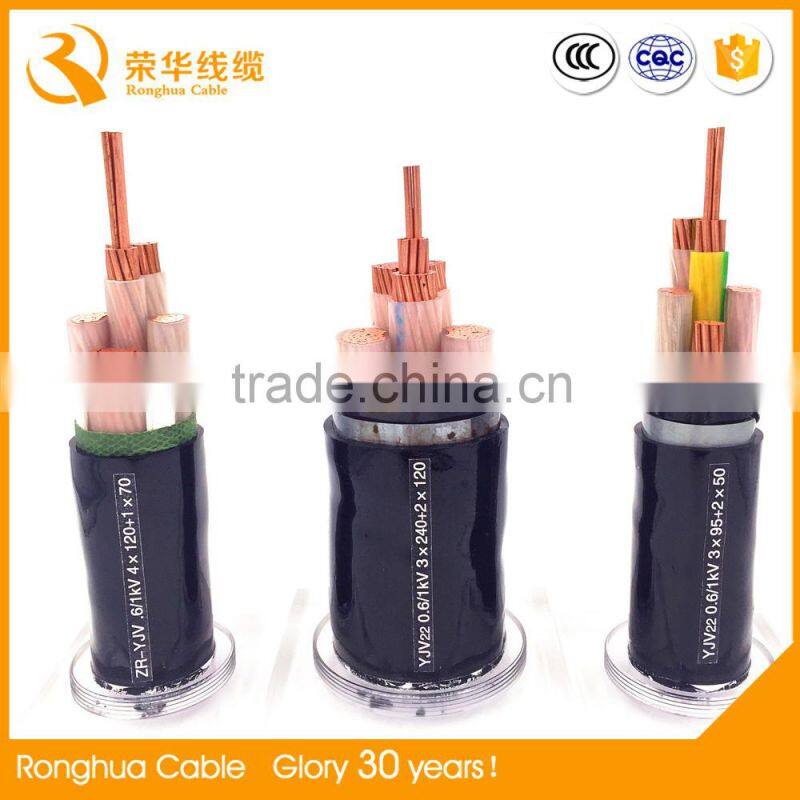

Low Voltage Copper Conductor 1 Core Power Cable Manufacturers thumbnail-2

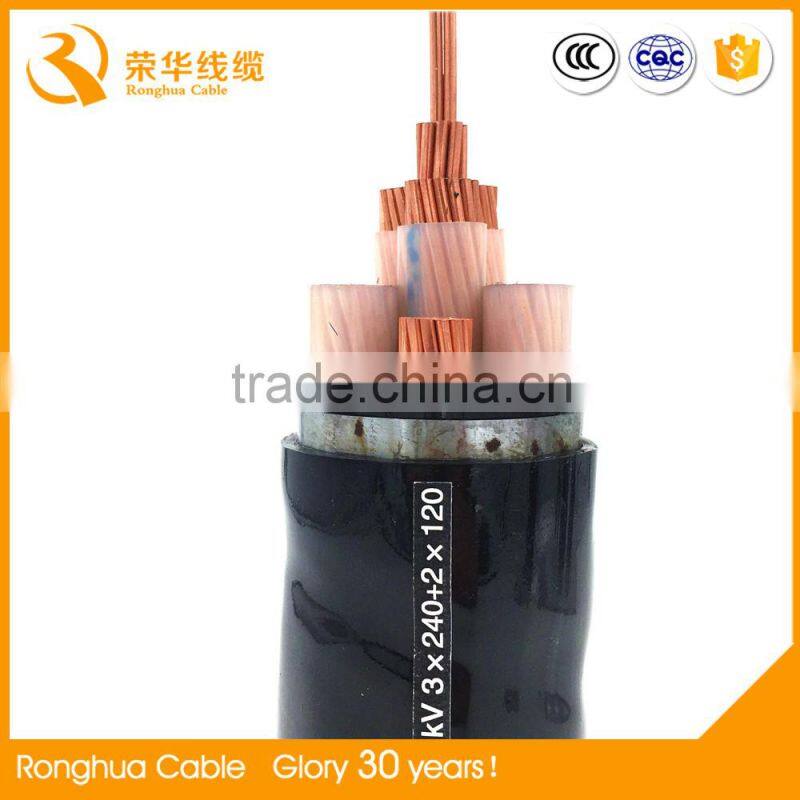

Low Voltage Copper Conductor 1 Core Power Cable Manufacturers thumbnail-3

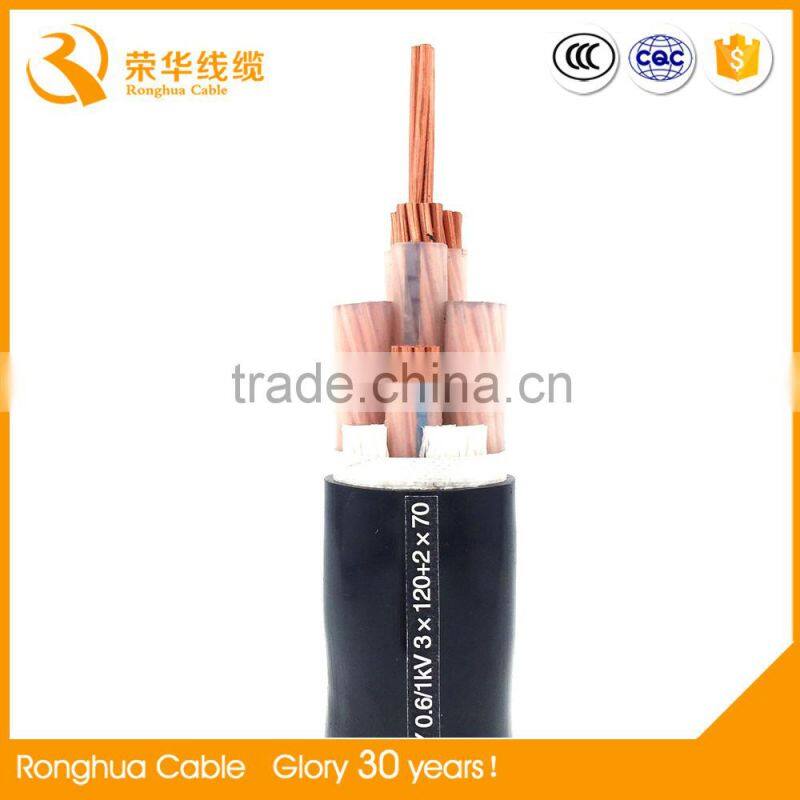

Low Voltage Copper Conductor 1 Core Power Cable Manufacturers thumbnail-4

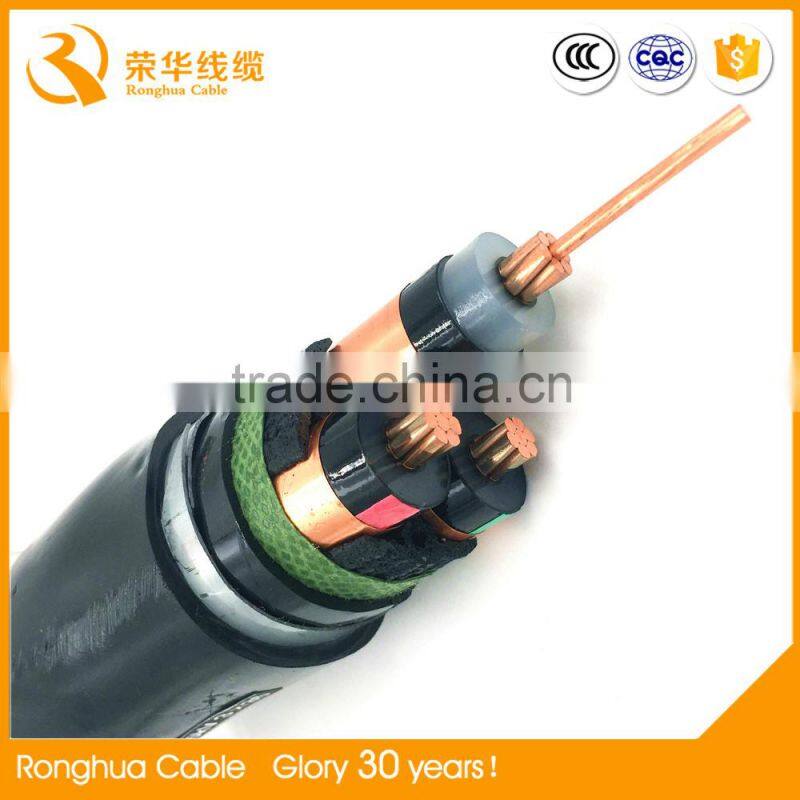

Low Voltage Copper Conductor 1 Core Power Cable Manufacturers thumbnail-5
Low Voltage Copper Conductor 1 Core Power Cable Manufacturers thumbnail-6

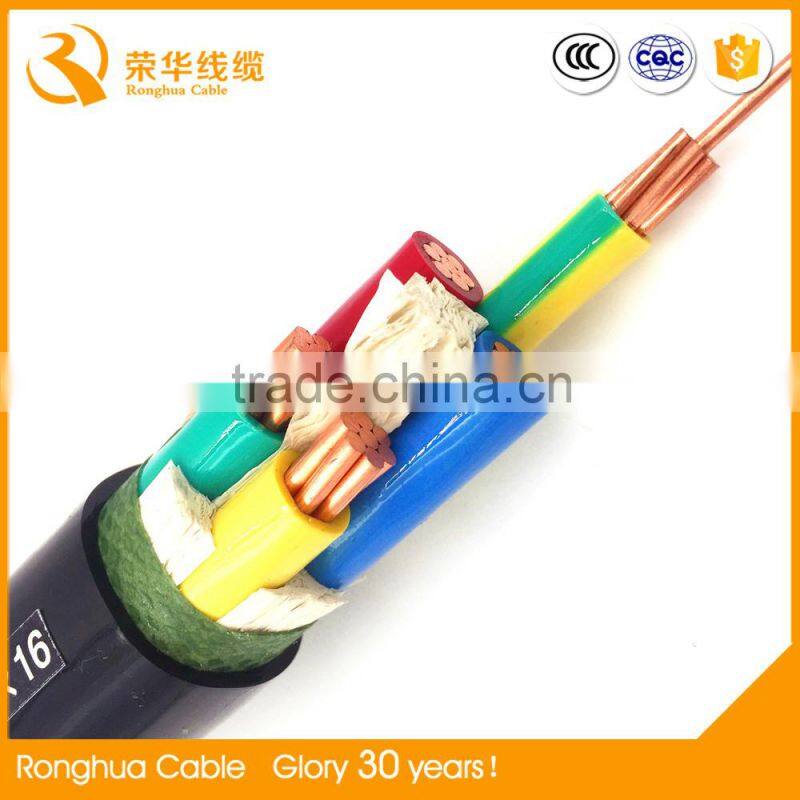

Low Voltage Copper Conductor 1 Core Power Cable Manufacturers photo-1
Low Voltage Copper Conductor 1 Core Power Cable Manufacturers photo-2
Low Voltage Copper Conductor 1 Core Power Cable Manufacturers photo-3
Low Voltage Copper Conductor 1 Core Power Cable Manufacturers photo-4
Low Voltage Copper Conductor 1 Core Power Cable Manufacturers photo-5

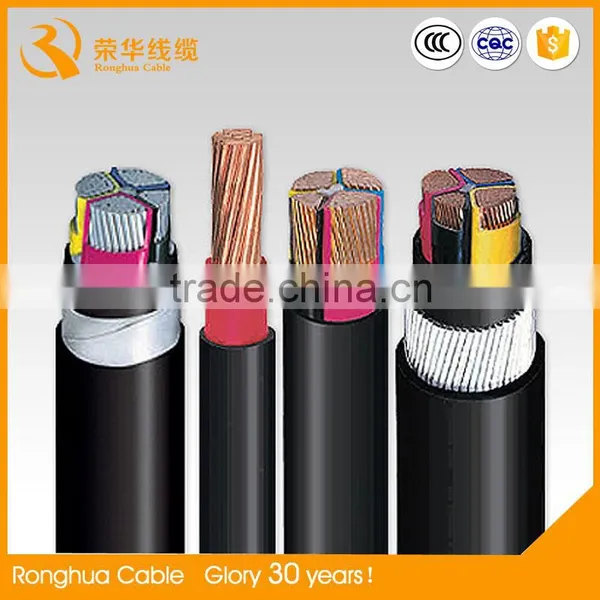

Low Voltage Copper Conductor 1 Core Power Cable Manufacturers photo-6
US$ 0.5 - 5 MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Ronghua
Model Number:
YJV , R2V ,AR2V,NYY ,NA2xy
Contact Supplier Request Quote Chat Now
Hebei Ronghua Wire And Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Ronghua
Model Number YJV , R2V ,AR2V,NYY ,NA2xy
Insulation Material XLPE
Type Low Voltage
Application Power Station
Conductor Material Copper
Jacket PVC
Reference Picture
Product Parameter

VV, VLV, ZRVV, ZRVLV Power cable

Rated voltage 0.6/1 kv PVC insulated PVC sheathed flame retardant and non-flame retardant power cable.

conductor nominal section
(mm2)
diameter of copper wire
(mm)
pvc insulation thickness
(mm)
pvc sheath thickness
(mm)
diameter of overall cable
(mm)
approx. weight of cable
(kg/km)
conductor d.c. resistance
(Ω/km)
working tempera-ture
≤(℃)
test voltage
(kv/
5min)
1*1.5
0.2
0.8
1.4
6.1
50.7
12.1
70
3.5
1*2.5
0.2
0.8
1.4
6.5
63.5
7.41
70
3.5
1*4
0.2
1.0
1.4
7.4
87.7
4.61
70
3.5
1*6
0.2
1.0
1.4
7.9
111
3.08
70
3.5
1*10
0.2
1.0
1.4
9.2
166.6
1.83
70
3.5
1*16
0.2
1.0
1.4
10.3
233.3
1.15
70
3.5
1*25
0.2
1.2
1.4
12.0
344.9
0.727
70
3.5
1*35
0.2
1.2
1.4
13.2
449.8
0.524
70
3.5
1*50
2.52
1.4
1.4
14.9
590
0.387
70
3.5
1*70
2.52
1.4
1.4
16.7
807
0.268
70
3.5
1*95
2.52
1.6
1.5
19.3
1102
0.193
70
3.5
1*120
2.52
1.6
1.5
20.9
1349
0.153
70
3.5
1*150
2.52
1.8
1.6
23.1
1654
0.124
70
3.5
1*185
2.52
2.0
1.7
25.6
2060
0.0991
70
3.5
1*240
2.52
2.2
1.8
28.8
2651
0.0754
70
3.5
1*300
2.52
2.4
1.9
31.9
3323
0.0601
70
3.5
1*400
2.52
2.6
2.0
35.5
4205
0.047
70
3.5
1*500
2.52
2.8
2.1
39.7
5359
0.0366
70
3.5
1*630
2.52
2.9
2.2
43.7
6707
0.0283
70
3.5
1*800
2.52
2.9
2.4
46.1
8064
0.0221
70
3.5
Packing & Shipping

Packing:

Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Shipping:


Port: Tianjin, or other ports as per your requirements.
Sea freight: FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

Contact

For more information, please kindly contact us freely!   Welcome your inquiry of power cable, please kindly inform us the section area, material, application, quantity you needed, so that we could quote accordingly.

Contact Person: Amy
Email： amy@
Skype:    you580231
Wechat: +8615831928466
Whatsapp : +8615831928466
Web:

Also you can reach me instantly via whatsapp +86-15831928466. Welcome your inquiry of electric power cable !!! We are sure any of your inquiry will get our prompt attention & reply!
