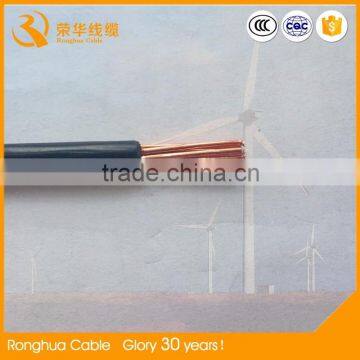

Stranded Copper Conductor PVC jacket braided electrical wire
Hebei Ronghua Wire And Cable Co,.LTD-- Stranded Copper Conductor PVC jacket braided electrical wire
The Details of Stranded Copper Conductor PVC jacket braided electrical wire
1. Rate Voltage: 300/500V, 450/750V
2. Max. working temperature: 70 °C , can be 90 °C ,105 °C as requirement
3. Insulation: PVC
4. Conductor: Class 1/2 Plain annealed copper wires,solid or stranded
5.Cross Section Areas: 0.75mm2~185mm2
6. Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable
7. Packing: 100m per roll, or as your request.
The Application of Stranded Copper Conductor PVC jacket braided electrical wire
Single Core PVC insulation Copper Conductor house wiring electical wire cable is used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.
Technical Data of Low Cost High Quality House Wiring Electrical Wire 2.5mm
|
Nominal section (mm2) |
Number/diameter of core (mm) |
Maximum outer diameter (mm2) |
Reference weight (Kg/km) |
Conductor resistance at 20°C ≤(Ω/km) |
||
copper |
aluminum |
aluminum |
copper |
|||
1.5(A) |
1/1.38 |
3.3 |
20.3 |
----- |
----- |
12.1 |
1.5(B) |
7/0.52 |
3.5 |
21.6 |
----- |
----- |
12.1 |
2.5(A) |
1/1.78 |
3.9 |
31.6 |
17 |
11.80 |
7.41 |
2.5(B) |
7/0.68 |
4.2 |
34.8 |
----- |
----- |
7.41 |
4(A) |
1/2.25 |
4.4 |
47.1 |
22 |
7.39 |
4.61 |
4(B) |
7/0.85 |
4.8 |
50.3 |
------ |
----- |
4.61 |
6(A) |
1/2.76 |
4.9 |
65 |
29 |
4.91 |
3.08 |
6(B) |
7/1.04 |
5.4 |
71.2 |
---- |
---- |
3.08 |
10 |
7/1.35 |
7.0 |
119 |
62 |
3.08 |
1.83 |
16 |
7/1.70 |
8.0 |
179 |
78 |
1.91 |
1.15 |
25 |
7/2.04 |
10.0 |
281 |
118 |
1.20 |
0.727 |
35 |
7/2.52 |
11.5 |
381 |
156 |
0.868 |
0.524 |
50 |
19/1.78 |
13.0 |
521 |
215 |
0.641 |
0.387 |
70 |
19/2.14 |
15.0 |
734 |
282 |
0.443 |
0.268 |
95 |
19/2.52 |
17.5 |
962 |
385 |
0.320 |
0.193 |
120 |
37/2.03 |
19.0 |
1180 |
431 |
0.253 |
0.153 |
150 |
37/2.25 |
21.0 |
1470 |
539 |
0.206 |
0.124 |
185 |
37/2.52 |
23.5 |
1810 |
666 |
0.164 |
0.0991 |
240 |
61/2.25 |
26.5 |
2350 |
857 |
0.125 |
0.0754 |
electrical cable wire Pakage:
100 meters per roll, then PE film, then carton or woven bag. or as customers' request.
Our Advantage:
- More than 30 years experience.
- OEM & ODM service is acceptable.
- Good quality with factory price
- Can print words on the wire
Hebei Ronghua Wire Cable Co,.Ltd is a special manufacture of wire and cables with more than 30 years experience. We are Factory Manufacturing wire and cables, Competitive price, Excellent Quality, Shortly Delivery Time, Kindly Service.
Certifications: (Electrical Wire Prices)
Other related wire and cables:
If you have any questions of Stranded Copper Conductor PVC jacket braided electrical wire , please kindly contact us freely! We will reply you within 12 hours!
Contact Person: Amy
Contact Email: amy@
Contact QQ: 1700173666
Contact Whatsapp: 0086-15831928466
