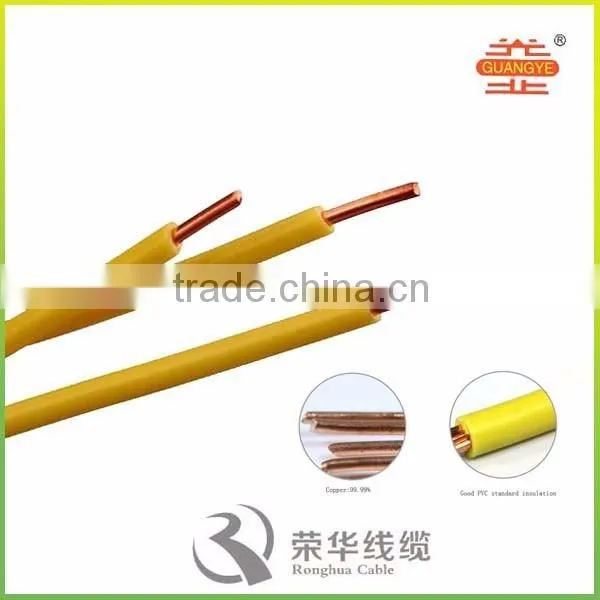

Copper Conductor PVC insulation electrical cable wire 10mm
Hebei Ronghua Wire And Cable Co,.LTD--Copper Conductor PVC insulation electrical cable wire 10mm
The Details of Copper Conductor PVC insulation electrical cable wire 10mm
1. Rate Voltage: 300/500V, 450/750V
2. Max. working temperature: 70 °C , can be 90 °C ,105 °C as requirement
3. Insulation: PVC
4. Conductor: Class 1/2 Plain annealed copper wires,solid or stranded
5.Cross Section Areas: 0.75mm2~185mm2
6. Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable
7. Packing: 100m per roll, or as your request.
The Application of Copper Conductor PVC insulation electrical cable wire 10mm
Single Core PVC insulation Copper Conductor house wiring electical wire cable is used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.
Technical Data of the Copper Conductor PVC insulation electrical cable wire 10mm
|
Nominal section (mm2) |
Number/diameter of core (mm) |
Maximum outer diameter (mm2) |
Reference weight (Kg/km) |
Conductor resistance at 20°C ≤(Ω/km) |
||
copper |
aluminum |
aluminum |
copper |
|||
1.5(A) |
1/1.38 |
3.3 |
20.3 |
----- |
----- |
12.1 |
1.5(B) |
7/0.52 |
3.5 |
21.6 |
----- |
----- |
12.1 |
2.5(A) |
1/1.78 |
3.9 |
31.6 |
17 |
11.80 |
7.41 |
2.5(B) |
7/0.68 |
4.2 |
34.8 |
----- |
----- |
7.41 |
4(A) |
1/2.25 |
4.4 |
47.1 |
22 |
7.39 |
4.61 |
4(B) |
7/0.85 |
4.8 |
50.3 |
------ |
----- |
4.61 |
6(A) |
1/2.76 |
4.9 |
65 |
29 |
4.91 |
3.08 |
6(B) |
7/1.04 |
5.4 |
71.2 |
---- |
---- |
3.08 |
10 |
7/1.35 |
7.0 |
119 |
62 |
3.08 |
1.83 |
16 |
7/1.70 |
8.0 |
179 |
78 |
1.91 |
1.15 |
25 |
7/2.04 |
10.0 |
281 |
118 |
1.20 |
0.727 |
35 |
7/2.52 |
11.5 |
381 |
156 |
0.868 |
0.524 |
50 |
19/1.78 |
13.0 |
521 |
215 |
0.641 |
0.387 |
70 |
19/2.14 |
15.0 |
734 |
282 |
0.443 |
0.268 |
95 |
19/2.52 |
17.5 |
962 |
385 |
0.320 |
0.193 |
120 |
37/2.03 |
19.0 |
1180 |
431 |
0.253 |
0.153 |
150 |
37/2.25 |
21.0 |
1470 |
539 |
0.206 |
0.124 |
185 |
37/2.52 |
23.5 |
1810 |
666 |
0.164 |
0.0991 |
240 |
61/2.25 |
26.5 |
2350 |
857 |
0.125 |
0.0754 |
electrical cable wire 10mm Pakage:
100 meters per roll, then PE film, then carton or woven bag. or as customers' request.
Our Advantage:
- More than 30 years experience.
- OEM & ODM service is acceptable.
- Good quality with factory price
- Can print words on the wire
Hebei Ronghua Wire Cable Co,.Ltd is a special manufacture of wire and cables with more than 30 years experience. We are Factory Manufacturing wire and cables, Competitive price, Excellent Quality, Shortly Delivery Time, Kindly Service.
Certifications: (Electrical Wire Prices)
Other related wire and cables:
If you have any questions of the Copper Conductor PVC insulation electrical cable wire 10mm , please kindly contact us freely! We will reply you within 12 hours!
