Type KVV or ZR-KVV 450/750V copper conductor PVC insulated and sheathed control cable nominal cross section area 0.75-2.5mm2
Our company:Hebei Ronghua Wire And Cable Co.,Ltd----Welcome to chat with us!
1 Product name: Type KVV or ZR-KVV 450/750V copper conductor PVC insulated and sheathed control cable nominal cross section area 0.75-2.5mm2
2 Color: black,white,red,blue,green,gray,etc
3 Test voltage: NA
4 Application:
5 Use features: Installation temperature not lower than 0℃,and the bending radius should not be less than 10 times of outer dismeter of cable;
The long-time working temperature of cable should not be higher than 70℃;
When core is in short-circuit(max 5s)the temperature should not exceed 160℃.
6 Nominal cross section area of conductor: 14-61* 0.75-6mm2
7 Conductor: copper conductor
8 Insulation material: pvc insulation and sheath
9 Core: 14 core up to 61 core or other
10 Test voltage: NA
11 Rated voltage: 450/750v low voltage
12 Insulation thickness: 0.6-0.8mm
13 Inner sheath thickness: NA or according the requirements

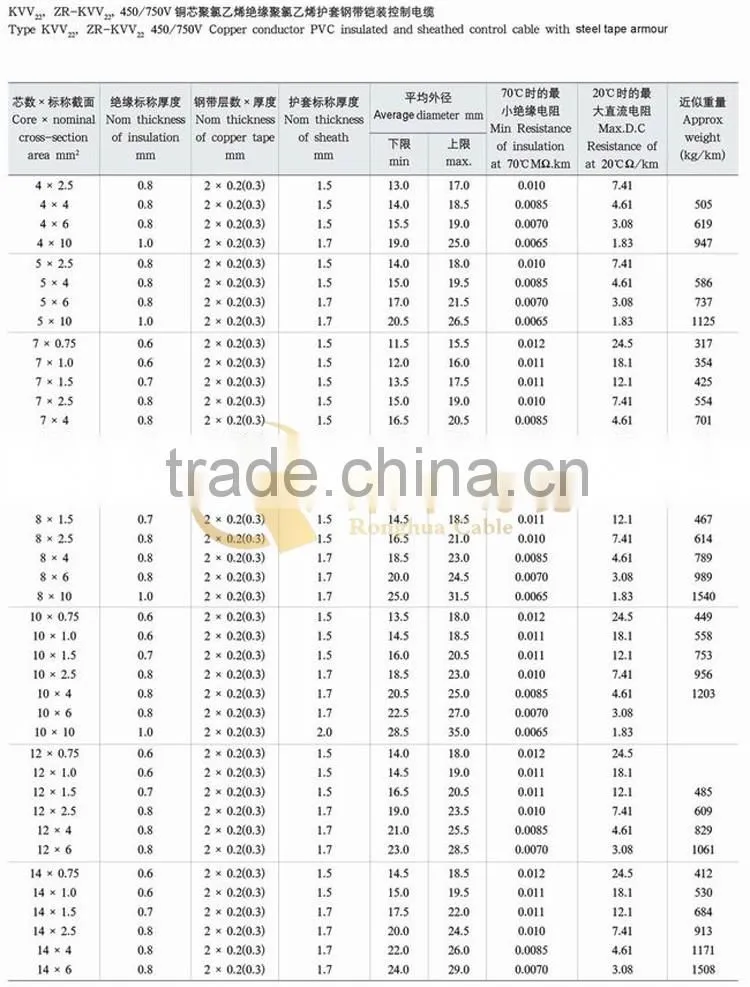

14 Armour: can be armored with steel tape if needed
15 Steel tape thickness: 2*0.2/0.3mm
16 Sheath thickness: 1.5mm-1.7mm
17 Approx.overrall/average diameter of cable: 12.0-37.5mm
18 Approx weight of cable: copper conductor 238-2306kg/km
19 Conductor resistance at 20℃: copper conductor ≤3.08-24.5Ω/km
20 Other product describtion: as follows
Packaging
Normally we would be conventional packaging.
The can be packaged wrapping around big wheels(we call them wooden drums),like this!
They can be set into a small circle,like this!
If you need, we can also package according to the requirements!
Shipping
Port: Tianjin Port
Mode of transport: ship,other economical and convenient way,or according to the order
1 More than 30 years experience;
2 OEM & ODM service is acceptable;
3 Good quality with factory price;
4 Can print words on the wire.
5 Other reasonable requirements.
Hebei Ronghua Wire And Cable Co.,Ltd is located in western of Cangzhou of Hebei province with convenient transportation and mailing.
Our company was established in 1984,covering an area of 60,000 square meters and owing enormous potentiality .The quality of our commodities can be guaranteed reliably with advanced equipments. What’s more, it’s more than once to be conferred an honorary title.
The main commodities are as follows: rubber jacketed flexible cable, welding cable, waterproof cable, bare conductor, mining cable, shipboard cable, high voltage cable, fire resistant cable, oil-resistant cable, flame retardant, etc. It’s also can be designed and produced according to requirements of costumers.
Our products has gained the China National Compulsory Product Certification.
High quality, reasonable price and good service would meet your satisfactions. Quanxi Zhao, our Managing director, is willing to forge ahead hand in hand, and create the brilliancy together.
Our advantage
1 Excellent quality;
2 Sophisticated technology;
3 Competitive price;
4 Short delivery time;
5 Passionate service.
Certificates
If you have any question about wire and cable,please kindly contact us freely!We will reply you as soon as possible!
