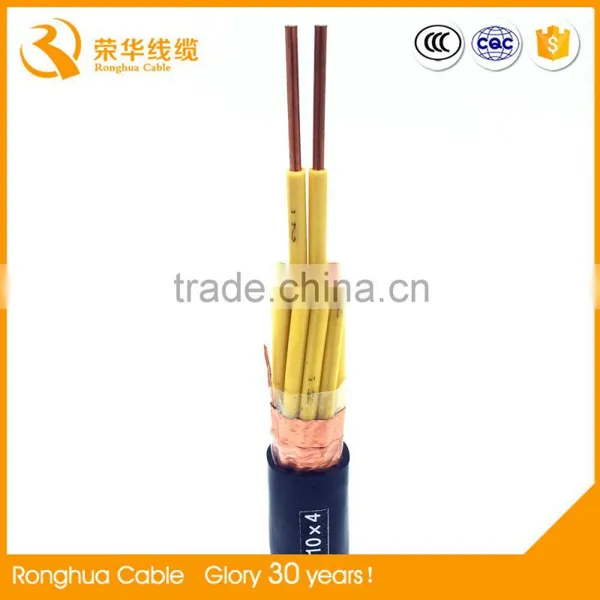

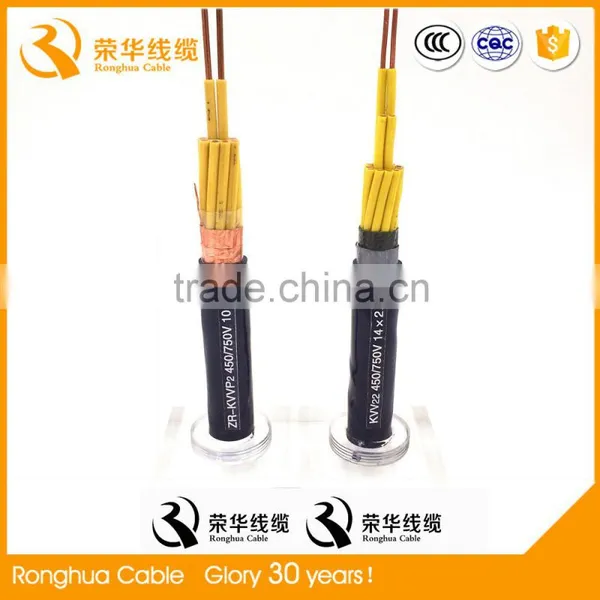

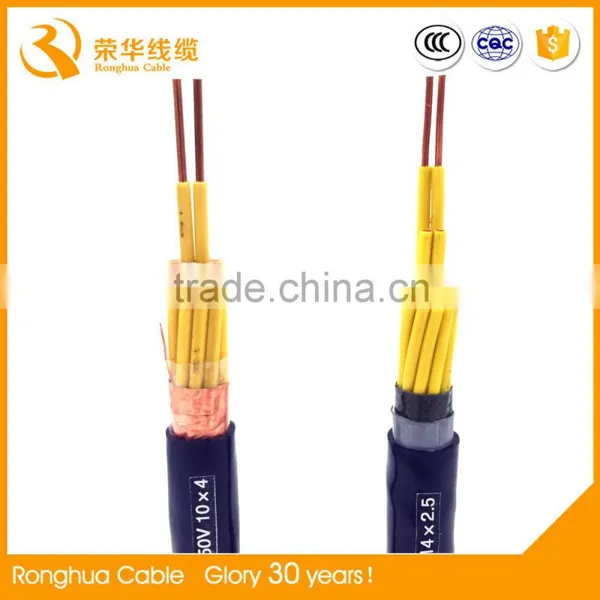

PVC Insulated Flexiblle Control Cable Price
Brief Introduction for control cable
Control cable is used as power and connecting cables in mechanical engineering for tooling machinery, control unit,transportation equipment, conveyor and assembly lines as well as in plant construction under
the circumstance that the rated voltage is up to450/750V AC.
Character and Relevant Parameters
1. Long-term service temperature of the cable conductor: 70 ℃
2. Rated voltage: 450/750V
3. Cable lying temperature ≥0 ℃
4. Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61
5. Minimun bending radius:Non armored ≥ out diameter of cable 6 timesArmored layer or copper tape
shielded ≥ outerdiameter of cable 12 timesShielded layer soft cable ≥ outer diameter of cable 6 times.The long-term working temperature of the conductor wire core is from 70 ℃ to 95 ℃, while the laying temperature is not lower than 0 ℃.
The permissible bending radius of the cable as below:
No-armored cable should be not less than 6 times of cable diameter;
Armored or copper tape screened cable should be not less than 12 times of cable diameter;
Shielding flexible cable, not less than 6 times of cable diameter
Control cable refers to equipment instrument power/signal control cable
On behalf of the model:KVV KYJV/other instrument line and so on
Eecutive standard:GB/T 9330-2008.
Specification for control cable
1. Advanced process equipment
2. Competitive price and high quality
3. Excellent after-sale service
4. Attractive design and various styles
5. Powerful technology R&D team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Have a good reputation in the domestic and overseas.
