Wire and Cable Tensile Tester
Purpose
This Wire and Cable Tensile Tester is designed for conduct tensile, compression, bending, shearing, bending strength, peeling, tearing and other tests for rubber, plastic, leather, steel wire and plate, spring, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other metal or nonmetal materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.

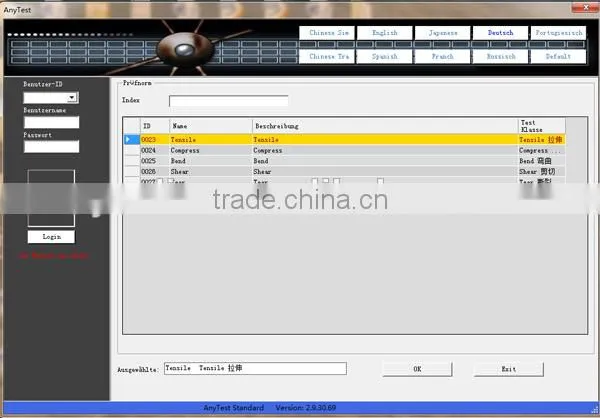

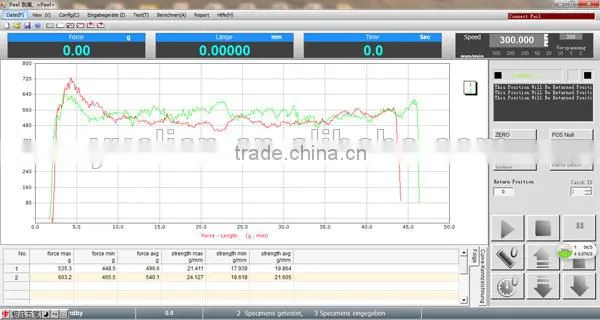

Software Function
Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers; can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.
Specification
Capacity |
1KN, 2KN, 5KN, 10KN, 20KN, 50KN, 100KN, 200KN(can select double capacities preparation) |
Display |
Computer display mode |
Force Resolution |
1/250,000 |
Force Accuracy |
≤±0.5% |
Stroke Resolution |
0.005mm |
Control Mode |
All computerized operation mode |
Test Stroke |
1000mm |
Test Width |
550mm |
Test Speed |
0.5~500mm/min, can set by computer, with up & downfast adjustment button of grips |
Force Unit Switch |
Kgf, N, Ibf, g, ton, Mpa |
Stop Mode |
Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function |
Machine Dimension |
92×75×199cm(W×D×H) |
Machine Drive |
Servo motor drive, synchronous wheel and precision ball screw drive |
Power |
1500W |
Machine Weight |
Approx 450 kg |
Power Supply |
220V 50/60HZ 10A |
Standard Device |
1 set of grips, computer software, USB computer connection wire |
Optional |
Personal computer |
More details of the Wire and Cable Tensile Tester ,please feel free conatct us
