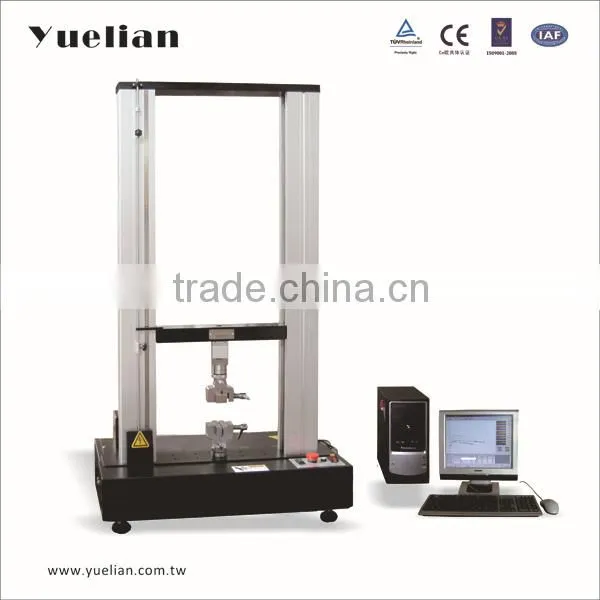

YL-1210 Hot sale compression tensile test machine price

compression tensile test machine

Purpose

This compression tensile test machine  is designed for conduct tensile, compression, bending, shearing, bending strength, peeling, tearing and other tests for rubber, plastic, leather, steel wire and plate, spring, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other metal or nonmetal materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.

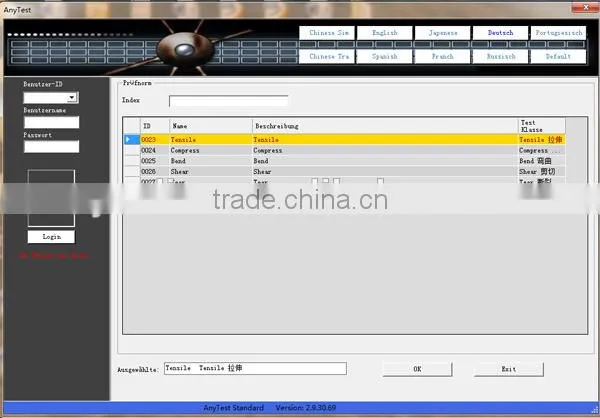

Software Function

Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers; can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.

Specification

Capacity: 10N,20N,50N,100N,200N,500N,1KN,2KN,5KN(two capacities is available)

Force resolution: 1/120,000

Force accuracy: ≤±0.5%

Travel resolution: 0.005mm

Control mode: Display control or computer control

Stroke(w/o grips): 350mm

Test space: 600mm×600mm

Test speed: 0.5~500mm/min

Force unit conversion:kgf,N,Ibf,g,ton,Mpa

Stop mode: over-load stop,emergency stop,specimen broken automatic stop,top and bottom limitation automatic stop,automatic reset function

Machine Dimension: 96×45×97cm(W×D×H)

Machine Weight: approx.80kgs

Motor: servo motor drive,synchronizing wheel and precision balls screw driving

Power: 400W

Power supply: 220V 50/60HZ 10A

Standard accessories: a set of grips,english operation manual.

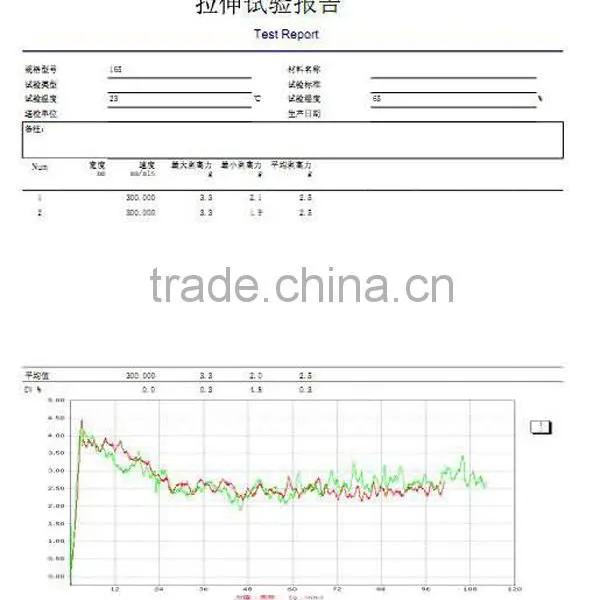

Test Report

Exhibitions

Factory Shop Pictures
