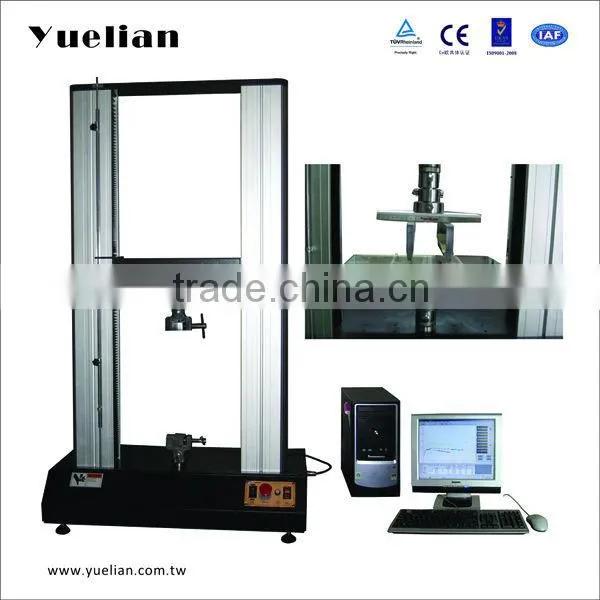

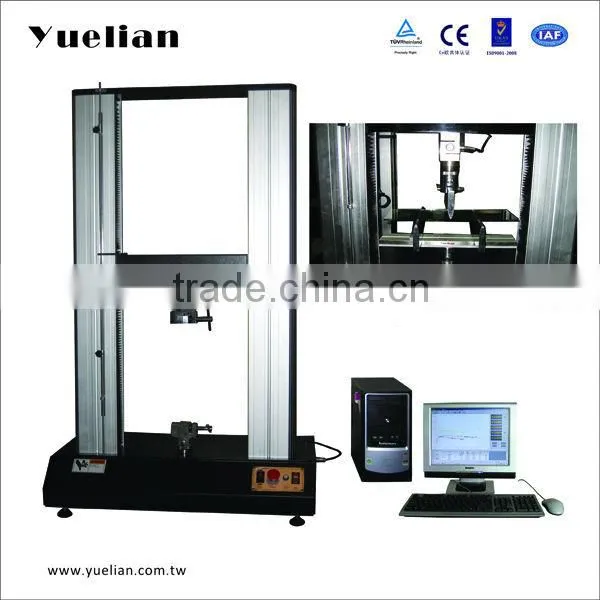

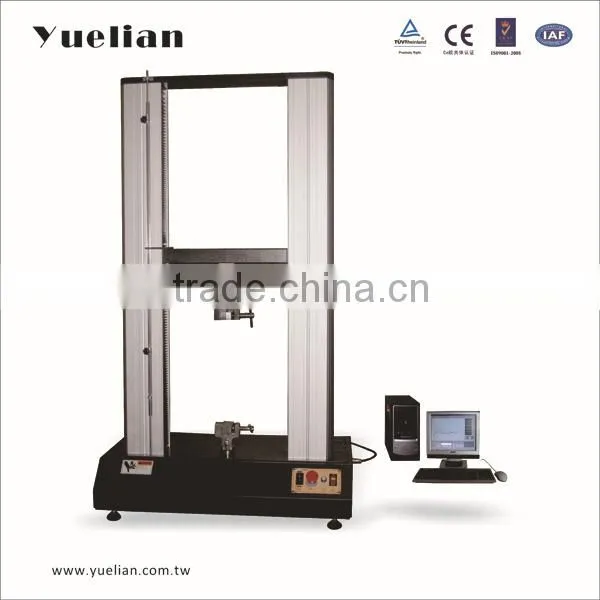

rubber Three points bending Testing Machine YL-1123
Application:

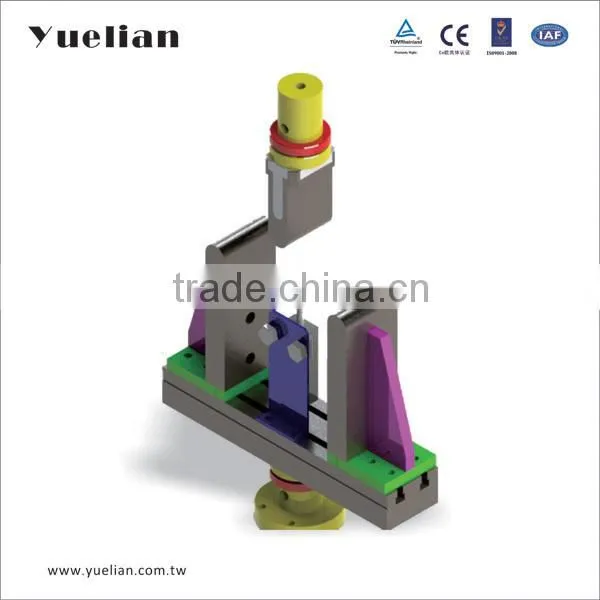

It selects various clamps and smelt tool, colorful liquid crystal display, light touch switch; connected computer can obtain point, and conduct various data analyses, printout. Software has powerful functions, suitable used for the industries of metal, steel products, aviation, rubber plastic, cable, shoes, leather, chemicals and so on.
Specification:
Capacity Option |
5, 10, 20, 50, 100, 200, 500, 1000, 2000KG(select one kind) |
Force Resolution |
1/250,000 |
Force Accuracy |
≤±0.5% |
Stroke Resolution |
0.005mm |
Test Stroke |
700mm, without grips |
Test Width |
350mm |
Test Speed |
0.5~500mm/min |
Force Unit Switch |
Kgf, g, N, kn, lbf, TON (switchable) |
Stop Method |
Overload Stop, specimen damage stop, emergency stop button, upper&lower limit stop, over stroke protection |
Control Method |
All computerized operation control |
Machine Dimension |
95×58×151 CM(W×D×H) |
Machine Weight |
Approx 140KG |
Power |
AC 220V 50/60HZ 4A |
Standard Device |
One set of grips, computer connection wire, test software CD, English operation manual. |
