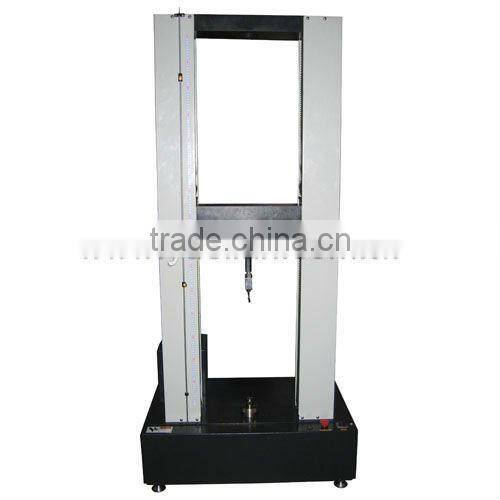

CE,Rohs Certification Spring Tensile Testing Machine

CE,Rohs Certification Spring Tensile Testing Machine thumbnail-1
CE,Rohs Certification Spring Tensile Testing Machine photo-1
US$ 1,000 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
yuelian
Model Number:
YL-1150
Contact Supplier Request Quote Chat Now
Guangdong Yuelian Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name yuelian
Model Number YL-1150
Power Other, Electronic, 1KW
Usage Universal Testing Machine

    spring tensile testing machine (YL-1150)





Purpose:



Tensile tester is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.



Software Function:



Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers; can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.



Safety Device:



Stroke protection: Machinery, computer double protection, prevent over preset

Force protection: system setting

Emergency stop device: Handling emergencies



Software Functions:



1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7. With many units of measurement, the metric system and british system can switch;

8. Have automatic calibration function;

9. Have user-defined test method function

10. Have test data arithmetic analysis function

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;

12.  Can test tensile, compression, peel, fatigue and so on



Specification:



Capacity

1KN,2KN,5KN,10KN,20KN,50KN,100KN (can select double capacities preparation)

Display

Computer display mode

Force Resolution

1/250,000

Force Accuracy

≤±0.5%

Stroke Resolution

0.005mm

Control Mode

All computerized operation mode

Test Stroke

1000mm

Test Width

550mm

Test Speed

0.5~500mm/min,  can set by computer, with up & down fast adjustment button of grips

Force Unit Switch

Kgf, N, Ibf, g, ton, Mpa

Stop Mode

Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function

Machine Dimension

92×75×199cm(W×D×H)

Machine Drive

Servo motor drive, synchronous wheel and precision ball screw drive

Power

1KW

Machine Weight

Approx 800kg

Power Supply

220V 50/60HZ 10A

Standard Device

1 set of grips, computer software, USB computer connection wire

Optional

Personal computer
