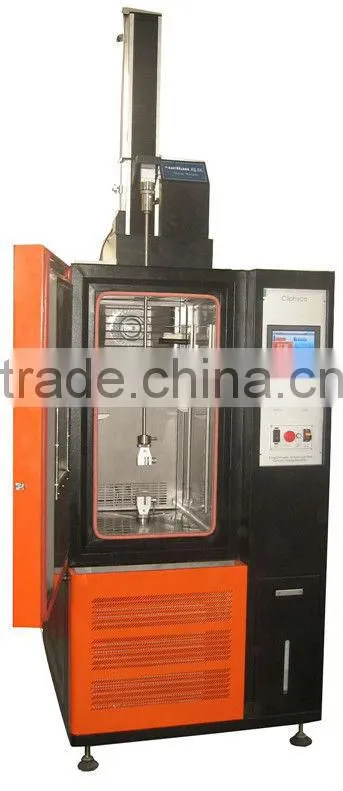

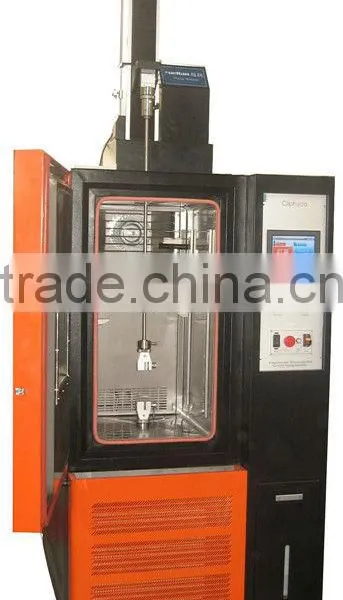

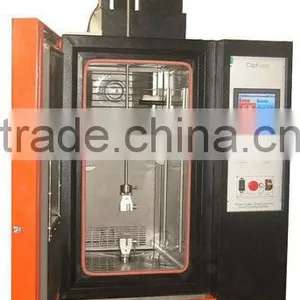

Precision YL-1163 Temperature and Humidity Tensile Test Chamber

Capacity

10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN(can select double capacities preparation)

Temp. Range

0, -20, -40, -60, -70°C~150°C

Humidity Range&accuracy

20%~98%RH0.1%RH display

Display

All computer display mode or LCD displayer

Force Resolution

1/250,000

Force Accuracy

≤±0.5%

Stroke Resolution

0.005mm

Control Mode

Tensile testing machine: all computer control mode or LCD control mode

Temperature control

PID automatic calculation, steady state error

Display accuracy

0.1°C

Temperature accuracy

±1°C

Programmable Mode

Independent research and development YL-C201 programmable controller, Chinese-English switch, touch control type colorful screen, 120 groups program memory, 1200 section program, 999 program cycles,  99 times each groups, time setting in 0-99H59M, available to connect to computer for the supervision program;

Cycling system

Fan forcedcirculationsystemv

Humidity Stability

±2.5%RH

Humidification System

Surface evaporative type, enclose protection of hydropenia, interrupt of power supply and superheat for humidifier.

Dehumidification System

Frozen & latent heat dehumidification method

Heating System

SUS304, stainless steel heater

Cooling System

fan heat dissipation type, high efficiency compressor, environmental protection coolants

Safety Device

Leakage and overload protection, compressor overload protection, the humidifier overheating protection, temperature limit protection device;

Materials

SUS#304 stainless steel

Test Stroke

1200mm(tensile testing machine can be also used independently without the chamber)

Test Width

600mm(ensile testing machine can be also used independently without the chamber)

Test chamber space

40×80×40cm(W×D×H)(available to made according to the requirements)

Test Speed

0.5~500mm/min,  set by computer, with up & downfast adjustment button of grips

Force Unit Switch

kgf, N, Ibf, g, ton, Mpa

Stop Mode

Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function

Machine Dimension

130×150×210cm(W×D×H)

Machine Drive

Servo motor drive, synchronous wheel and precision ball screw drive

Power

400W

Machine Weight

Approx 450kg

Power Supply

220V 50/60HZ 30A

Standard Device

grips extension rod, heat sink, a set of grip, computer software, USB computer connection wire;
