High & Low Temperature Testing Machine: YL-1160 Low Temperature Tensile Tester
YL-1160 Low Temperature Tensile Tester
- Product ID:YL-1160
- Classification: High & Low Temperature Testing Machine
- Brand:Yuelian
Product introduction

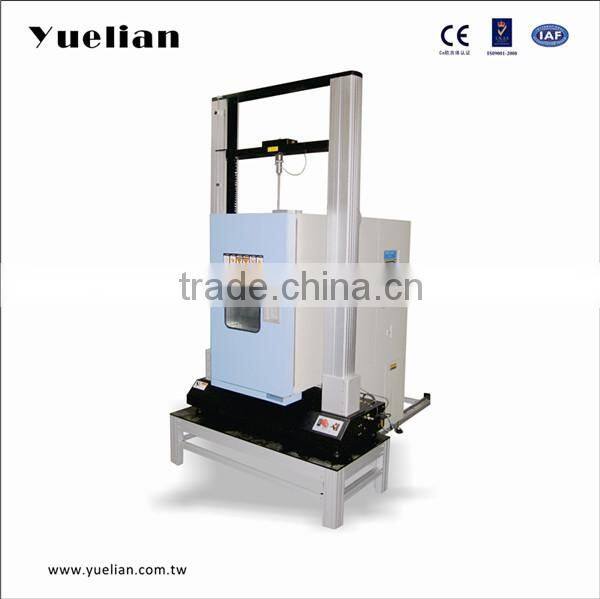

YL-1160 High Low Temperature Tensile Tester
Purpose
This tester is designed as improved model for environment testing, installation high temperature testing chamber, can test tensile, pressure, tearing, shearing, peeling strength, deconvolution strength, ring initial adhesion strength and other physical performance. Can remove the chamber to increase use space and bring convenience when using room temperature tests.
Software Function
Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers; can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.
Specification
Capacity: 10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN ( can select double capacities reparation) Temp. Range: 40°C~200°C (can require to make a higher temperature) Display: Computer display mode Force Resolution: 1/250,000 Force Accuracy: ≤±0.5% Stroke Resolution: 0.005mm Control Mode: All computerized operation mode Temp. Control: PID automatic calculation, stable error Display Accuracy: 0.1°C Temp. Accuracy: ±1°C Circulation System: Fan force circulation system Heating System: SUS304 stainless steel heat radiation type of heater Protection Device: Leakage and overload protector Chamber Material: Inner box: SUS#304 stainless steel, outer box: advanced powder processing Test Stroke: 300mm Chamber Dimension: 30×30×58cm(W×D×HP) Test Speed: 0.5~500mm/min, set by computer, with up & down fast adjustment button of grips Force Unit Switch: Kgf, N, Ibf, g, ton, Mpa Stop Mode: Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function Machine Dimension: 85×160×220cm(W×D×H) Machine Drive: Servo motor drive, synchronous wheel and precision ball screw drive Power: 2KW Machine Weight: Approx 220kg Power Supply: 220V 50/60HZ 30A Standard Device: Extension pole of grips, heat abstractor, 1 set of grips, computer software, USB computer connection wires Optional : Personal computer
Send Inquiry to This Supplier
