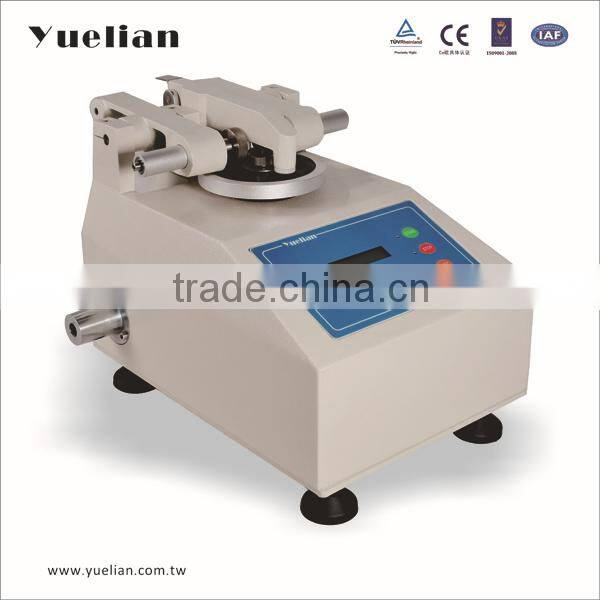

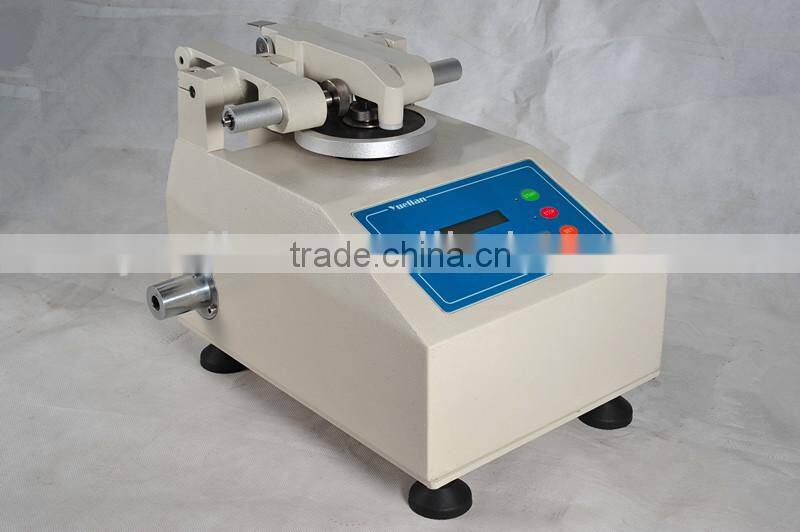

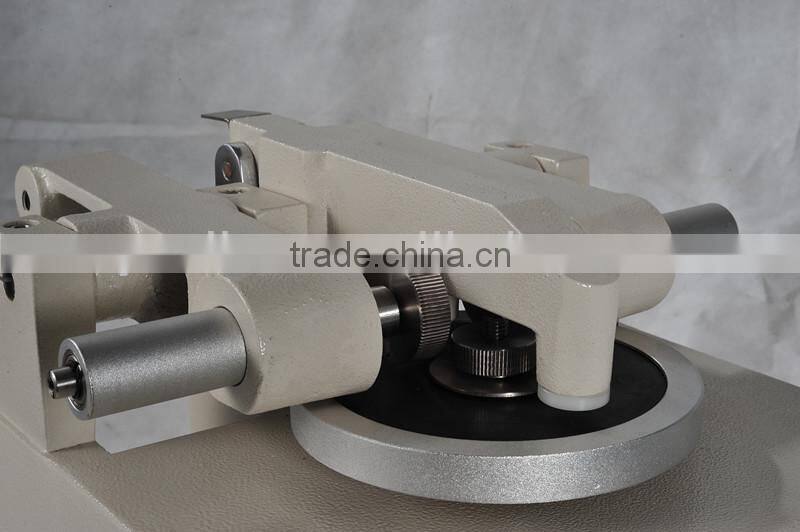

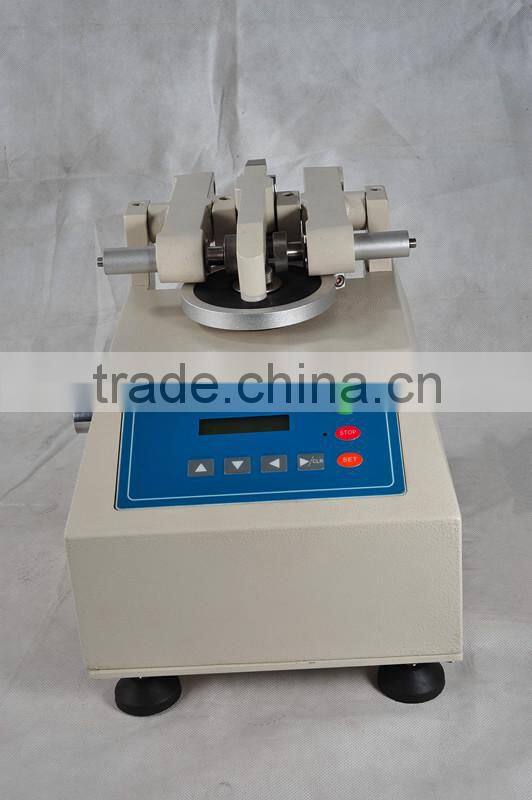

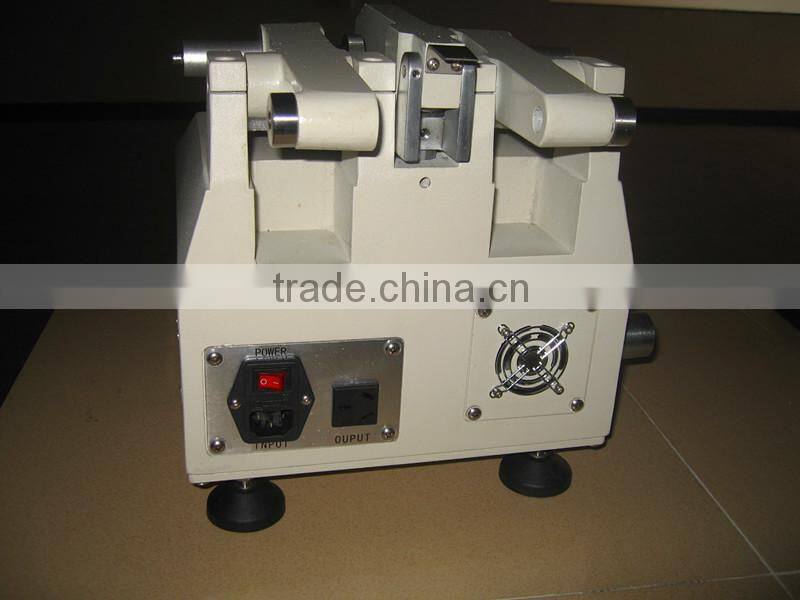

YL-3315T1 Abrasion tester of rubber
Application:
Abrasion tester of rubber is using specified grinding wheel with specified Load to rub the surface of specimen, and then evaluate the abrasion condition. The abrasion property could be indicated by measure the loss of weight, volume and thickness. This tester is suitable used for abrasion test to metal, leather, fabric, paint, paper, floor brick, plywood, glass, natural rubber and so on.
Basic Standard: JIS-A1453, K6902, K6911 K-7204 K5400 L1096 ASTM-D4157,D1044,D1175
Specification:
Abrasion Wheel | Diameter 2 inches, Width 1/2 inches |
Between centers of Left & Right Grinding Wheels | 63.5mm |
Between centers of Specimen Tray and Grinding Wheel | 38mm |
Test Tray Rotating Speed | Use stepper motor, 1-100RPM, adjustable (default set value 60RPM) |
Loading | 250g, 750g, 1000g (bare weight 250g, attached stainless steel weights 250g, 750g, adjustable) |
Counter | Electron liquid crystal display 8 digits, auto-stop. |
Specimen Size | φ110mm, center hole φ7.5mm |
Thickness | 1~6mm, soft and hard materials can be test |
Specimen Clamping Block | Easy remove, as replacement wet abrasion test, ultra-thick specimen and other special test, used with specialized clampers (optional) |
Accessories | 1pc of specimen slicer, 1pc of wrench, 10pcs of sand papers, 1pc of specimen clamping frame, 1pc of vacuum cleaner (self-made) |
Machine Dimension | 55×38×47cm |
Machine Weight | 30kg |
Power | AC220V, 10 A |
