ASTM D4060 paper Abrasion Testing Machine1.manufacture
2.CE certificate
3.reasonable price
4.one year warranty

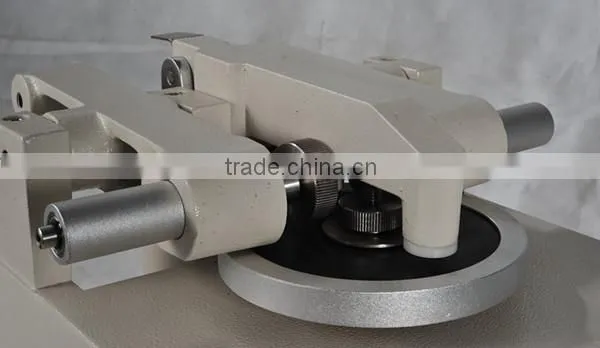

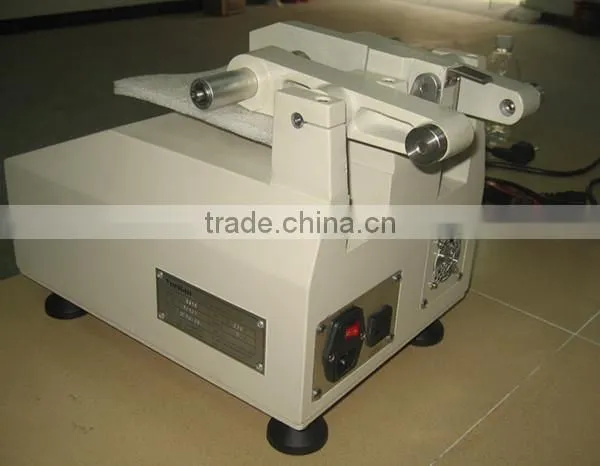

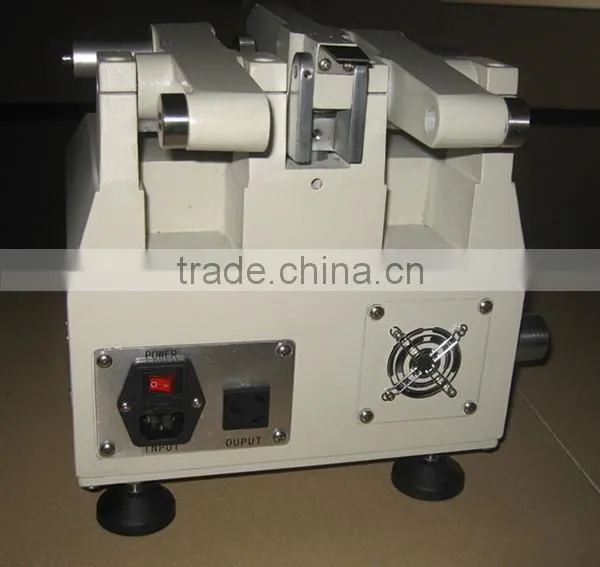

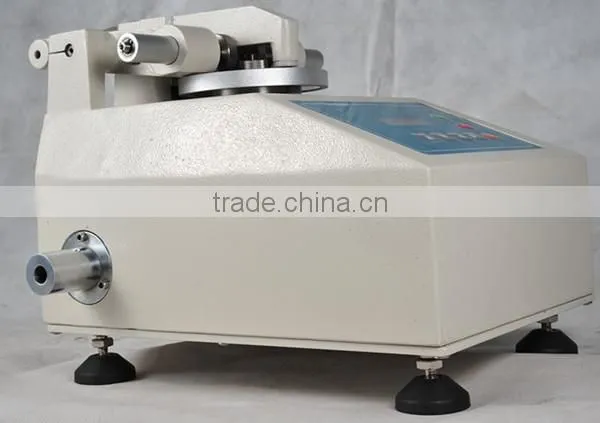

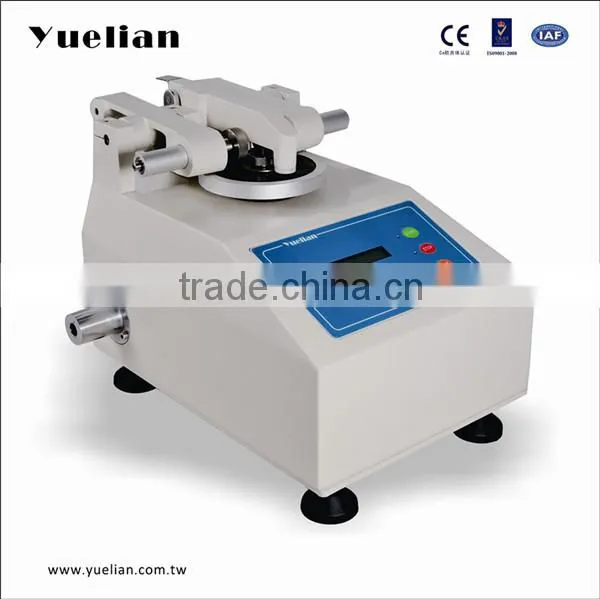

ASTM D4060 paper Abrasion Testing Machine
Abrasion Tester is designed according to JIS, ASTM and relative standards. The main function is using specified grinding wheel with specified Load to rub the surface of specimen, and then evaluate the abrasion condition. The abrasion property could be indicated by measure the loss of weight, volume and thickness. This tester is suitable used for abrasion test to leather, fabric, paint, paper, floor brick, plywood, glass, natural rubber and so on.
Standard: JIS-A1453, ASTM D4060, K-7204 K5400 L1096; ASTM D7255 ,ASTM-D4157, D1044, D1175; QB/T 2726-2005; BS EN13329-2006; ISO 3537;DIN 52347
Choice of Sand wheels for abrasion test:
Coatings: CS10,CS17
Floor: CS17, H18
Plywood: CS32,CS33
Plastic: H18, H22, CS17
Cloth: H18, H22, CS17
Specification:
Abrasion Wheel |
Diameter: 2 inches, Width: 1/2 inches |
Between centers of Left & Right Grinding Wheels |
63.5mm |
|
Between centers of Specimen Tray and Grinding Wheel |
38mm |
Test Tray Rotating Speed |
Use stepper motor, 1-100RPM, adjustable (default set value 60RPM) |
Loading |
250g, 750g, 1000g (bare weight 250g, attachedstainless steel weights 250g, 750g, adjustable) |
Counter |
Electron liquid crystal display 8 digits, auto-stop. |
Specimen Size |
110mm, center hole φ7.5mm |
Thickness |
1~6mm, soft and hard materials can be test |
Specimen Clamping Block |
Easy remove, as replacement wet abrasion test, ultra-thick specimen and other special test, used with specialized clampers (optional) |
Accessories |
1pc of specimen slicer, 1pc of wrench, 10pcs of sand papers, 1pc of specimen clamping frame, 1pc of vacuum cleaner (self-made) |
Machine Dimension |
55×38×47cm |
Machine Weight |
30kg |
Power |
1 phase, AC, 220V, 10 A |
