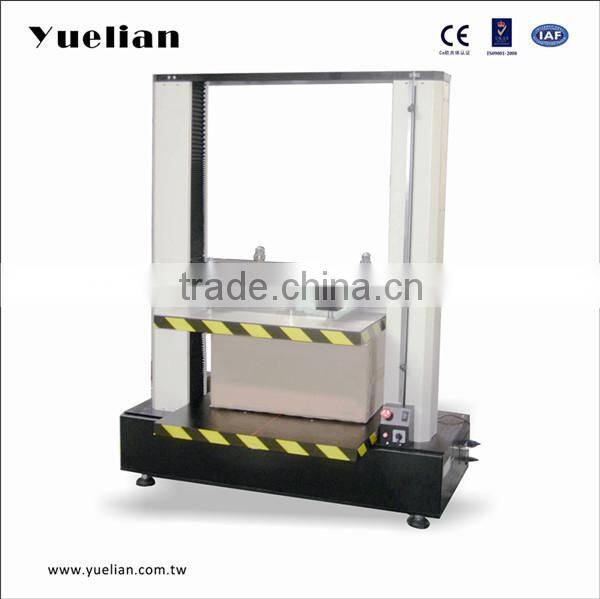

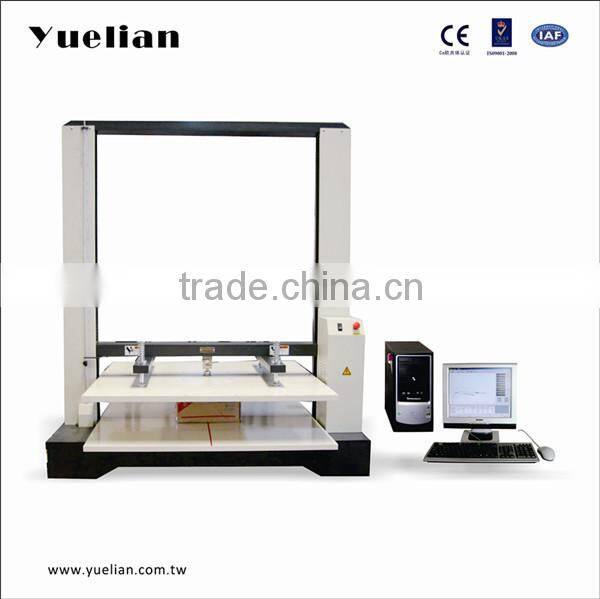

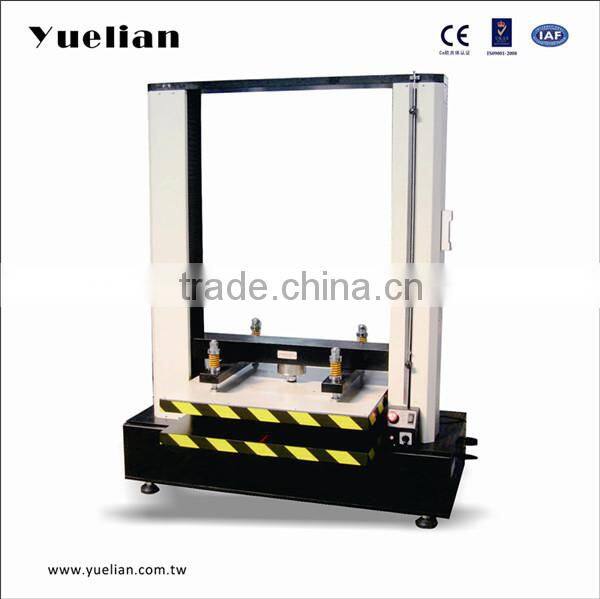

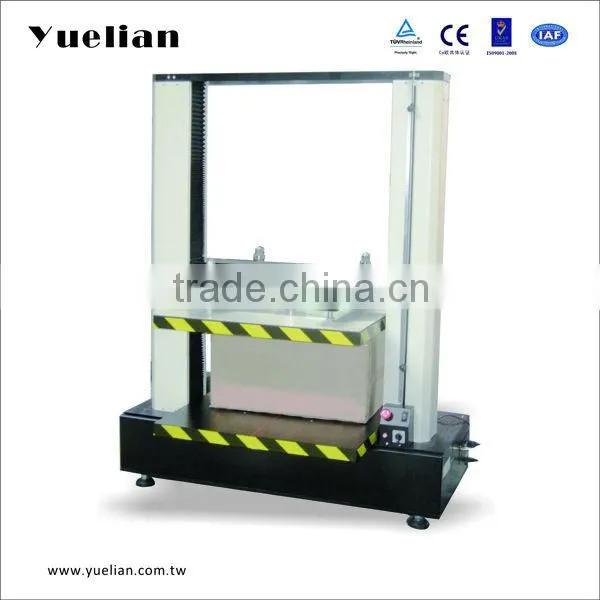

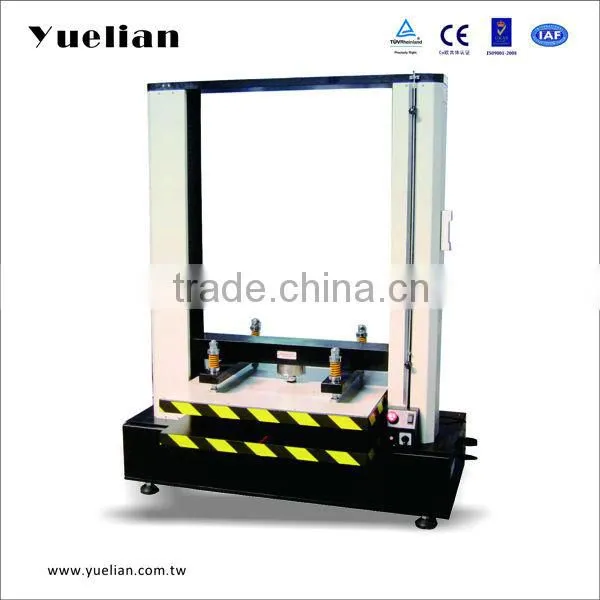

50KN Double column electronic comuter control servo motor Carton and box packaging compression testing machine
Application:
50KN Double column electronic comuter control servo motor Carton and box packaging compression testing machine is used for testing the intensity of pressure endurance,pressure resistance and stacking of cartons.The test result can analyze whether the feature and packing structure design of the cartons and colorful boxes are available for transportation, moving and other intensity requirements.

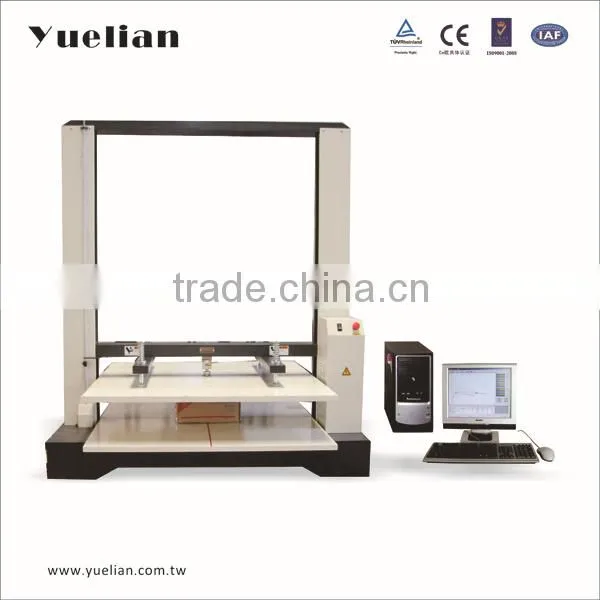

The force-displacement curve chart can be displayed on the computer and displays the cartons stress condition of pressure insistence. The test result can be an important reference as stacking height of finished products cartons for factory.
Design Standards: TAPPI-T 804; ISTA JIS-Z0212; GB 4857.3.4 and so on.
Specification:
Model NO. | 6609PC-A | 6609PC- B | 6609PC- C |
Capacity | 500kg, 1000kg, 2000kg, 5000kg(Select a load cell) | ||
Unit | Kgf ,g ,N ,kn , lbf ,TON(Switchable) | ||
Resolution | 1/250,000 | ||
Precision | ≤0.5% inside Leq 0.5% | ||
Control Method | Computerized operation control | ||
Test Space(cm) | 80×80×100 | 120×120×120 | 150×150×150 |
Compression Speed | 10±3/min | ||
Speed Range | Suitable set by computer | ||
Stop Method | Break and rupture stop, the upper and lower limit setting stop, automatic reset function | ||
Display Functions | Test times, peak value, test curve, test form, average values, etc. | ||
Holding Pressure Function | Suitable set freely in capacity range | ||
Holding Pressure Time | 0.01h~999.99h , suitable set freely | ||
Weight | 700KG | 760KG | 850KG |
Volume(cm) | 120×80×160 | 160×120×190 | 190×150×230 |
Accessories | Test software, computer connection wire, English operation manual | ||

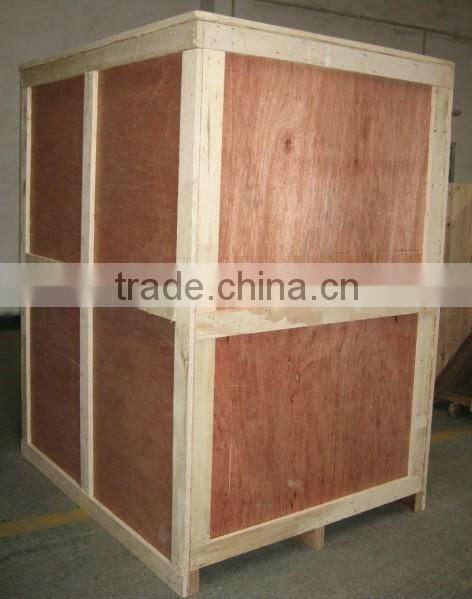

Strong wooden case for the test machine
