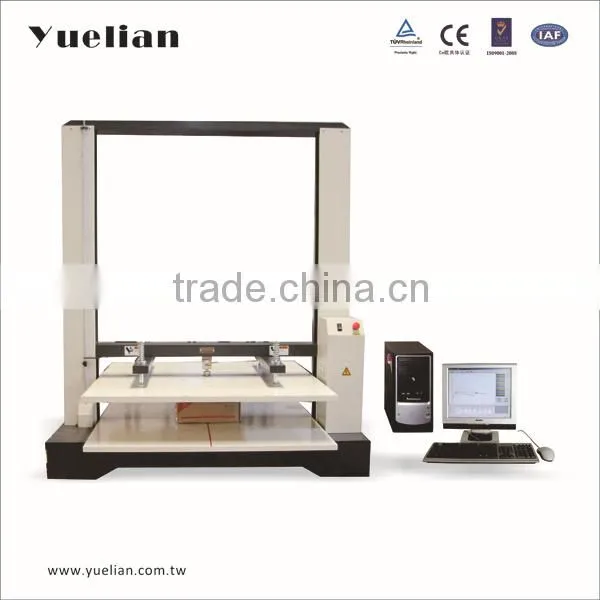

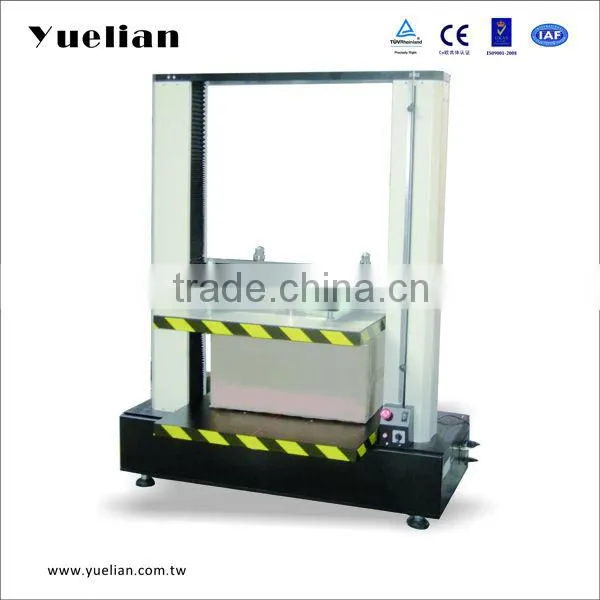

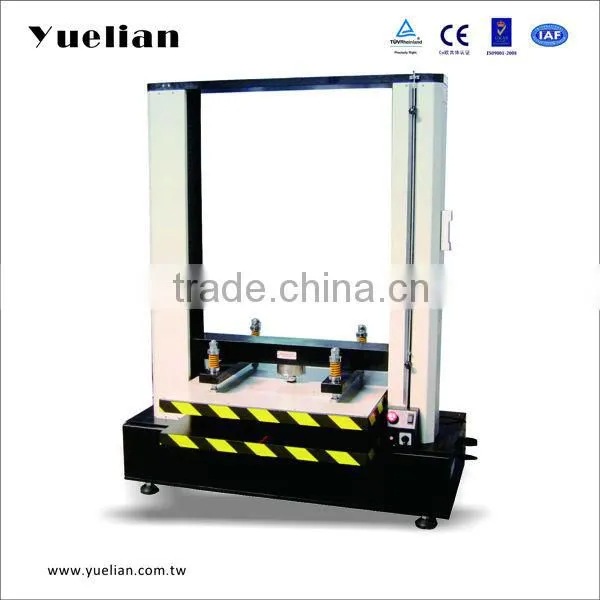

YL-6609PC Carton box compression testing machine
Application:
Carton box compression testing machine is mainly to test compression strength, compression resist strength and stacking strength of packaging boxes or cartons. Through test results analysis, it can be obtained the characteristics of the boxes and color cartons and summarized whether the packaging structure design can meet the strength requirements of cargo transportation and handling. This machine can show the force-displacement curve by connecting with compute, and can also test the force condition of packaging boxes when suffering from compression resistance. Test results can be an important reference for the height of factory's stacking finished packaging boxes.
Design Standards: TAPPI-T804, ISTA JIS-Z0212, GB4857.3.4
Specification:
Model NO. |
6609PC-A |
6609PC- B |
6609PC- C |
Capacity |
500kg, 1000kg, 2000kg, 5000kg(Select One Kind) |
||
Unit |
Kgf ,g ,N ,kn , lbf ,Ton(Switchable) |
||
Resolution |
1/250,000 |
||
Precision |
≤0.5% inside Leq 0.5% |
||
Control Method |
Computerized operation control |
||
Test Space |
80×80×100CM |
120×120×120CM |
150×150×150CM |
Compression Speed |
10±3mm/min |
||
Speed Range |
Suitable set by computer |
||
Stop Method |
Break and rupture stop,the upper and lower limit setting stop,automatic reset function |
||
Display Functions |
Test times, peak value, test curve, test form, average values, etc. |
||
Holding Pressure Function |
Suitable set freely in capacity range |
||
Holding Pressure Time |
0.01h~999.99h , suitable set freely |
||
Weight |
700KG |
760KG |
850KG |
Volume |
120×80×160CM |
160×120×190CM |
190×150×230CM |
Accessories |
test software, computer connection wire |
||
Note: the structure of 5000kg and 2000kg is different.
Certificate:
Exhibition:
Factory:
