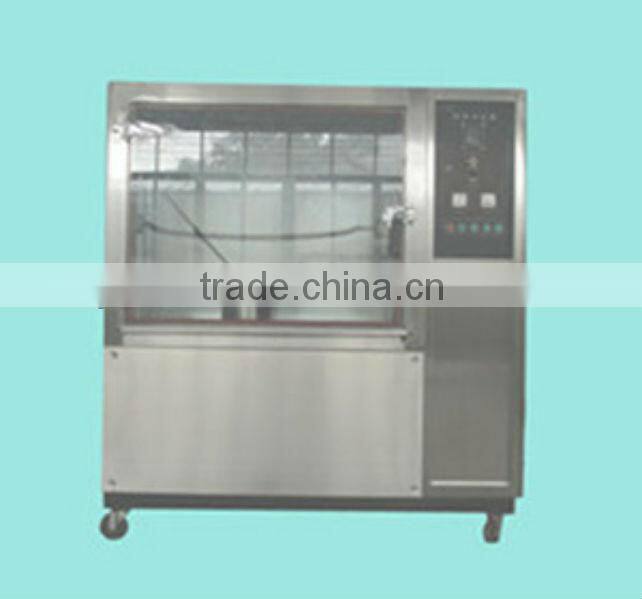

YL-9926B Rain Test Chamber/Environmental Chamber
Purpose:
Rain Test Chamber/Environmental Chamber is used to simulating the lighting , auto parts , household appliances and other products in condition of moisture or rain , to see the influence of water to the products. Through this can test the resistance to the rain penetration and moisture proof ability of products.
|
The following tests are prohibited: Inflammable, explosive, easy to volatile substances sample test and storage; Corrosive substance sample test and storage; Biological sample test and storage; Strong electromagnetic emission source of sample test and storage;
Specification: | |||||
Model |
YL-9926B |
||||
Chamber dimension |
100*100*100cm(W*D*H) |
||||
Swing pipe radius: ¢0.4mm |
|||||
Nozzle hole: 50mm |
Pipe diameter: ¢ 37mm |
||||
Pipe internal diameter: ¢16mm |
Swing angle range: 120°/180° |
||||
Swing adjustment: Frequency converter regulation |
Turntable adjustment: No section speed |
||||
Water pressure:98Kpa adjustable |
Test speed : 1~10r/min adjustable |
||||
Main accessories |
Water pump, flow meter, speed reducer, pressure gauge, the timer |
||||
Electrical components |
Adopt domestic famous brand products |
||||
Power |
Approx. 4.5KW |
||||
Display |
5.7”320×240 dot-matrix color LCD display(Korea TEMI880) |
||||
Operation mode |
Fixed value or a program |
||||
Specification Type |
Chinese menu, touch screen input |
||||
Program Capacity |
120 group, 1200 test procedure |
||||
Program length |
Process up to 99 segments in each group |
||||
Cycle index |
Each program can loop 999 times |
||||
Setting range |
Rain time setting range: 0~99 hour 59 minutes interval (break) rain adjustable |
||||
Load time setting range: 0~99 hour 59 minutes interval (break) load adjustable | |||||
Pipe angle setting range: 120° 180° | |||||
Auxiliary |
Alarm function (Hint malfunction), timing function. |
||||
Chamber material |
Chamber material |
SUS304 stainless steel plate |
|||
Door |
Single door with observation window, left hinge and right handle |
||||
Phase sequence protector |
Water system protectors |
||||
Water supply |
Supply mode |
Pumped |
|||
Water tank |
Built-in tank*1 40L |
||||
Water quality |
Clean pure water (available for clean tap water) |
||||
Power wire 5m |
|||||
Specimen holder: Stainless steel rack 2 layer, load-bearing(uniform distribution): 25kg/layer(chamber total load not more than 100kg) | |||||
Service conditions |
Power supply |
AC380V Three phase four wire + ground protection Voltage range:AC380V ±10% HZ range: 50Hz ±0.5 Hz Protect earth grounding resistance less than 4 Ω; power supply with TN - S or TT model |
|||
Operating environment |
Temperature: 5°C~35°C,relative humidity: ≤85%RH |
||||
Installation place |
Smooth ground, well ventilated, excluding inflammable, explosive, corrosive gas and dust Without strong electromagnetic radiation source nearby Adequate maintenance space |
||||
Design standard |
GB4208-93,GB2423,IEC60529 |
||||
Strong wooden case for the test chamber
