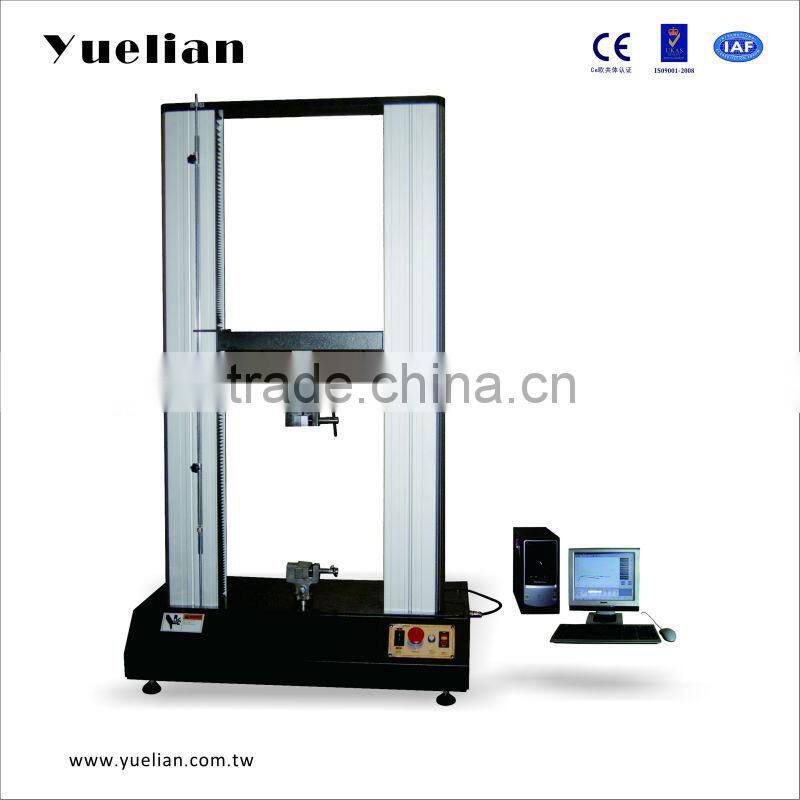

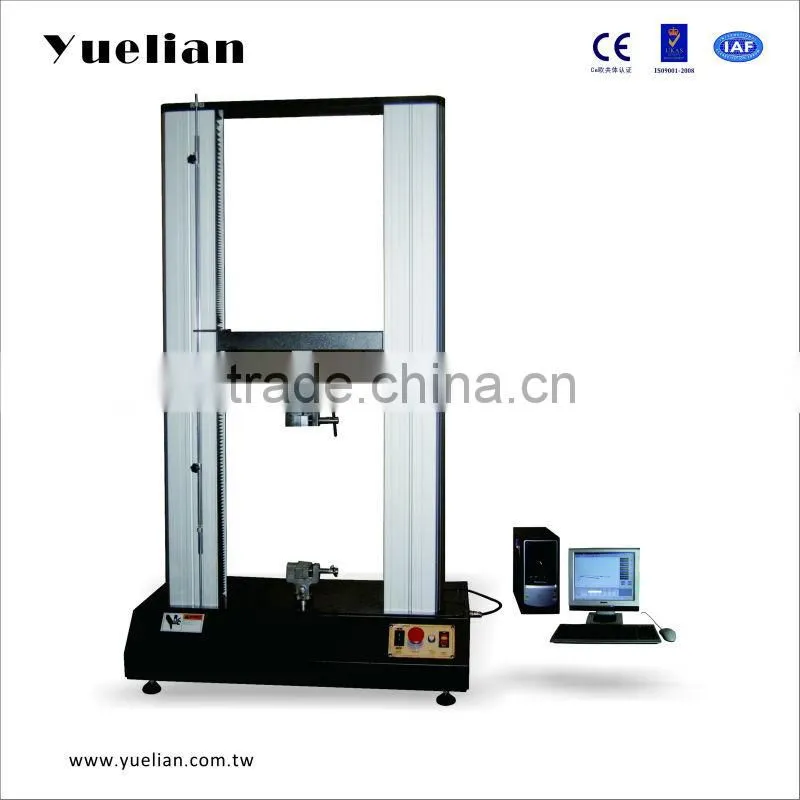

New Servo motor Universal Tension / tearing resistance / Compressive Tensile Strength Testing Machine YL-1123
Purpose:
3 point bending test machine is designed for test strength of various materials, finished products, semi-finished products and monocase, select various clamps and smelt tool, can do test of stretching resistance, drawing force, compression strength, bending resistance, extensibility, tearing, peeling, stress, strain, shearing force, etc.
Standard: GB/T16491-1996, GB/T12160-2002, GB/T16825-1997, ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7
Features:
Clorful liquid crystal display, light touch switch;
Cnnected computer can obtain point, and conduct various data analyses, printout.
Software has powerful functions, suitable used for the industries of metal, steel products, aviation, rubber plastic, cable, shoes, leather, chemicals and so on.
Specification:
Capacity |
1, 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000kg (can select double capacities preparation) |
Display |
Computer display mode |
Force Resolution |
1/250,000 |
Force Accuracy |
≤±0.5% |
Stroke Resolution |
0.0001mm |
Control Mode |
All computerized operation mode |
Test Stroke |
1000mm |
Test Width |
420mm |
Test Speed |
0.001~500mm/min, can set by computer, with up & down fast adjustment button of grips |
Force Unit Switch |
Kgf, N, Ibf, g, ton, Mpa |
Stop Mode |
Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function |
Machine Dimension |
72×52×130cm(W×D×H) |
Machine Drive |
Servo motor drive, synchronous wheel and precision ball screw drive |
Power |
400W |
Machine Weight |
Approx 115kg |
Power Supply |
220V 50/60HZ 10A |
Standard Device |
1 set of grips, computer software, USB computer connection wire |
Optional |
Personal computer |
Products Show:
Certificaties:
