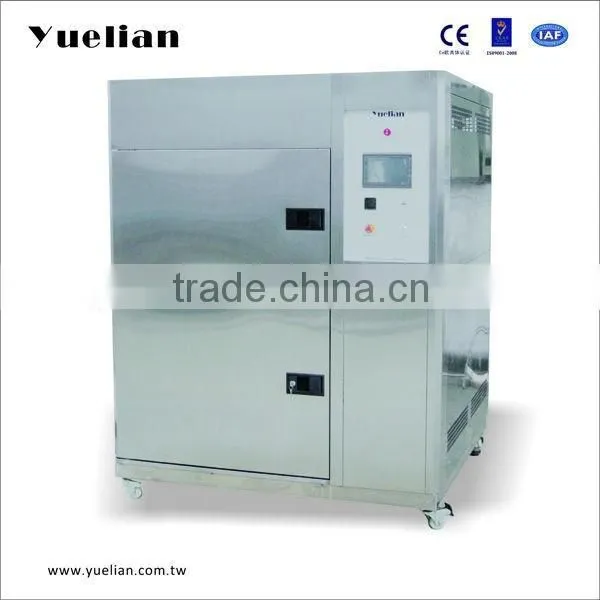

YL-2280 High and low temperature shock test chamber Digital Display Thermal Shock Tester Programmable thermal shock testing machine
Application:
Thermal shock resistance test equipment is mainly used to test materials resistance in extremely high temperature or extremely low temperature. This situation is similar to non-continuously being low temperature or high temperature; Thermal shock tester can make various products accomplish test in shortest time. Chemical change or physical injury made by heat shock is caused by thermal expansion and contraction change or other physical nature change.
Control System:
1.Use TST system to achieve entire trust for various products.
2.Effect of heat shock is including finished products cracked or broken layer, and electrochemical change caused by replacement.
3. All-digital automatic control of TST system makes you easy and handy operation.
Standards:
GB 2423-22, GJB 150-86, MIL-STD-810F
General Features:
1.The machine is divided into three sections: the high temperature chamber, the low temperature chamber an d the testing chamber.
2.The color touch panel control system was made in Japan can display Chinese / English. The big size liquid- crystal LCD has been adopted.
3.High formula memory capacity may be set to 120 patterns. The maximum cycle setting is 999 cycles. The setting of each section is 999 Hrs 59 Mins
4.Provid RS232C communication interface device, capable of controlling / editing/ recording in the linkage with the computer and two set dynamic connection point and convenient application.
5.Both 2 zone and 3 zone shocks can be chosen.
6.All equipment is fully automatic, and all process are precisely controlled with P.L.C.S.
7.Of any part of the malfunctions, the machine will automatically shuts down and a warning light switches on.
8.Machine can be shut down automatically in case of electrical power instabilities.
.
Specifications:
Model No. |
YL-2280A |
YL-2280B |
YL-2280C |
YL-2280D |
YL-2280E |
||
Interior Dimension (cm) |
40×30×35 |
50×40×40 |
60×50×50 |
70×60×60 |
80×75×75 |
||
Exterior Dimension (cm) |
162×200×142 |
172×200×147 |
182×210×157 |
192×220×167 |
202×238×185 |
||
Temperature Range of Test Area |
High temperature: +60 °C ~+150°C Low temperature: -10 °C ~ -65 °C A -45 °C B -55 °C C -65 °C |
||||||
High Temp. Area Heating Time |
RT200 °C approx 30min |
||||||
Low Temp. Area Cooling time |
RT-70 °C approx 90min |
||||||
Temp. Recover Time |
Within 5min |
||||||
Temp. Stability |
±0.2 °C |
||||||
Insulation Material |
Thermostability, high density amino acid ethyl ester foam insulation material |
||||||
System |
P.I.D+S.S.R+ microcomputer balance thermostat control system |
||||||
Refrigeration System |
Semi-sealing two-stage compressor (water-cooling style) |
||||||
Protection Device |
Breaker, compressor high & low pressure protection switch, refrigerant pressure protection switch, failure warning system, electronic siren |
||||||
Accessories |
2pcs of upper and lower adjustable interlayer |
||||||
Power |
3Φ220VAC±10% 50/60Hz & 3Φ 380V/415VAC±10% 50Hz |
||||||
Weight (Approx) |
1000kg |
1550kg |
1680kg |
1900kg |
2480kg |
||
