UV accelerated weathering aging tester test chamber (Touch Screen Control)(UV-40LRC)1.Manufacturer
2.UVA/UVB lamp optional

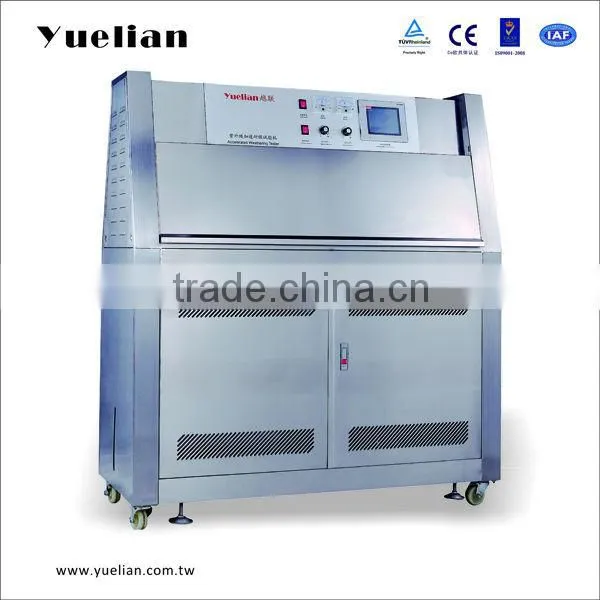

UV accelerated weathering aging tester test chamber (Touch Screen Control)(UV-40LRC)
Introduction:
UV Aging Tester is equipped with fluorescent UV lamp which can completely simulate the UV spectra of sunlight, thus to simulate materials
in discoloration and decline of brightness and strength with devices for temperature control and humidification. The UV spectra may cause
impairments like cracking, flaking off, pulverization and oxidation, as well as factors such as high temperature, high humidity, condensation
and darkening period. Meanwhile, with the coordination between UVlight and humidity, single light capacity and moisture capacity would be
weakened or deactivated in the chamber, which can be widely used for evaluating the weatherability of products. The machine features in
well equipment with UV simulation, low maintenance cost, easy operation, automatic test running period by program controller, high degree
of automation, good lamplight stability and high repetition of test result etc..
Main Features:
UV Aging Tester is designed and manufactured in accordance to multiple standard codes, such as ISO 11507/4892-3 and NE 927 6, which serves as the standard of technical indicators.
1.Ordinary tap water is available for QUV original condenser system.
2.Water heater is beneath the vessel in stead of being submerged in water, which contributes to convenient-maintenance.
3.Water-level controller is set outside the QUV for easier monitoring.
4.Convenient to program; automatic alarm for misuse and fault.
5.Controlling of light irradiance, spray pumping and condensing can be implemented..
6.Standard long-life lamp (imported).
7.Accurate temperature can be measured by blackboard temperature sensor, of which the test results can be repeated.
8.Condensing unit can reach up to 100% humidity by simulating the influence of outdoor humidity.
9.Humidity, condensation and water spraying can be tested constantly and circularly.
Specification:
Standard |
ISO-4892, ASTM-G53, D4587, 4799, BS-27282, SAE-J2020 |
Temp. Range |
RT+10~70°C |
Humidity Range |
75%~95%RH |
Temp. Resolution |
1°C |
Temp. & Humidity Control Method |
Balance adjustment temperature & humidity method |
Light Temp. Range |
50 °C~70°C |
Condensation Temperature Range |
40 °C~60°C |
Blackboard Temperature Measuring Range |
30~80°C |
Light Source |
40W Imported UV fluorescent |
Wavelength Coverage |
UV-A340nm |
Radiant Intensity |
Adjustable within 1.0/cm2 |
Distance of Lamp and Specimen |
50± 2mm |
Distance Between Lamps |
70mm |
Dimension |
approx 1480mm×560mm×1450mm |
Material |
SU304# stainless steel |
Temp. Control Method |
self-tuning PID temperature control mode |
Specimen Standard Dimension |
50× 125mm |
Weight |
approx 150kg |
Proposed Operation Environment |
5~35°C, 40%~85%R·H, 300mm away from walls |
Power Requirement |
220V±5%, single-phase 20A, 50Hz |
Optional Lamp Type |
American original UVB313L, UVA340, UVB340 |
