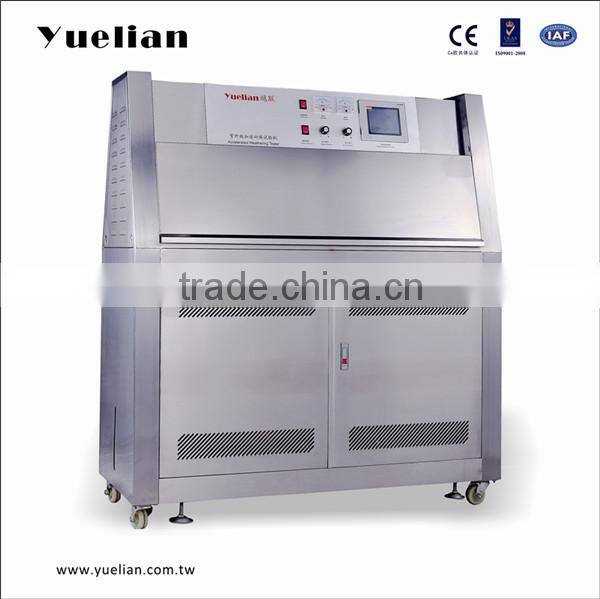

uv test chamber fabric(Touch Screen Control)
Application:
UV Test Chamber is equiped with fluorescent UV lamp which can completely simulate the UV spectra of sunlight, thus to simulate materials in discoloration and decline of brightness and strength with devices for tempreture control and humidification. The UV spectra may cause impairments like cracking, flaking off, pulverization and oxidation, as well as factors such as high tempreture, high humidity, condensation and darkening period. Meanwhile, with the coordination between UV-light and humidity, single light capacity and moisture capacity would be weakened or deactivated in the chamber, which can be widely used for evaluating the weatherability of products. The machine features in well equipment with UV simulation, low maintainance cost, easy operation, automatic test running period by programe controller, high degree of automation, good lamplight stability and high repetition of test result etc.
Main Features:
UV Test Chamber is designed and manufactured in accordance to multiple standard codes, such as ISO 11507/4892-3 and NE 927-6, which serves as the standard of technical indicators.
1. UV weathering chamber is designed for users’ part, with easy-operation and high-security.
2. Ordinary tap water is available for UV weathering chamber original condenser system.
3. Water heater is beneath the vessel in stead of being submerged in water, which contributes to convenient-maintenance.
4. Water-level controller is set ouside the UV weathering chamber for easier monitoring.
5. With trundles(standard fitting) beneath the machine, movement is facilitated.
6. Convenient to program; automatic alarm for misuse and fault.
7. Controlling of light irradiance, spray pumping and condensing can be implemented..
8. Standard long-life lamp(imported).
9. UV weathering chamber condensing unit can reach up to 100% humidity by simulating the influence of outdoor humidity.
10. Accurate temperature can be measured by blackboard temperature sensor, of which the test results can
be repeated.
11. Humidity, condensation and water spraying can be tested constantly and circularly.
Technical Parameter:
Standard |
ISO-4892, ASTM-G53, D4587, 4799, BS-27282, SAE-J2020 |
Temp. Range |
RT+10~70°C |
Humidity Range |
75%~95%RH |
Temp. Resolution |
1°C |
Temp.&Humidity Control Method |
Balance adjustment temperature & humidity method |
Light Temp. Range |
50 °C~70°C |
Condensation Temperature Range |
40 °C~60°C |
Blackboard Temperature Measuring Range |
30~80°C |
Light Source |
40W Imported UV fluorescent |
Wavelength Coverage |
UV-A340nm |
Radiant Intensity |
Adjustable within 1.0/cm2 |
Distance of Lamp and Specimen |
50± 2mm |
Distance Between Lamps |
70mm |
Dimension |
approx 1480mm×560mm×1450mm |
Material |
SU304# stainless steel |
Temp. Control Method |
self-tuning PID temperature control mode |
Specimen Standard Dimension |
50× 125mm |
Weight |
approx 150kg |
Proposed Operation Environment |
5~35°C, 40%~85%R·H, 300mm away from walls |
Power Requirement |
220V±5%, single-phase 20A, 50Hz |
Optional Lamp Type |
American original UVB313L, UVA340, UVB340 |
Strong wooden case for the test chamber
