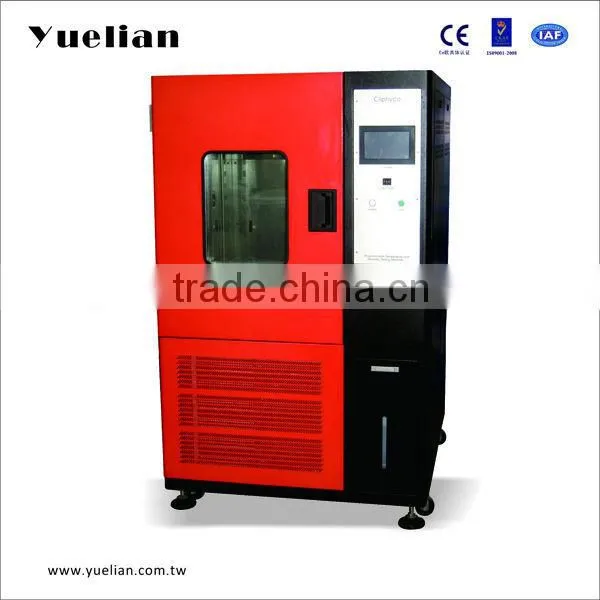

Programmable Temperature And Humidity Climatic Test Chamber
Purpose:
Programmablee Temperature And Humidity Climatic Test Chamber is designed for testing the capability
of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance. It is suitable for
the industries of electron, electrical equipment, vehicle, metal, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
Specification:
Product Name |
Programmablee Temperature And Humidity Climatic Test Chamber |
Capacity |
150L |
Interior size (cm)W*H*D |
50*60*50 |
Exterior size (cm)W*H*D |
100*155* 110 |
Temperature range |
-70°C~+150°C |
Temperature stability |
±0.5°C |
Temperature uniformity |
±2.0°C |
Humidity range |
20%~98%RH |
Humidity stability |
±1.5% |
Humidity deviation |
≤±5%RH when humidity is less than 75%RH; ≤±3%RH when the humidity is more than 75%RH |
Heating up |
heat up from -70°C to +150°C,≤60mins |
Cooling down |
cool down from +20°C to -70°C, ≤40mins |
Ambient temperature |
ambient temperature condition for the chamber working:+5°C~+35°C |
Exterior material |
1)stainless steel; 2)galvanized steel sheet bake finish |
Interior material |
SUS304 stainless steel |
Insulation technology |
outer rigid polyurethane foam+inter glass fibre cotton |
Refrigeration mode |
mechanical vapour compression refrigeration-cascade cycle; air-cooling/water cooling |
Refrigeration compressor |
totally enclosed plunger compressor imported from France (low noise/environment protection) |
Refrigerant |
Environment protection R404A+R23(DuPont) |
Circulating fan |
high temperature induction motor+centrifugal wind wheel |
Heater |
high reliability stainless steel packaging finned heater/selectable: nickel chrome alloy bare wire heater |
Humidifier |
built-in stainless steel anticorrosion heating pipe, deflector type humidification (convenient to clean, low water consuption)/ available to select outer humidification barrel |
Control mode |
curing input PLC control system |
Displayer |
7 inches TFT Truecolor LCD screen,resolution: 800*480; manual touch screen input |
Operation mode |
fixed value and program |
Program capacity |
120 porgrams and each program can set 100 sections |
File saving |
with USB interface,convenient to input or output the programs and the internal parameters; available to output the curves and datas by U disk |
Communication |
to select LAN network interface, convenient to remote connection control and fault diagnosis |
Water supply |
pump drive |
Water tank |
15L/20L food level PE water tank, available to clean dismantling. |
water requirements |
resistivity of humidifying water supply ?≥500MΩ |
Standard accessaries |
a 50mm diameter test hole and a soft plug; 2 stainless steel shelves with excellent ventilation; a observing window,4 mobile caster wheels and 4 wheel pads |
Power |
3 phase, 4 wires, 380V 50Hz±10%+protective earth wire |
Single maximum currently(A) |
14A |
Rated power(KW) |
8KW |
Weight(KG) |
340 |
Protection device |
power anti-phase overvaltage protection; power leakage protection switch; test specification overtemperature protection(independent); compressor overload high and low pressure protection; heater overtemperature protection; humidifier dry heating protection; water shortage protection; controller self diagnosis fault reminding |

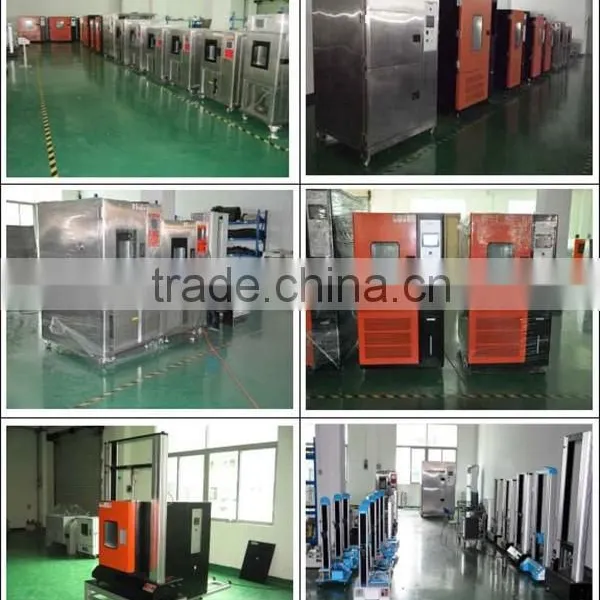

OUR FACTORY
OUR EXHIBITION
OUR PACKAGE
