YL-2208B Standard Corrosive Resistance Salt Spray Tester
Introduce:
YL-2208B Standard Corrosive Resistance Salt Spray Tester is designed for surface treatment of corrosion-resistant capacity test for various materials, including paint, electroplating, organic and inorganic film, anti-rust oil, chemical treatment, and then achieves a long period of resistance to corrosion products.
Designed for the following Salt Spray Test Standards:
CNS 3627, 3885,4159,7669,8866;
JIS D-0201,H-8502,H-8610,K-5400,Z-2371;
ISO3768, 3769,3770, 2997;
ASTM B-117, ASTM B-268, B-268
GB-T2423,GJB150,
GB10587-89, GB 2423-17, IEC68-2-11
Features:
1.Automatic add water when water shortage, with a group of manually water
2.Special glass nozzle, guarantee non-crystalline block for 4000 hours
3.With dual over-temperature protection, water shortage warning, ensure safety use
4.Temperature device adopts digital display, SSR control, precision is 0.1 centigrade degree
5.Chamber adopts direct steam heating method, fast warming, shortening standby time
6.Spray tower attached cone diffuser, with functions of directional mist, adjustable mist, and uniformity fog lamp.
Specification:
Model No. |
YL-2208A |
YL-2208B |
YL-2208C |
YL-2208D |
|||
|
Test Chamber Dimension (W×D×H)cm |
60×40×45 (Large:60×50×50) |
90×50×60 |
120×50×80 |
160×100×60 |
|||
|
Machine Dimension (W×D×H)cm |
113×63×107 (Large:113*68*117) |
146×91×128 |
220×120×145 |
260×145×160 |
|||
Test Chamber |
108L |
270L |
480L |
600L |
|||
Temp.-test |
NSS.AASS 35 ±1°C / CASS 50 ±1°C |
||||||
Temp-Air |
NSS.AASS 47±1°C / CASS 63±1°C |
||||||
Control Panel |
Touch Tone Panel/Touch Screen Panel easy operation |
||||||
Spray Method |
A.Continuous spray; B.Continuous spray and Cyclical spray, Which can be set freely or respectively as you like (nozzle 4000 hours non-crystalline block, special glass making) |
||||||
|
Equipment Materials |
Imported PVC panel & P.P |
||||||
Salt Water Temp. |
35±1 °C |
||||||
Time Memory |
0~999.9 hours, power failure memory type, with buzzer |
||||||
Spray Volume |
1.0-2.0 ml per 80cm2 per hour |
||||||
PH Value |
NSS.ACSS 6.5~7.2 / CASS 3.0~3.2 |
||||||
Power |
A220V, 15A, 50HZ |
AC220V,20A, 50HZ |
AC 220V, 30A, 50HZ |
AC220V, 30A, 50HZ |
|||

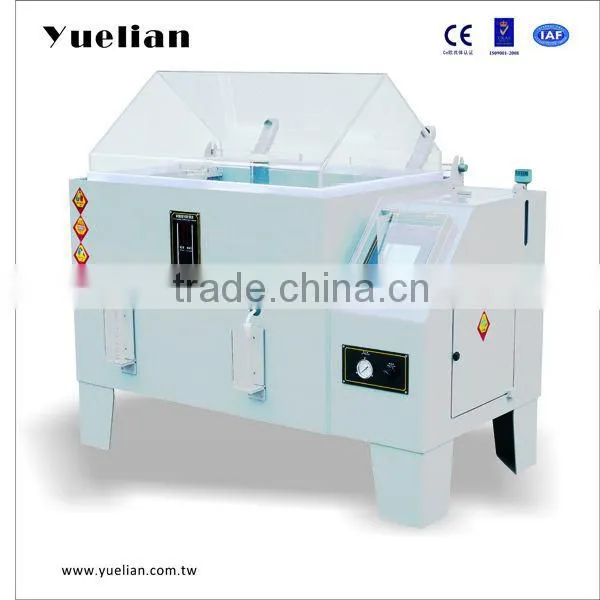

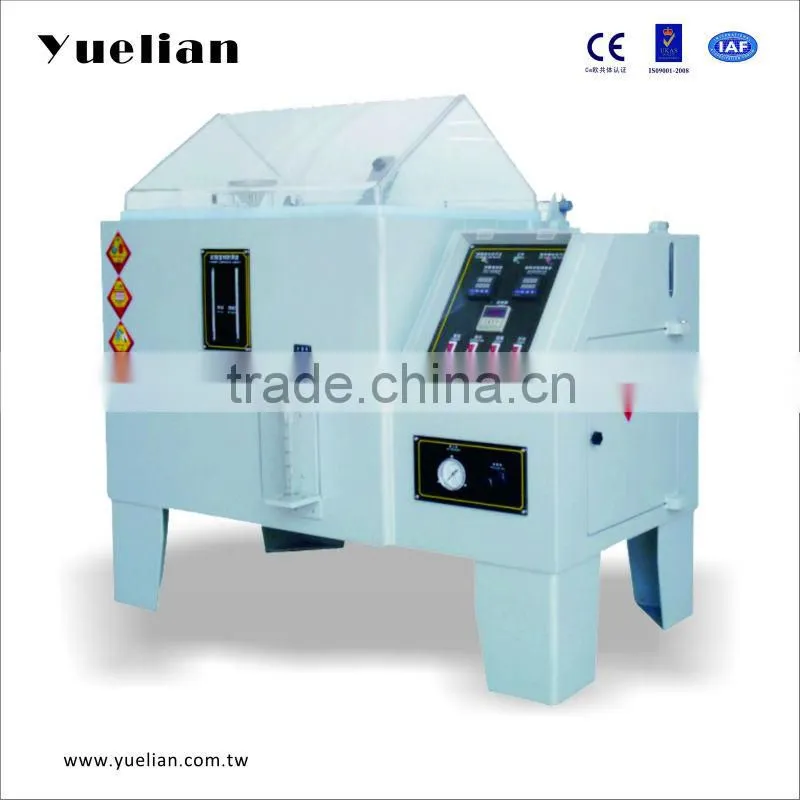

Products show:
Certificates:
