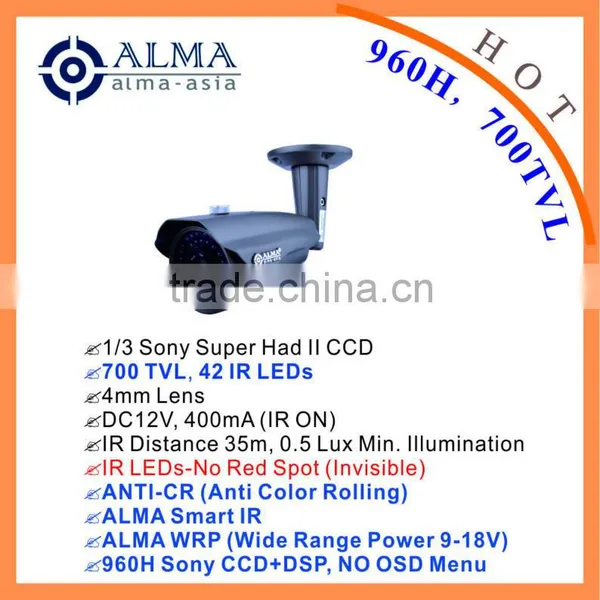

1/3 SONY EFFIO-E ,700TVL WATERPROOF CAMERA WITH SMART IR
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ALMA
Model Number:
IR9842E-I
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
ALMA
Model Number
IR9842E-I
Type
Analog Camera
Style
Bullet Camera
Sensor
CCD
Technology
Infrared
Special Features
Waterproof / Weatherproof
Description
> 1/3" SONY Exview HAD CCD ; 700TVL
> Smart IR; Coaxial controller interface
> Day & Night, Color B/W change, IR waterproof camera
> Aluminum alloy with good heat dissipation
> Internal wiring 3D adjustable
> main module of wide voltage design (9-20V)
> high efficiency low loss IR LED 42's, projection distance 75-105 ft
> Lightning-Proof unit design
> Standard F1.2 high-definition 4mm optical lens
> Double glass steel coating technology, dustproof maintenance-free
> Waterproof grade IP67
> 400mA/DC12V
> Line control OSD menu button
> Constant Current Source LED board
Specification
| Model | IR9842E-I |
| Image Pick-up Device | 1/3 SONY Super HAD CCD II |
| Resolution | 700 TVL |
| Min. Illumination | 0.1 LUX |
| TV system | NTSC / PAL |
| Pixels | NTSC: 976 X 508 PAL: 976 X 596 |
| Lens | 4mm |
| Video Output | 1.1Vp-p/75O, BNC |
| Functions & features | |
| OSD Menu | Yes |
| Language | English, Japanese, French, Russian, Portuguese, Spanish, Simplified Chinese. |
| Lens | Manual/Automatic |
| Shutter/AGC | Shutter: Automatic/Fixed AGC: ON/OFF |
| Day/Night | Auto/Color/B&W |
| Backlight | OFF/BLC/HLC |

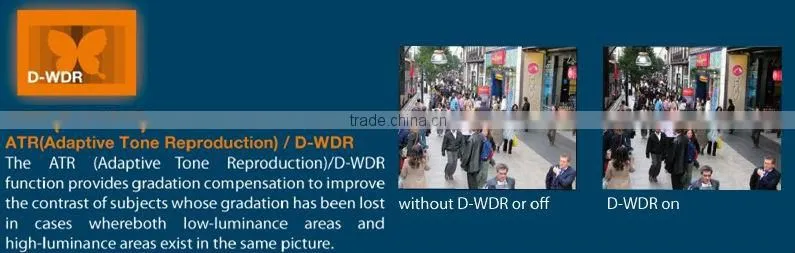

| ATR | Adaptor Tone-curve Reproduction: ON/OFF |
| White Balance | ATW/PUSH/USER1/USER2/ANTI CR/MANUAL/PUSH LOCK |
| Noise Reduction | 2D DNR: ON/OFF |
| Privacy Masking | 4 Zones |
| Motion Detection | 4 Zones |
| SYNC | Internal Synchronous |
| IR Distance | 75-105 ft |
| LED Quantity | 42pcs F5 IR 850nm LED |
| Power Supply | DC12V 400mA |
| Water Proof Rating | IP67 |
| Lightning-Proof Function | Multiple Lightning Proof |
| Operation Temp. | Temp. -15C to 50C RH 85% Max |
| Dimension | 190mm(L) x 81mm(W) x 85mm(H) |
| Weight | 680g |
