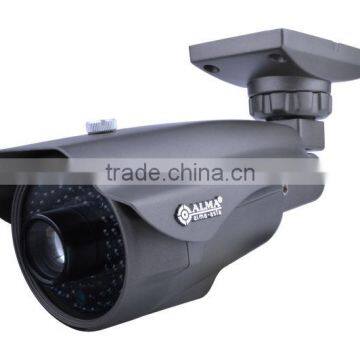

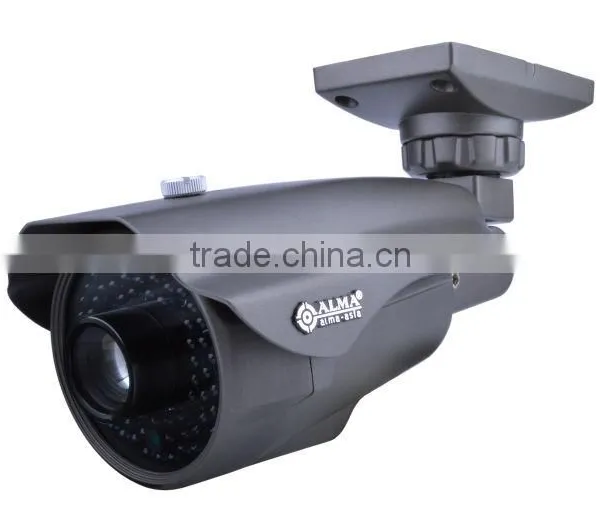

1/3 SONY EFFIO-E 700TVL VARI-FOCUS LENS CAMERA

1/3 SONY EFFIO-E 700TVL VARI-FOCUS LENS CAMERA thumbnail-1
1/3 SONY EFFIO-E 700TVL VARI-FOCUS LENS CAMERA thumbnail-2
1/3 SONY EFFIO-E 700TVL VARI-FOCUS LENS CAMERA photo-1
1/3 SONY EFFIO-E 700TVL VARI-FOCUS LENS CAMERA photo-2
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ALMA
Model Number:
IR9884E-VF-2812
Contact Supplier Request Quote Chat Now
Alma Technology Sdn. Bhd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ALMA
Model Number IR9884E-VF-2812
Type Analog Camera
Style Bullet Camera
Sensor CCD
Technology Infrared

Description

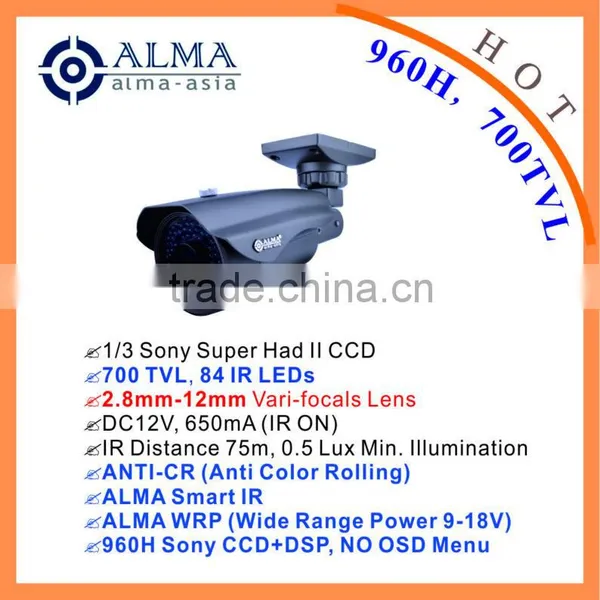

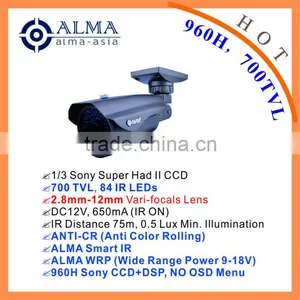

> 1/3"SONY Exview HAD CCD ; 700TVL

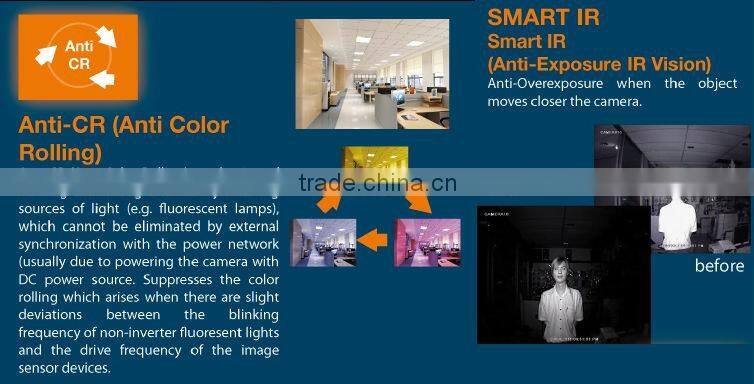

> Smart IR, Day & Night, IR waterproof camera
> Aluminum alloy with good heat dissipation
> Internal wiring 3D adjustable

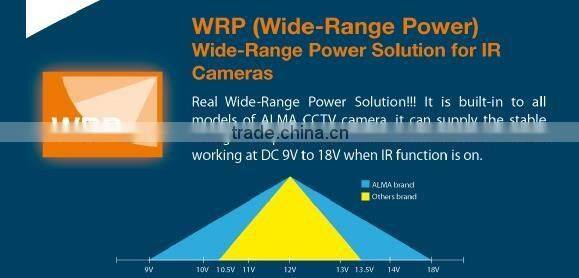

> main module of wide voltage design (9-20V)
> LED board of Constant Current Source design, high reliability
> high efficiency low loss IR LED 84's, projection distance 150-210 ft
> Lightning-Proof unit design
> Standard F1.2 high-definition 9-22mm optical lens
> Double glass steel coating technology, dustproof maintenance-free
> Waterproof grade IP66
> 600mA/DC12V
> OSD menu button underneath camera

Specification



ModelIR9884E-VF-2812
Image Pick-up Device1/3 SONY EXview HAD CCD II
Resolution700 TVL
Min. Illumination0.1 LUX
TV systemNTSC / PAL
PixelsNTSC: 811 X 508     PAL: 795 X 596
Lens2.8-12mm
Video Output1.1Vp-p/75O, BNC
Function & Features
OSD MenuYes
LanguageEnglish, Japanese, French, Russian, Portuguese, Spanish, Simplified Chinese.
LensManual/Automatic
Shutter/AGCShutter: Automatic/Fixed      AGC: ON/OFF
Day/NightAuto/Color/B&W
BacklightOFF/BLC/HLC

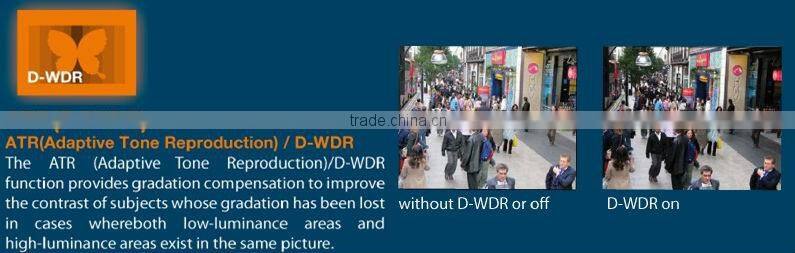

ATRAdaptor Tone-curve Reproduction: ON/OFF
White BalanceATW/PUSH/USER1/USER2/ANTI CR/MANUAL/PUSH LOCK
Noise Reduction2D DNR: ON/OFF
Privacy Masking4 Zones
Motion Detection4 Zones
SYNCInternal Synchronous
IR Distance150-210 ft
LED Quantity84pcs F5 IR 850nm LED
Power SupplyDC12V 600mA
Water Proof RatingIP66
Lightning-Proof FunctionMultiple Lightning Proof
Operation Temp.Temp. -15C to 50C  RH 85% Max
Dimension323mm(L) x 111.5mm(W) x 126mm(H)
Weight1180g

1/3 SONY EFFIO-E 700TVL VARI-FOCUS LENS CAMERA1/3 SONY EFFIO-E 700TVL VARI-FOCUS LENS CAMERA1/3 SONY EFFIO-E 700TVL VARI-FOCUS LENS CAMERA
