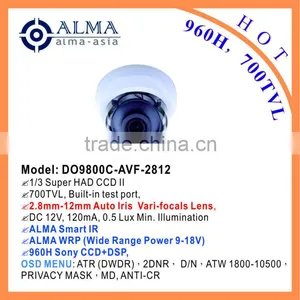

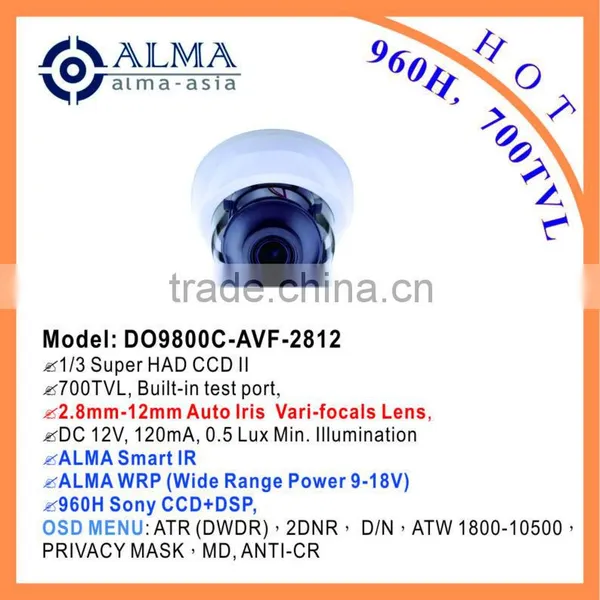

1/3 SONY EFFIO-E Dome Camera

Name: 1/3 SONY EFFIO-E Dome Camera
Brand: ALMA
SKU: 112394331
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ALMA

Model Number:

DO9800C-AVF-2812

Alma Technology Sdn. Bhd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ALMA

Model Number DO9800C-AVF-2812

Type Analog Camera

Style Dome Camera

Sensor CCD

Technology Infrared

Specifications

700TVL, Built-in test port,
2.8mm-12mm Auto Iris Vari-focals Lens,
DC 12V, 120mA, 0.5 Lux Min. Illumination

> 1/3" SONY Exview HAD CCD ; 700TVL

> 0.1Lux > Day & Night Color B/W change camera

> Built-in 3D adjustable > main module of wide voltage design (9-20V)

> Lightning-Proof unit design

> Standard high-definition 2.8-12mm auto iris optical lens

> 120mA/DC12V > Built-in OSD menu button

> Built-in test port

Model	DO9800C-AVF-2812
Image Pick-up Device	1/3 SONY Super HAD CCD II
Resolution	700 TVL
Min. Illumination	0.1 LUX
TV system	NTSC / PAL
Pixels	NTSC: 976 X 508 PAL: 976 X 596
Lens	2.8-12mm auto iris
Video Output	1.1Vp-p/75O, BNC
Function & Features
OSD Menu	Yes
Language	English, Japanese, French, Russian, Portuguese, Spanish, Simplified Chinese.
Lens	Manual/Automatic
Shutter/AGC	Shutter: Automatic/Fixed AGC: ON/OFF
Day/Night	Auto/Color/B&W
Backlight	OFF/BLC/HLC
ATR	Adaptor Tone-curve Reproduction: ON/OFF
White Balance	ATW/PUSH/USER1/USER2/ANTI CR/MANUAL/PUSH LOCK
Noise Reduction	2D DNR: ON/OFF
Privacy Masking	4 Zones
Motion Detection	4 Zones
SYNC	Internal Synchronous
Power Supply	DC12V 120mA
Lightning-Proof Function	Multiple Lightning Proof
Operation Temp.	Temp. -15C to 50C RH 85% Max
