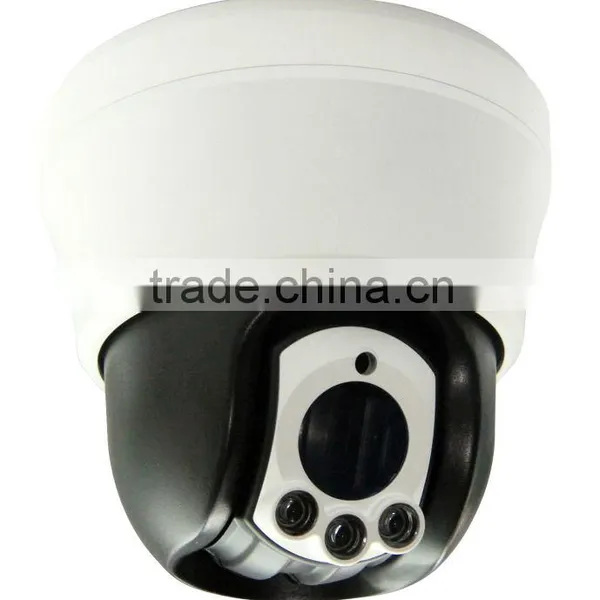

4inch 10X IR Mini PTZ Dome

4inch 10X IR Mini PTZ Dome thumbnail-1
4inch 10X IR Mini PTZ Dome photo-1
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
APTZS6GR
Type:
Analog Camera
Contact Supplier Request Quote Chat Now
Alma Technology Sdn. Bhd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number APTZS6GR
Type Analog Camera
Style Dome Camera
Sensor CCD
Technology Pan / Tilt / Zoom
Special Features Waterproof / Weatherproof

Specifications

4 inch double-layer metal structure , all-weather design. outside weather-proof level up to IP65.

3PCS high-power infrared light, turn divided into two groups , no flashlight effect , IR distance 30-40 m.

360°endless pan range and 0°- 90°tilt range, support auto-flip, non-surveillance blind area

Max. pan preset speed of 200°/s and max. tilt preset speed of 60°/s

Support 220 preset

8 patrols, each patrol can contain up to 32 presets

4 patterns, can totally record up to 10 minus.

Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples

Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity (contain the idling condition after the power supply has been turn on)



Specification:

APTZS6GR Para/Model

  APTZS6GR

function

IR distance

Effective IR distance 30m-40m

Pan range

360° endless

Pan speed

0.6°-200°/s

Tilt speed

3.5°-60°/s

Tilt range

0°-90°(support auto flip)

Manual speed

High middle low speed adjustable

Proportional Zoom

Support

Preset

220

Patrol

8

Pattern scan

4

Scan between two presets

support

Park action

Support selectable preset , cruise , pattern scan , two- line scan , automatic level

Zone scanning

support

PTZ Position display

Support, can select on/off

Alarm function

no

camera

Horizontal resolution

480TVL

650TVL

Video system

PAN/NTSC

sensor

1/4inch, SONY CCD

1/3 inch, SONY CCD

Effective pixels

PAL: 500(H)×582(V)

NTSC: 512(H)×494(V)

PAL:960(H)×582(V)/  NTSC:967(H)×494(V)

illumination

0.01Lux

Video output

1Vp-p Composite Output(75Ω/BNC)

S/N

≥48dB

Optical zoom

10X

Focus range

F=5mm-50mm

IRCUT

Standard  IRCUT

Aperture

Fixed Iris

Angle of view

H 51.8°(W)~5.86°(T)  ;  V39.1°(W)~4.4°(T)

Min. working distance

1m(W)~2m(T)

Focus

Auto/manual

Image effects

Auto/color/black/Negative

Back-light compensation

On/off

White balance

On/off/indoor/outdoor

others

Menu

English

RS485 Protocols

PELCO-D,PELCO-P ,Hikvision,DAHUA

Power supply

DC 12V 2A

Power consumption

10 MAX(without heating)

Working Temperature/Humidity

-20°C-60°C,≤90%RH(frostless)

Protection Grade

TVS3000V lightning protection, surge protection and voltage transient protection, weather proof (for indoor): IP65

Outlook design

Mini 4 inch

Package dimension(mm)

245×245×250

Weight(Kg)

2.0
