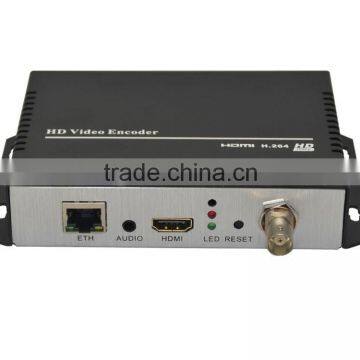

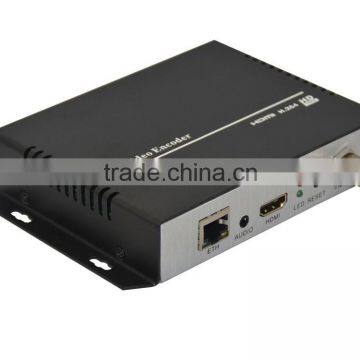

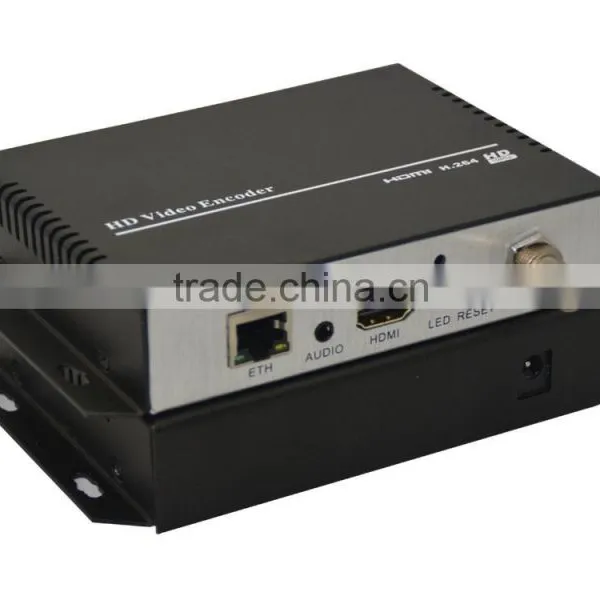

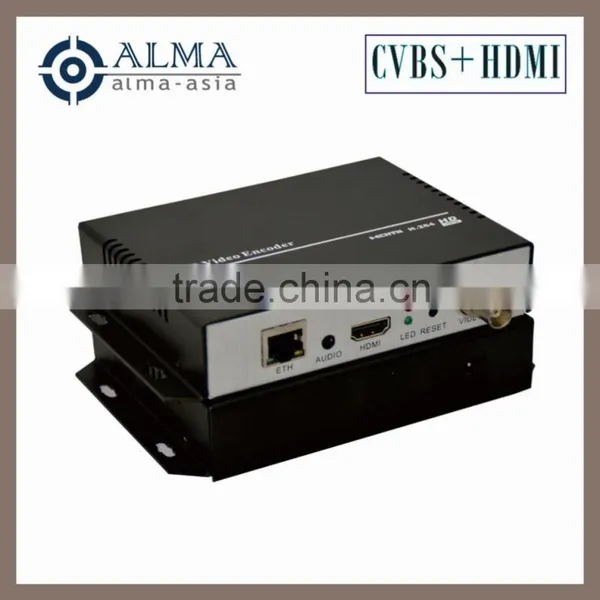

This HDMI +BNC video encoder will take lower bandwidth to get high definition video signal, it adopts H.264 encoding format, and can encode video & audio at the same time .
Its output TS dual stream design can make it to set the resolution of code steam of every channel according to different requirement .Its high integration and cost-effective design make this device widely used in IPTV systems . Beside, the system is more stable also it supports VLC decode.
Feature:
HDMI+BNC (CVBS) dual interface input at real time
Support ONVIF protocol and NVR recording
It adopts standard H.264 coding format
Audio coding support MPEG1 Audio Layer2
CBR/VBR/ABR code rate controlling , 16kbit/s~16Mbit/s
Support Network interface full-duplex mode 1000M
Support HTTP,UDP,RTSP,RTMP protocol and support unicast &
multicast
The video stream output format : TS/VES/AES ect.
Clean WEB dashboard, Chinese and English are optional.
Support the double streaming output, main streaming + second streaming
Be able to select different streaming resolution.
Support decoding for multi-brand set up box
Support transmit in WAN and LAN .
Support HDCP .
Applications:
As HD encoder for IPTV
Digital HD/SD streaming sever.
Video conference
Replace HD Video Capture Card
Hotel cable TV system
live and recording broadcast for operating room.
live and recording broadcast for education
Digital HD live and recording broadcast for courtroom.
Access to network monitoring platform, support recording broadcast
Specification :
model number | E1002 CVBS | ||
encoder | signal input | interface type | HDMI*1, CVBS*1 |
max resolution | 1920*1080@60HZ | ||
signal ouput | interface type | RJ45*1 | |
signal standard | standard network stream | ||
protocol type | HTTP,ONVIF,RTSP,RTMP ,multicast UDP | ||
size | L * W * H | 16cm * 10cm * 3cm | |
N/W | 0.31kg | ||
power | DC 12V, 1A | ||
work temperature | 0℃-50℃ | ||
storage temperature | -20℃ -85℃ | ||
