Factory Price 600Kva Cummins Diesel Generator, Powered by Cummins KTA19-G8 Engine

Name: Factory Price 600Kva Cummins Diesel Generator, Powered by Cummins KTA19-G8 Engine
Brand: 600Kva Cummins diesel generator
Availability: InStock

FOB Price

US$ 45,000 - 48,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	600Kva Cummins diesel generator
Model Number	KTA19-G8	Output Type	AC Three Phase
Speed	1500rpm/min	Frequency	50Hz
Rated Power	600Kva	Rated Voltage	110V~600V
Rated Current	864A

Product Description

Specifications

Cummins 600Kva diesel generator, powered by Cummins KTA19-G8 engine
Stamford alterantor
Deepsea control panel
High quality

600Kva Cummins diesel generator (KTA19-G8)

Main technical data

Cummins engine

Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

24V DC start motor;

Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;

Equipped with industrial silencer and flexible exhaust hose;

Equipped with CHINT MCCB circuit breaker;

Designed to Comply with ISO8528/GB2820;

Powered by Cummins engine,Controlled by Deepsea panel

Voltage

Phase

P.F

(COS)

Output

(KVA)

400/230V

0.8

600

Remark

60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements.

Engine

Cummins 600Kva diesel generator engine data

Engine Model	KTA19-G8
Number of Cylinders	6 cylinders, Vertical in line
Cycle	4 stroke
Aspiration	Turbocharged and after water cooled
Bore×Stroke	159mm x159mm
Displacement	18.9L
Compression ratio	13.9:1
Standby Power/Speed	575KW / 1500rpm
Speed Governor	electrical
Cooling System	Forced water cooling cycle
Steady speed droop	≤1%
Total lubrication system capacity	50L
Coolant capacity (engine only)	30L
Fuel Consumption at 100% Load	128L
Starter Motor	DC24V,
Alternator	AC24V

Alternator

Alternator brand	Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
Prime power	600Kva
Frequency/speed	50HZ/1500rpm (60Hz/1800rpm)
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

Control panel

The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.

Pictures FYI

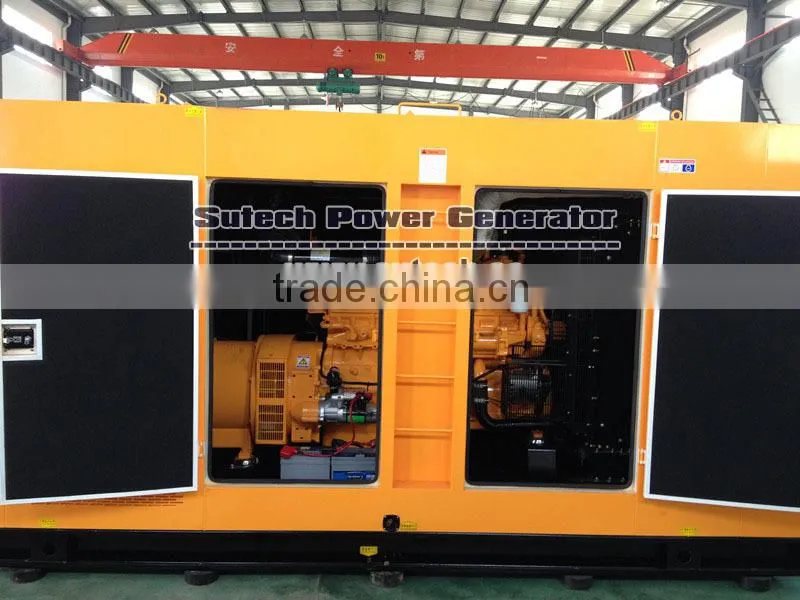

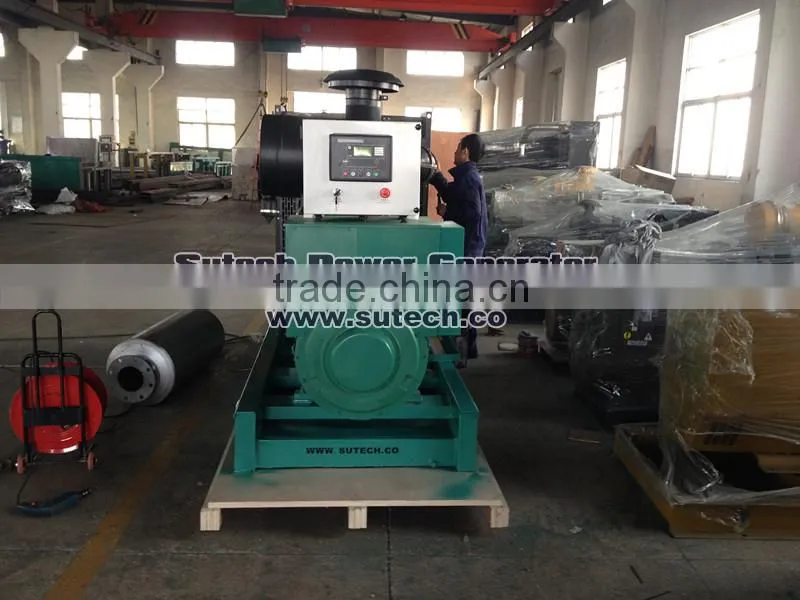

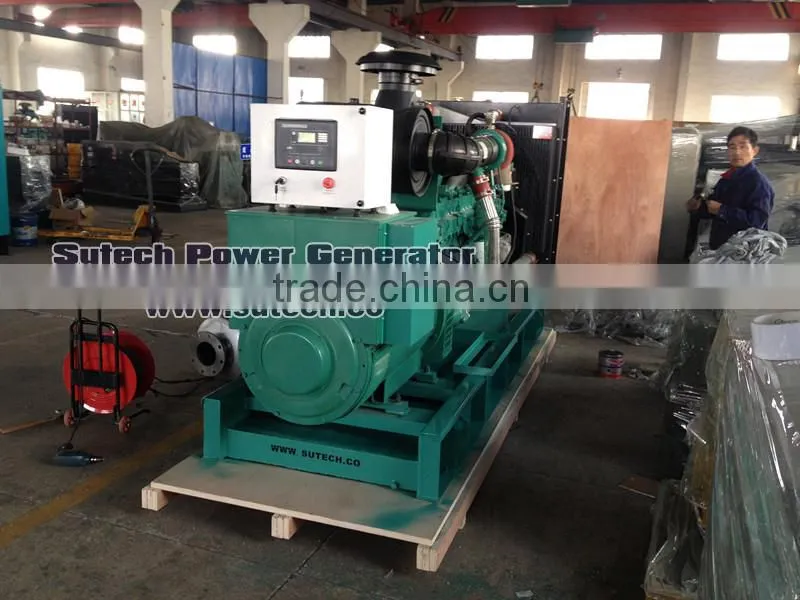

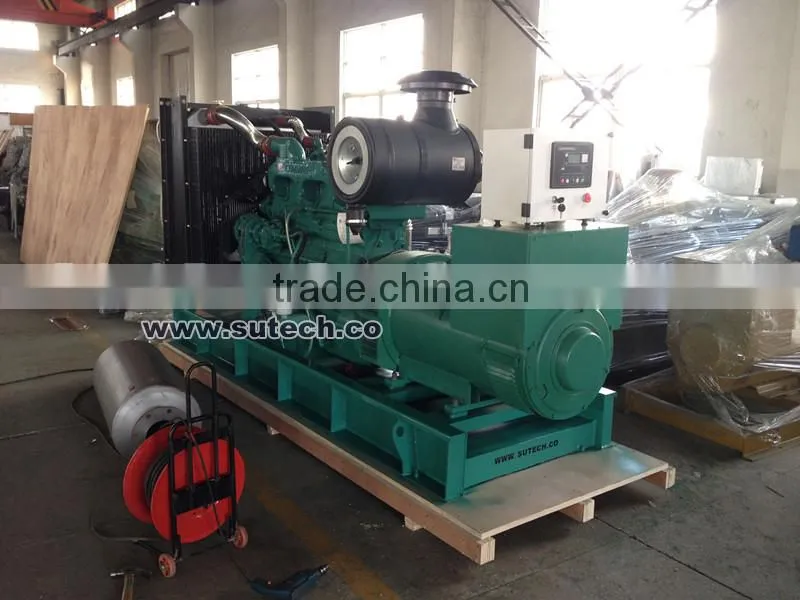

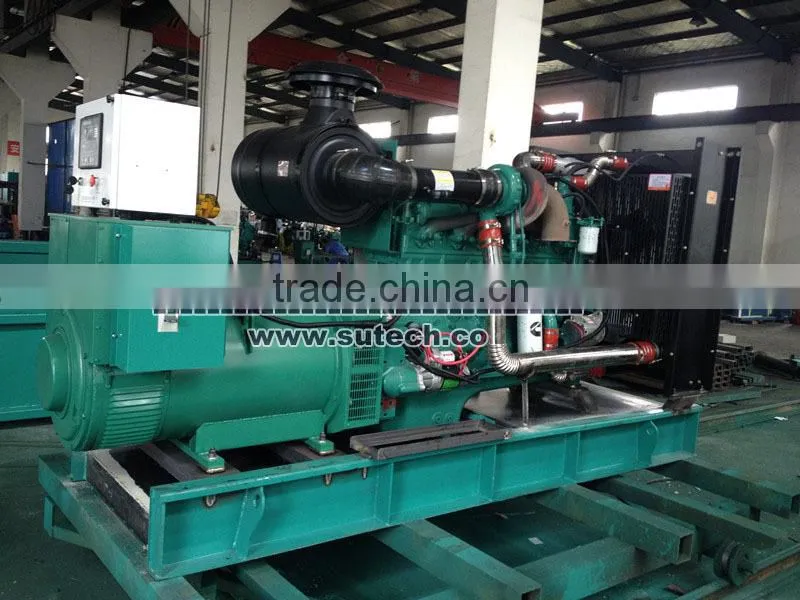

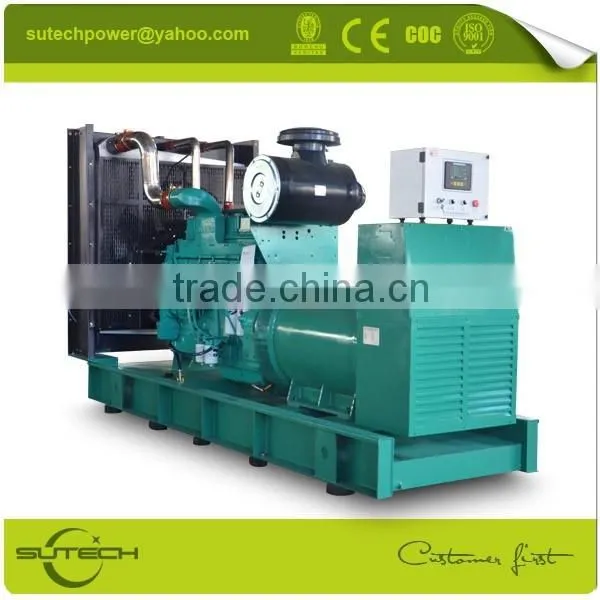

600Kva Cummins diesel generator

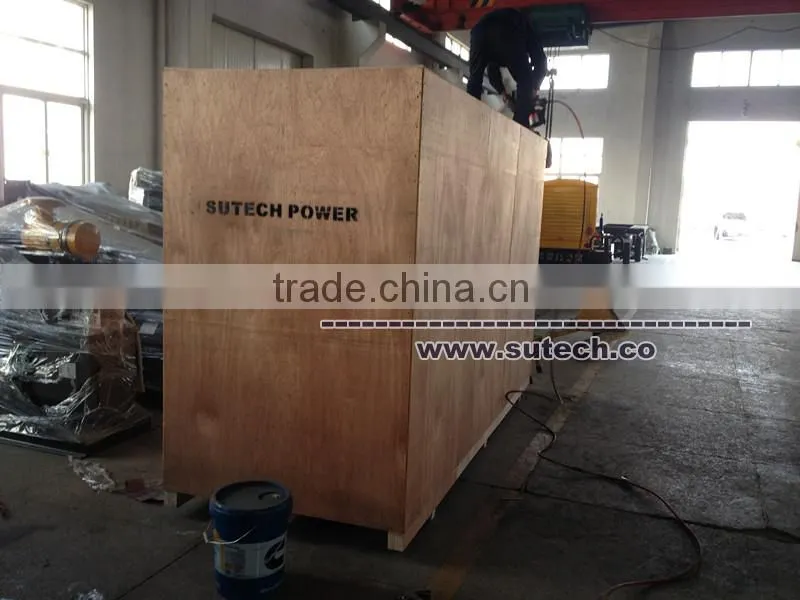

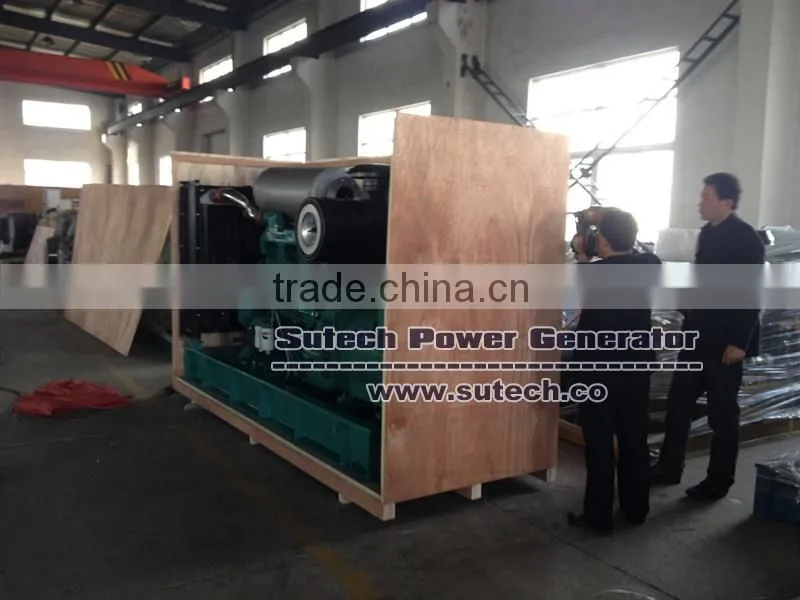

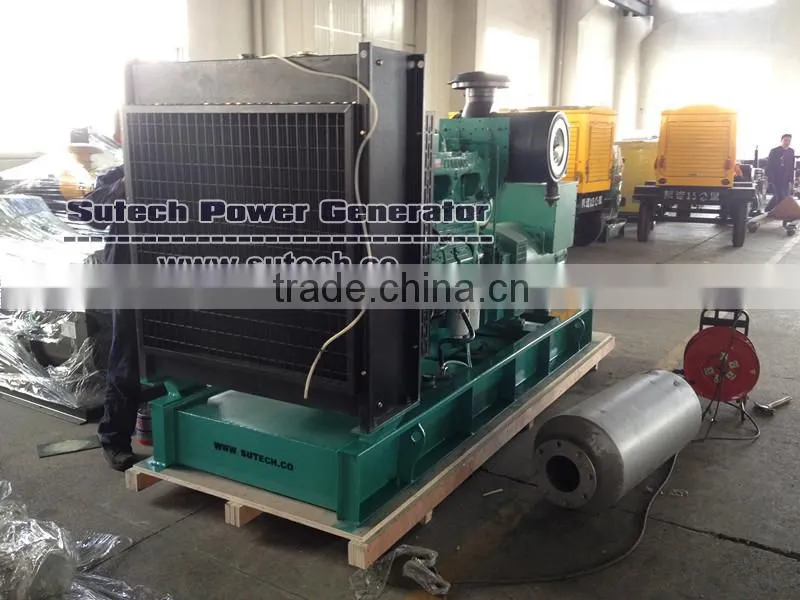

600Kva Cummins diesel generator (Packing)
