Generator 25Kva, powered by Cummins 4B3.9-G2 engine

Name: Generator 25Kva, powered by Cummins 4B3.9-G2 engine
Brand: Cummins
Price: USD $5,000 - 7,500 / Set

FOB Price

USD $5,000 - $7,500 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	Cummins	Model Number:	4B3.9-G2
Output Type:	AC Three Phase	Speed:	1500rpm/min	Frequency:	50Hz
Rated Power:	25Kva	Rated Voltage:	110V~600V	Rated Current:	36a

Product Description

Specifications

25Kva generator, powered by Cummins 4B3.9-G2 engine
Stamford alterantor
Deepsea control panel
High quality

25Kva generators (4B3.9-G2)

Main technical data

Cummins engine

Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

24V DC start motor;

Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;

Equipped with industrial silencer and flexible exhaust hose;

Equipped with CHINT MCCB circuit breaker;

Designed to Comply with ISO8528/GB2820;

Powered by Cummins engine,Controlled by Deepsea panel

Voltage

Phase

P.F

(COS)

Output

(KVA)

400/230V

0.8

Remark

60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements.

Engine

Cummins diesel generator power capacity

Engine Model	4B3.9-G2
Engine manufacturer	Cummins
Number of Cylinders	4 cylinders
Cylinders arrangement	Vertical in line
Cycle	4 stroke
Aspiration	Naturally
Bore×Stroke	102mm x120mm
Displacement	3.9L
Compression ratio	16.5:1
Prime Power/Speed	24KW / 1500rpm
Standby Power/Speed	26KW / 1500rpm
Speed Governor	electrical
Cooling System	Forced water cooling cycle
Steady speed droop	≤1%
Total lubrication system capacity	11L
Coolant capacity (engine only)	7.2L
Fuel Consumption at 100% Load	226 g/kw.h
Starter Motor	DC24V,
Alternator	AC24V

Alternator

Alternator brand	Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
Prime power	25Kva
Frequency/speed	50HZ/1500rpm (60Hz/1800rpm)
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

Control panel

The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.

Pictures FYI

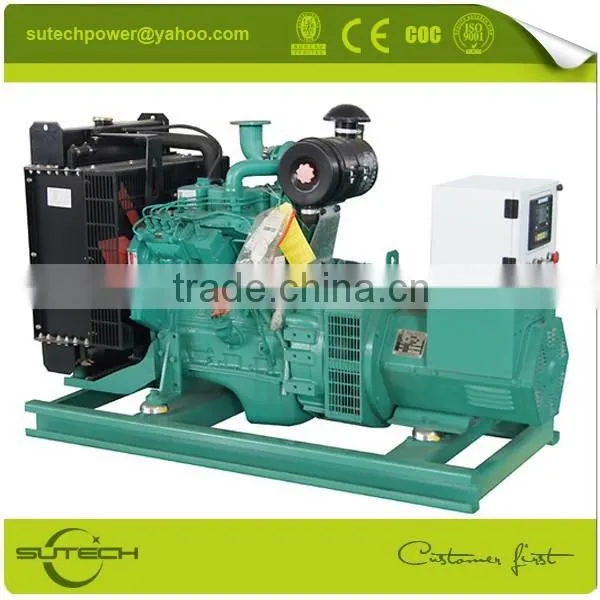

25Kva Cummins silent diesel generator

25Kva Cummins silent diesel generator (Shipping)
