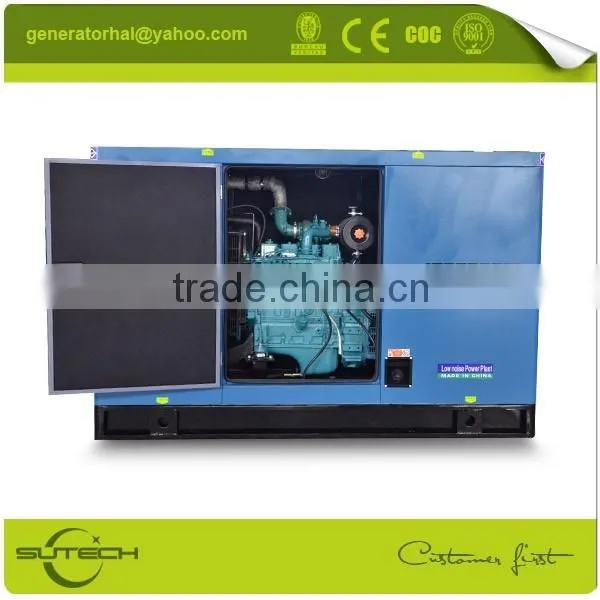

50kva Silent Generator Powered by Cummins 4BTA3.9-G2 Engine

Name: 50kva Silent Generator Powered by Cummins 4BTA3.9-G2 Engine
Brand: sutech
SKU: 112392167
Availability: InStock

50kva Silent Generator Powered by Cummins 4BTA3.9-G2 Engine thumbnail-1

50kva Silent Generator Powered by Cummins 4BTA3.9-G2 Engine photo-1

US$ 7,260 - 8,350 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

sutech

Model Number:

ST-C50GF

Contact Supplier Request Quote Chat Now

Taizhou Sutech Power Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name sutech

Model Number ST-C50GF

Output Type AC Three Phase

Speed 1500r/min

Frequency 50hz

Rated Power 50KVA/40KW

Rated Voltage 220/380V

Rated Current 72A

Specifications

50kva silent generator powered by Cummins engine
Stamford alterantor
Deepsea control panel
low price,high quality

Product Description

50kva silent generator powered by Cummins engine

Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

24V DC start motor;

Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;

Equipped with industrial silencer and flexible exhaust hose;

Equipped with CHINT MCCB circuit breaker;

Designed to Comply with ISO8528/GB2820;

Voltage

Phase

P.F

(COS)

Output

(KVA)

400/230V

0.8

Remark

60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements.

Our factory

Engine parameter

Engine Model	4BTA3.9-G2
Engine manufacturer	Cummins
Number of Cylinders	4 cylinders
Cylinders arrangement	Vertical in line
Cycle	4 stroke
Aspiration	Naturally
Bore×Stroke	102mm x120mm
Displacement	3.9L
Compression ratio	16.5:1
Prime Power/Speed	50KW / 1500rpm
Standby Power/Speed	55KW / 1500rpm
Speed Governor	electrical
Cooling System	Forced water cooling cycle
Steady speed droop	≤1%
Total lubrication system capacity	11L
Coolant capacity (engine only)	7.2L
Fuel Consumption at 100% Load	210 g/kw.h
Starter Motor	DC24V,
Alternator	AC24V

Alternator parameter

Alternator brand	Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
Prime power	50Kva
Frequency/speed	50HZ/1500rpm (60Hz/1800rpm)
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

Control panel

The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.

Packaging & Shipping

Packaging:plywood case

Shipping:From Shanghai

Our Services

12 months or 1000 hours of warranty time for all our products. We take the full responsibility only in the fault that created by the quality,the wearing-parts, daily consumables and human error of operating and maintenance are not included in.
