Help CenterJacketed Boiler
Related Products
jacketed boiler
Summary:
The equipment is widely used for processing sugar, pharmacy, dairy, wine, cake, beverage, confection and can etc., and can also be used for soup cooking, meat stewing and porridge cooking in large scale restaurant or refectory. It is a good device for food processing, which can enhance quality, shorten time and improve labor conditions.
Specifications:
1. By adopting steam as heat source, it has such features as high heating area and heating efficiency, even heating, short liquid material boiling time and easily controlled heating temperature etc.

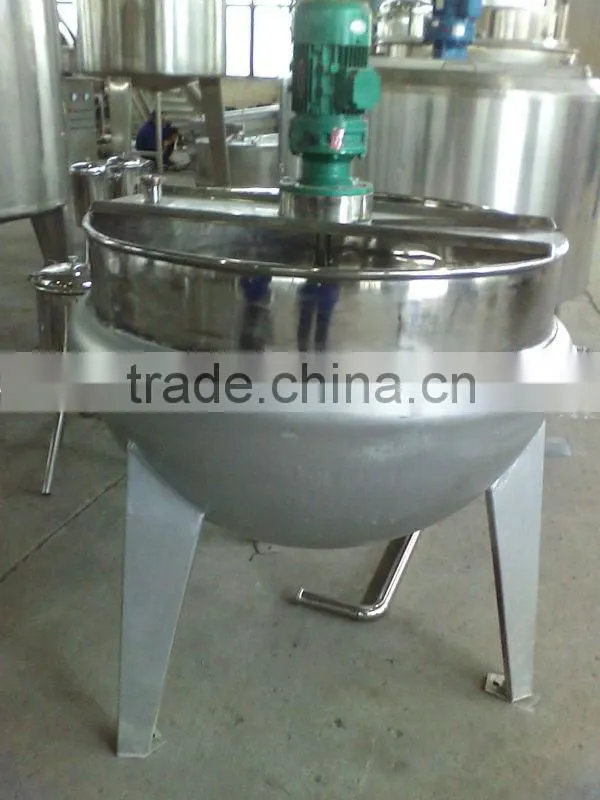

2. G model is fixed type jacketed boiler, QG model tilting jacketed boiler, JG model fixed blending type jacketed boiler, and QJG tilting blending type jacketed boiler.
Technical parameters:
Model |
G50 |
G100 |
G200 |
G300 |
G400 |
G500 |
G600 |
Equipment volume (L) |
50 |
100 |
200 |
300 |
400 |
500 |
600 |
Working pressure (Mpa) |
0.30 |
||||||
Evaporation (L) |
30 |
40 |
65 |
75 |
100 |
150 |
200 |
Heating area(m2) |
0.40 |
0.60 |
1.00 |
1.44 |
1.65 |
1.90 |
2.30 |
Energy consumption |
33 |
44 |
72 |
110 |
136 |
165 |
190 |
Boiler inner diameter x depth (cm) |
60x45 |
70x52 |
80x55 |
90x63 |
100x68 |
100x75 |
120x78 |
Blending speed (r/min) |
36 |
||||||
Motor power (Kw) |
0.37 |
0.37 |
0.55 |
0.75 |
0.75 |
1.1 |
1.1 |
Structural form |
Fixed / tilting / lending |
||||||
