Continuous Type Spraying,sterilizing and Cooling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
kewei
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Jiangsu, China
Brand Name
kewei
Model Number
PLS
Type
Other, sterilizing and cooling machine

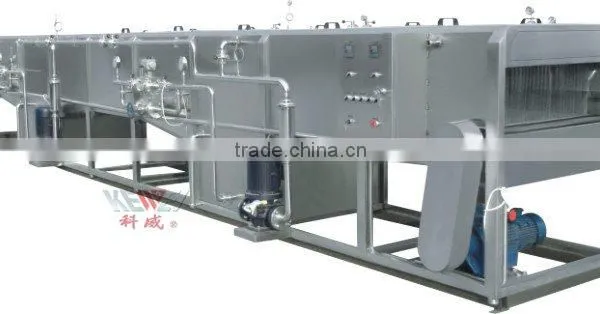

continuous type spraying,sterilizing and cooling machine
Continuous spraying sterilizer is designed and made on the basis of absorbing and digesting abroad machine. It adopts warm water to preheat, sterilize with recycling hot water, recycling warm water to pre-cool, and cooling water to cool; it is with the advantages of sterilizing temperature automatic control, and adjustable sterilizing time;and can be widely used in sterilizing and cooling of juice and beverage in various bottles and cans, electrolyte beverage, wine and condiments. It can be designed and made to the sterlization conditions and production provided by the customer.
Technical parameters:
| Name | PLS-1000 | PLS-2000 | PLS-3000 | PLS-5000 | |
| The hingest sterilizing temperature | 100°C | ||||
| The width of sterilization transferring belt | 1500mm | ||||
| Transferring belt speed | 110-553mm | ||||
| Heating steam pressure | 0.4Mpa | ||||
| Length of sterilization step(mm) | 9000 | 16000 | 22000 | 320000 | |
| Length of pre Cooling step(mm) | 1200 | 16000 | 1800 | 2200 | |
| Length of cooling step(mm) | 3000 | 5000 | 8000 | 10000 | |
| Heating recycling water volume(m3) | 21 | 25 | 35 | 50 | |
| Power(kw) | 9.6 | 10.6 | 13.6 | 16.5 | |
| Size(mm) | Length | 9880 | 17880 | 23800 | 34880 |
| Width | 2250 | ||||
| Height | 1735 | ||||
