External Circulating Continuous Concentrating Boiler

External Circulating Continuous Concentrating Boiler thumbnail-1
External Circulating Continuous Concentrating Boiler photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
kewei
Model Number:
NS
Contact Supplier Request Quote Chat Now
Jiangsu Kuwai Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name kewei
Model Number NS
Type Other

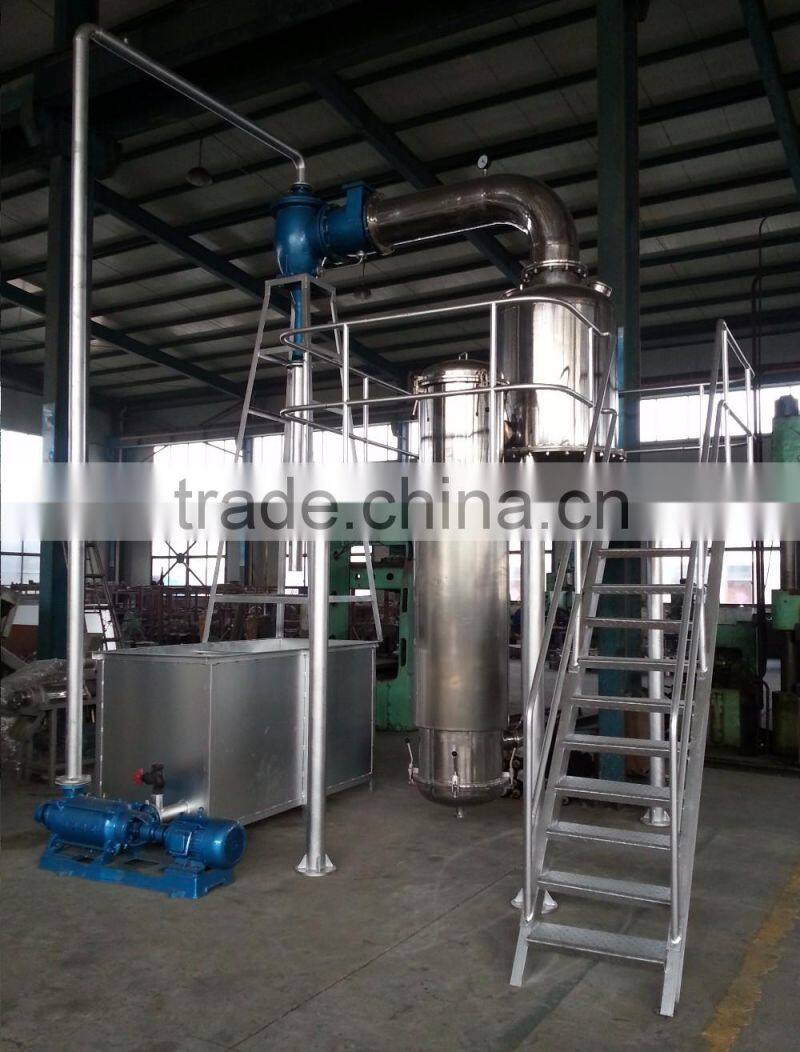

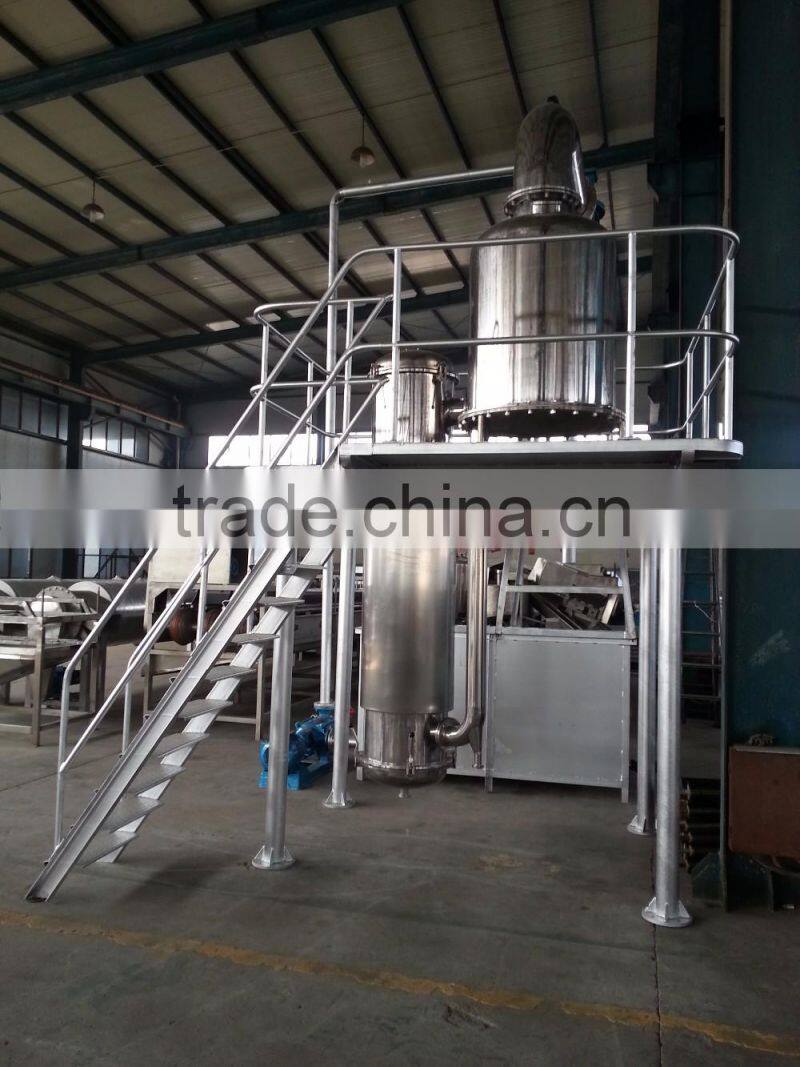

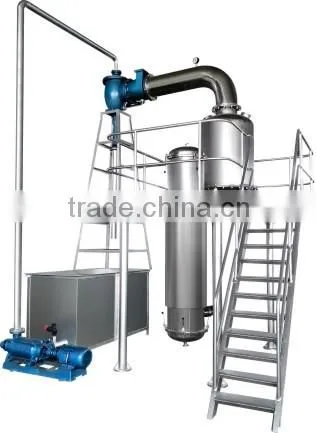

The equipment is a single-effect continuous type vacuum concentrating device, which is composed of vessel, heater, separator, hydraulic injector, operation platform and multistage pump etc.

It is applicable to vacuum concentration of heat sensitive materials (such as fruit juice, vegetable juice and liquid medicine etc. flowing materials) under low temperature. It has such features as small volume, simple structure, convenient operation, cleaning and maintenance. Parts that contact materials are made of SUS304 stainless steel.

1  Evaporating temperature: 50~55oC;
2  Steam pressure ≤0.15MPa;
3  Type: tubular
4  Vacuum degree: -0.083~0.0906MPa;

Technical parameters:

Model  Evaporation Circulating water consumption  Steam consumption  Total capacity installed  Heat exchange Outline dimensions (m)
 NS-300  300L/h  11.6m3/h  330kg/h  5.5KW  2.67m2 2.8×2.65×3.8
 NS-500  500L/h  19.3m3/h  560kg/h  11KW  4.6m2 3.04×2.84×4.44
 NS-1000  1000L/h  39m3/h  1130kg/h  11KW  10m2  3.13×3.0×4.5

external circulating continuous concentrating boiler                         external circulating continuous concentrating boiler
