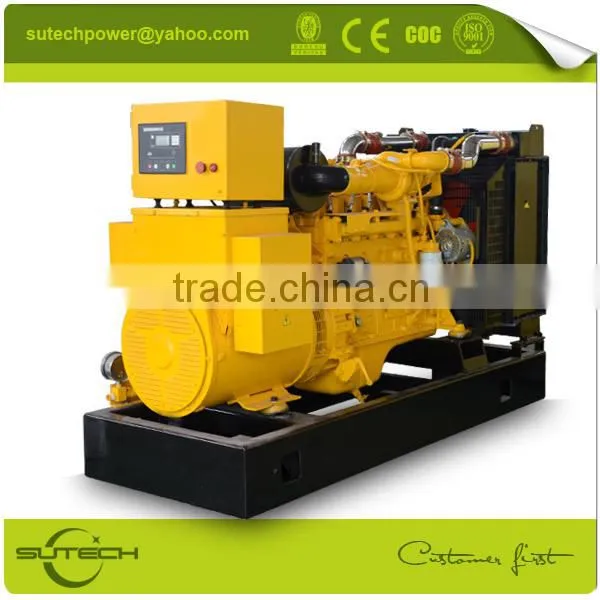

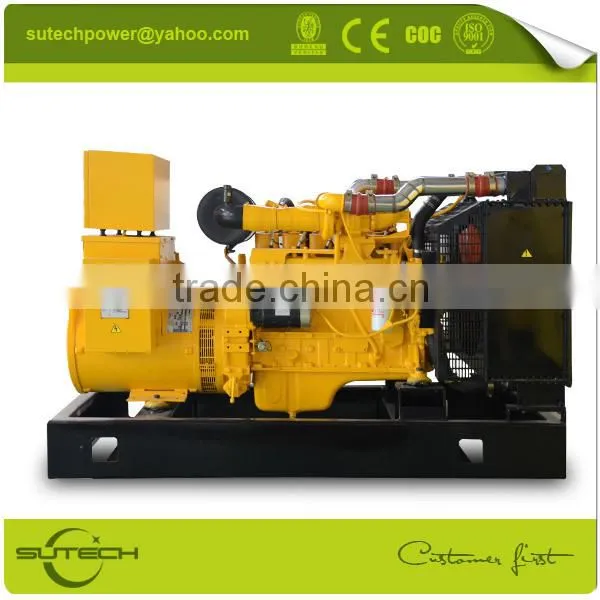

660Kw/825kva silent generator set, powered by Shangchai SC33W990D2 engine
Stamford alterantor
Deepsea control panel
High quality
Voltage |
HZ |
Phase |
P.F (COS) |
Output (KVA) |
400/230V |
50 |
3 |
0.8 |
825 |
Remark |
60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements. |
|||
Manufacturer |
Shangchai Diesel Engine Co.,Ltd. |
Brand |
Shangchai |
Model |
SC33W990D2 |
engine power(kw) |
726 |
revolution per minute(rpm) |
1500 |
total displacement(L) |
32.8 |
cylinders orientation |
12 V line |
bore*stroke(mm*mm) |
180*215 |
governor type |
electrical |
aspration system |
AAC |
injection |
direct |
cooling |
water cooled |
electrical system(VDC) |
24 |
Alternator brand |
Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power |
100Kva |
Frequency/speed |
50HZ/1500rpm (60Hz/1800rpm) |
Exciter type |
Single bearing, Brushless, Self-excited |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation Grade |
H |
Protection Grade |
IP23 |
Control Panel
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.
