Help CenterIn Stock! SC7H250D2 180kw/225Kva Shangchai Dongfeng Diesel Generator Set
Related Products
-
In Stock! SC8D220D2 150kw/187.5Kva Shangchai Dongfeng Diesel Generator SetUS$ 12,900 - 15,200MOQ: 1 Set -
In Stock! SC4H160D2 100kw/125Kva Shangchai Dongfeng Diesel Generator Set PriceUS$ 8,900 - 10,500MOQ: 1 Set
-
In Stock! 6135AD-3 100kw Shangchai Dongfeng Diesel Generator SetUS$ 11,500 - 13,000MOQ: 1 Set
-
In Stock! SC8D280D2 200kw/250Kva Shangchai Dongfeng Diesel Generator SetUS$ 14,000 - 17,100MOQ: 1 Set
-
In Stock! SC4H95D2 50kw/60Kva Shangchai Dongfeng Diesel Generator SetUS$ 6,400 - 8,600MOQ: 1 Set

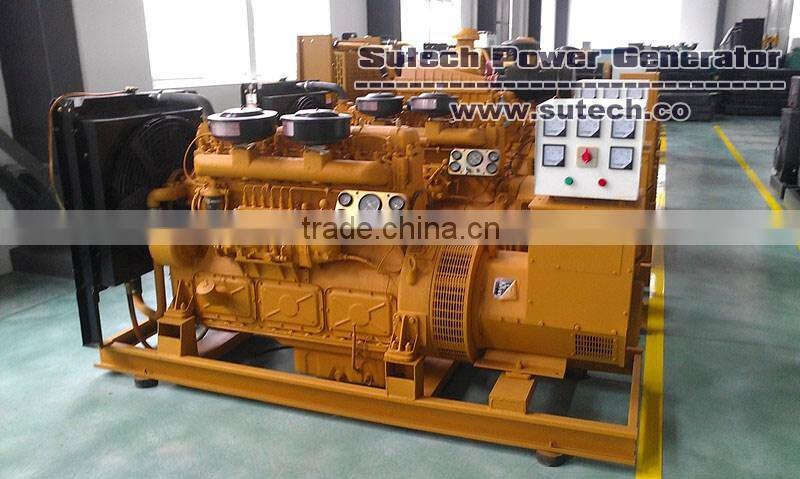

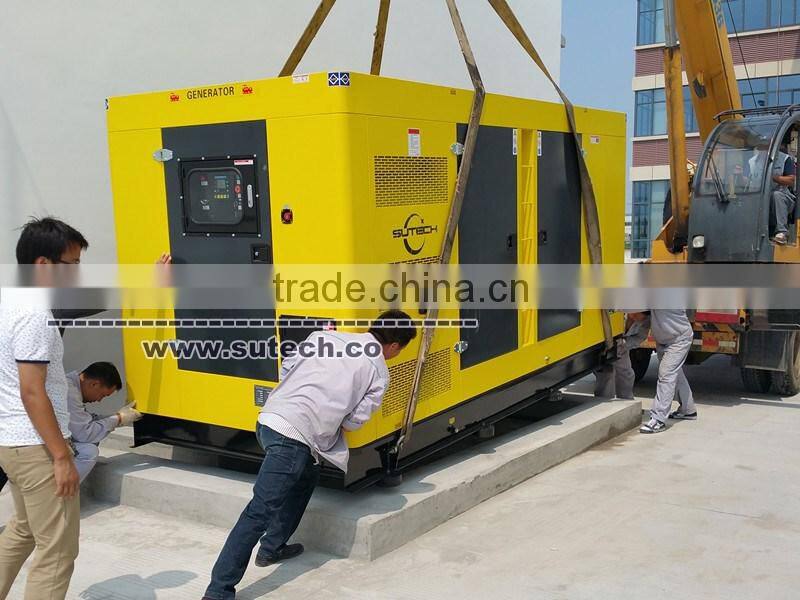

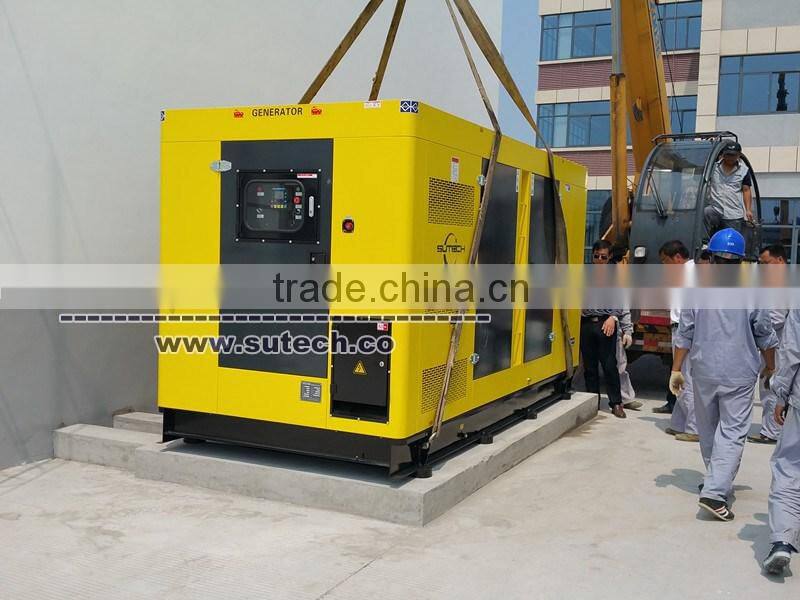

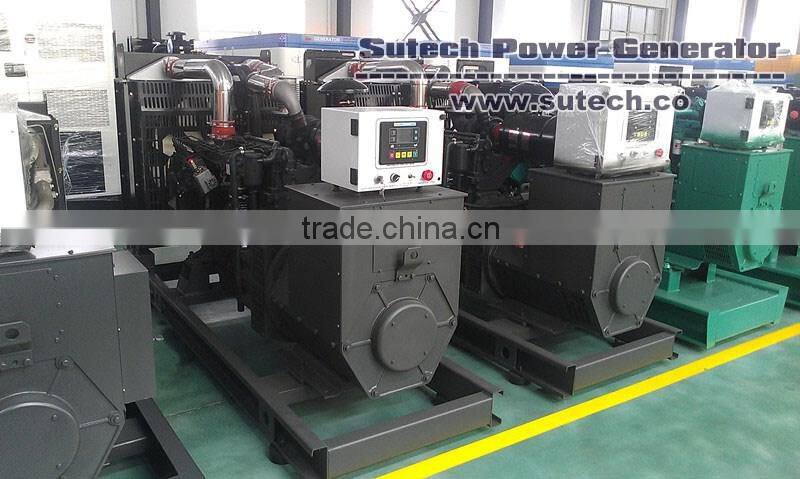

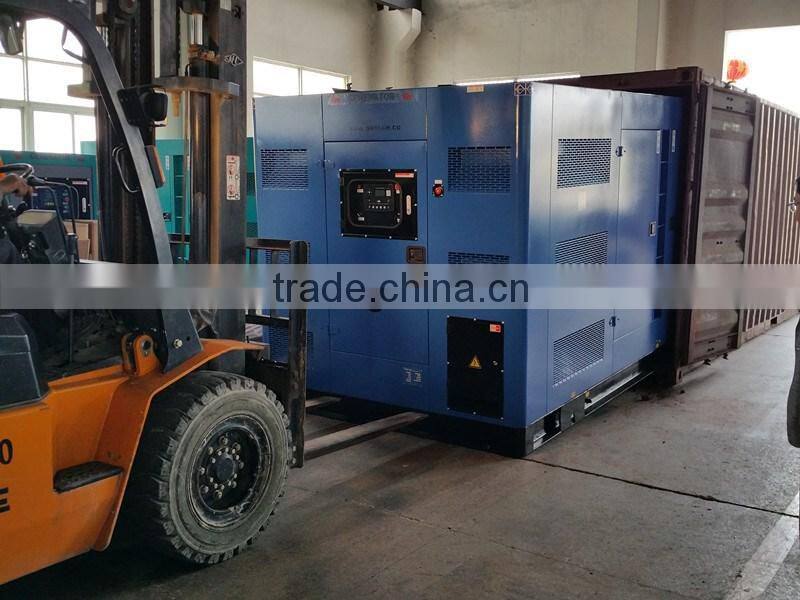

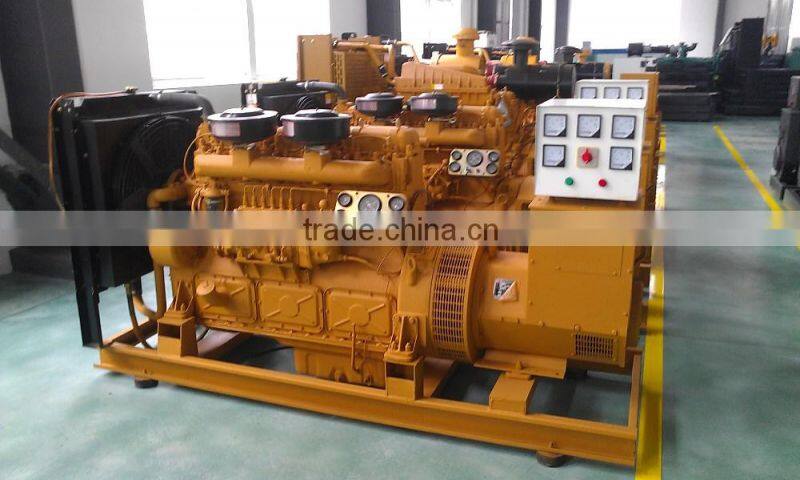

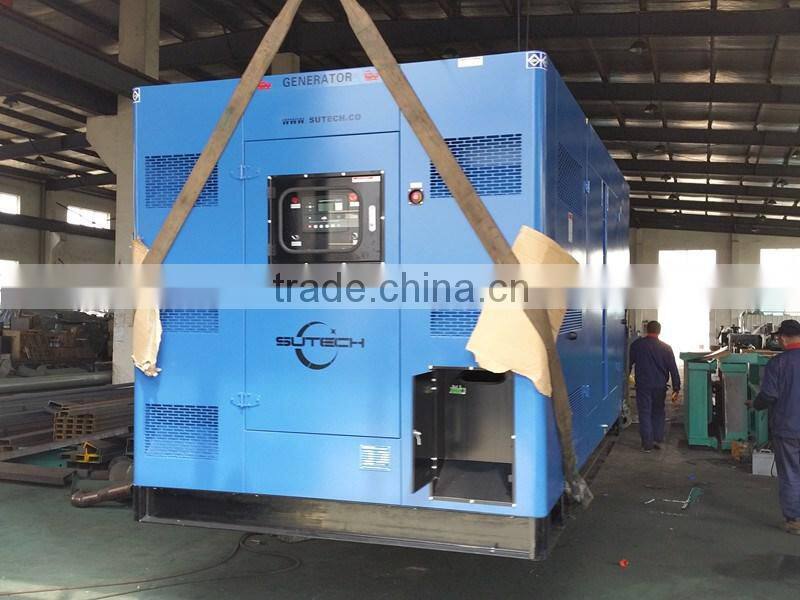

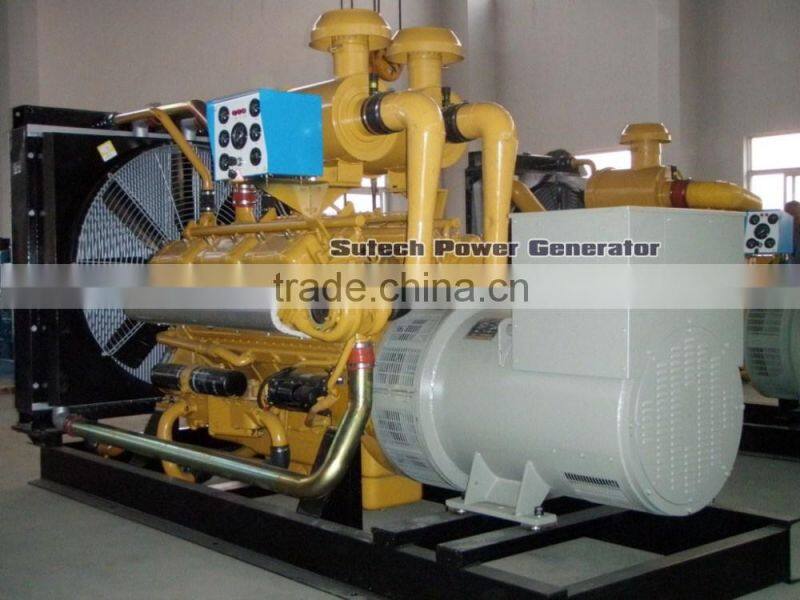

180kw/225Kva silent generator set, powered by Shangchai SC7H250D2 engine
Stamford alterantor
Deepsea control panel
High quality
Voltage | HZ | Phase | P.F (COS) | Output (KVA) |
400/230V | 50 | 3 | 0.8 | 225 |
Remark | 60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements. | |||
Manufacturer | Shangchai Diesel Engine Co.,Ltd. |
Brand | Shangchai |
Model | SC7H250D2 |
engine power(kw) | 184.8 |
revolution per minute(rpm) | 1500 |
total displacement(L) | 8.27 |
cylinders orientation | 6 in line |
bore*stroke(mm*mm) | 108*130 |
governor type | electrical |
aspration system | AAC |
injection | direct |
cooling | water cooled |
electrical system(VDC) | 24 |
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power | 100Kva |
Frequency/speed | 50HZ/1500rpm (60Hz/1800rpm) |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
Control Panel
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.
