Cheap! 70kw Shangchai Generator Diesel With 4-stoke Diesel Engine SDEC 4135D-1 Generator and Three Phase Alternator

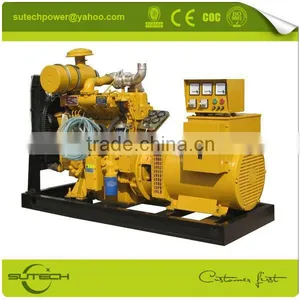

Cheap! 70kw Shangchai Generator Diesel With 4-stoke Diesel Engine SDEC 4135D-1 Generator and Three Phase Alternator thumbnail-1
Cheap! 70kw Shangchai Generator Diesel With 4-stoke Diesel Engine SDEC 4135D-1 Generator and Three Phase Alternator thumbnail-2
Cheap! 70kw Shangchai Generator Diesel With 4-stoke Diesel Engine SDEC 4135D-1 Generator and Three Phase Alternator thumbnail-3
Cheap! 70kw Shangchai Generator Diesel With 4-stoke Diesel Engine SDEC 4135D-1 Generator and Three Phase Alternator thumbnail-4
Cheap! 70kw Shangchai Generator Diesel With 4-stoke Diesel Engine SDEC 4135D-1 Generator and Three Phase Alternator thumbnail-5
Cheap! 70kw Shangchai Generator Diesel With 4-stoke Diesel Engine SDEC 4135D-1 Generator and Three Phase Alternator photo-1
Cheap! 70kw Shangchai Generator Diesel With 4-stoke Diesel Engine SDEC 4135D-1 Generator and Three Phase Alternator photo-2
Cheap! 70kw Shangchai Generator Diesel With 4-stoke Diesel Engine SDEC 4135D-1 Generator and Three Phase Alternator photo-3
Cheap! 70kw Shangchai Generator Diesel With 4-stoke Diesel Engine SDEC 4135D-1 Generator and Three Phase Alternator photo-4
Cheap! 70kw Shangchai Generator Diesel With 4-stoke Diesel Engine SDEC 4135D-1 Generator and Three Phase Alternator photo-5
US$ 8,000 - 11,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
diesel generator
Model Number:
4135D-1
Contact Supplier Request Quote Chat Now
Taizhou Sutech Power Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name diesel generator
Model Number 4135D-1
Output Type AC Three Phase
Speed 1500 R/min
Frequency 50HZ
Rated Power 70KW/87.5KVA
Rated Voltage 400/230V(adjustable)
Rated Current 126A
Product Description

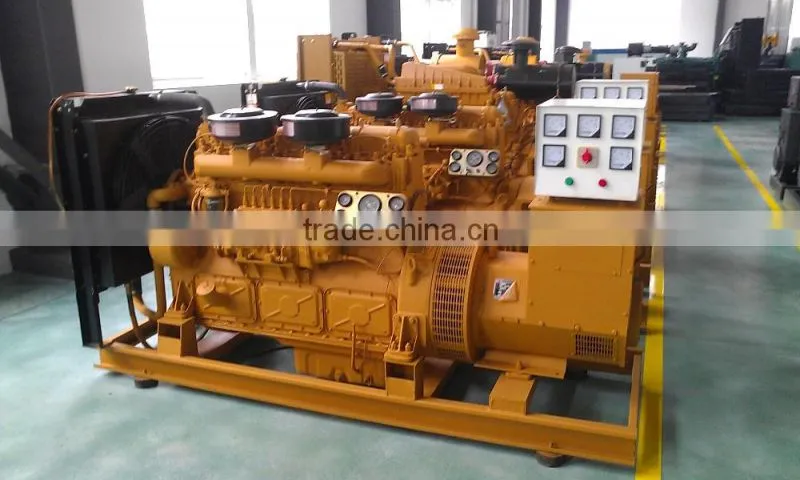

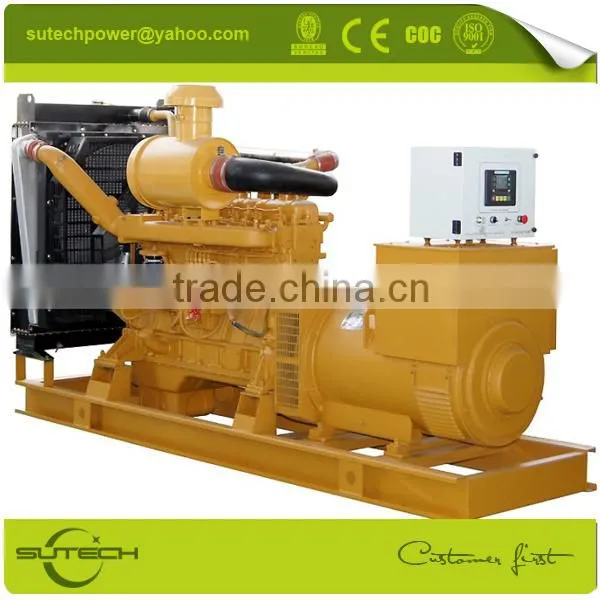

70Kw/87.5Kva silent generator set, powered by Shanghai 4135D-1 engine
Stamford alterantor
Deepsea control panel
High quality



Cheap! 70kw shangchai generator diesel with 4-stoke diesel engine SDEC 4135D-1 generator and three phase alternator

Main Technical Data





Voltage

HZ

Phase

P.F

(COS)

Output

(KVA)

400/230V

50

3

0.8

87.5

Remark

60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements.



Engine



Engine Data

Model

4135AD

Type

In-line 4 Cylinder,4 Cycle

Displacement ,L

8.6

Compression Ration

17.0:1

Aspiration

Natural

Bore*Stroke(mm)

135*150

Rated Speed ,rpm

1500

Governor Type

Electronic

Starting Voltage

24V ,Negative ground

Battery Charging System

24V 35A

Lubricant Capacity ,L

25.2

Coolant Capacity, L

34





Alternator

  Cheap! 70kw shangchai generator diesel with 4-stoke diesel engine SDEC 4135D-1 generator and three phase alternator

Alternator brand

Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…

Prime power

 100Kva

Frequency/speed

50HZ/1500rpm (60Hz/1800rpm)

Exciter type

Single bearing, Brushless, Self-excited

Power factor

0.8

Voltage adjust range

≥5%

Voltage regulation NL-FL

≤±1%

Insulation Grade

H

Protection Grade

IP23

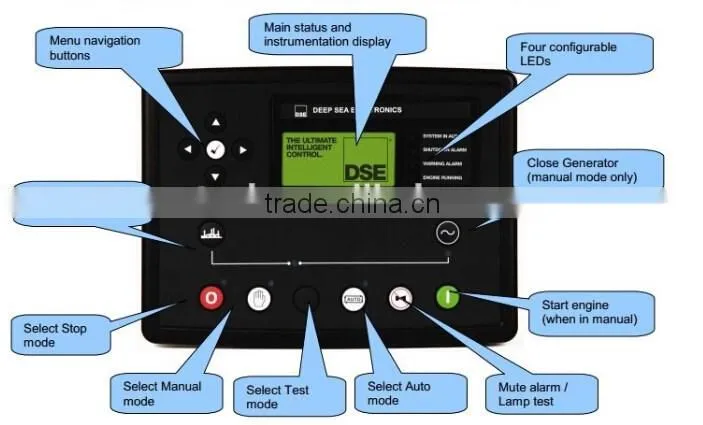

Control Panel

 The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.

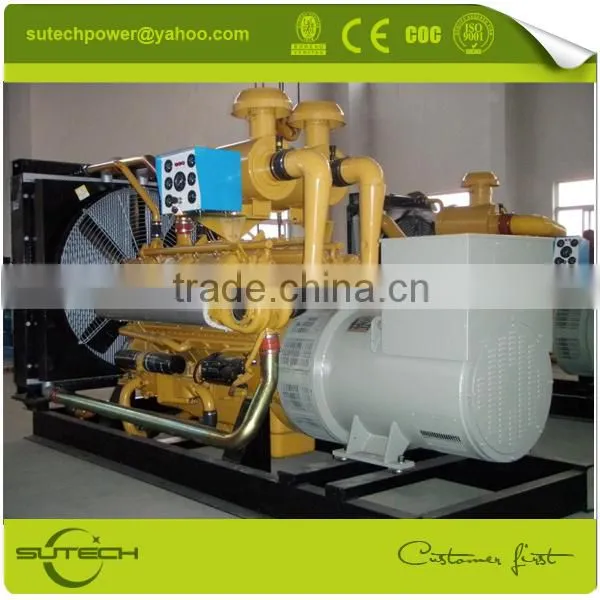

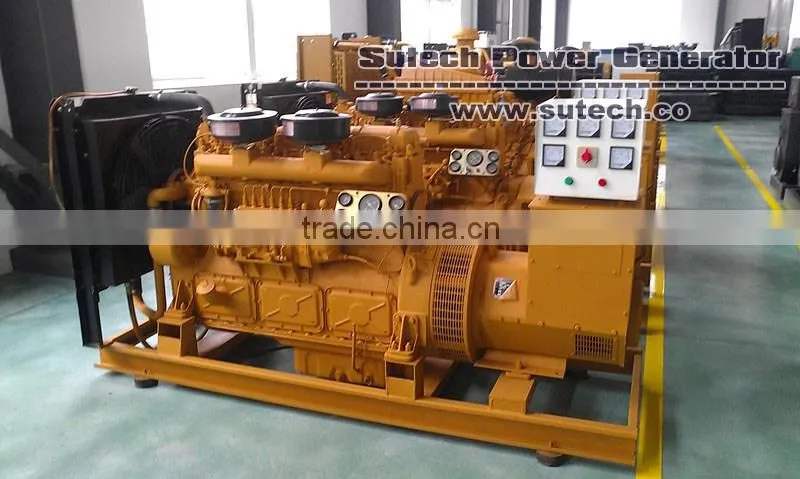

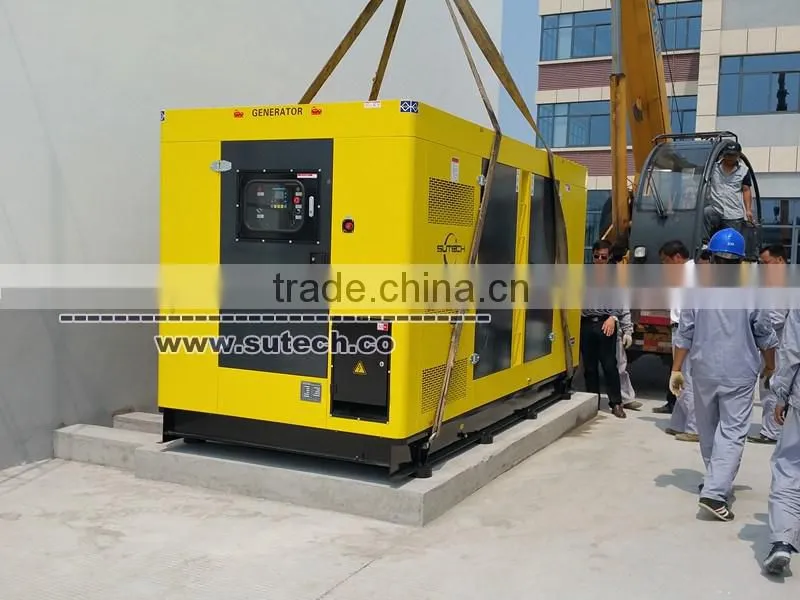

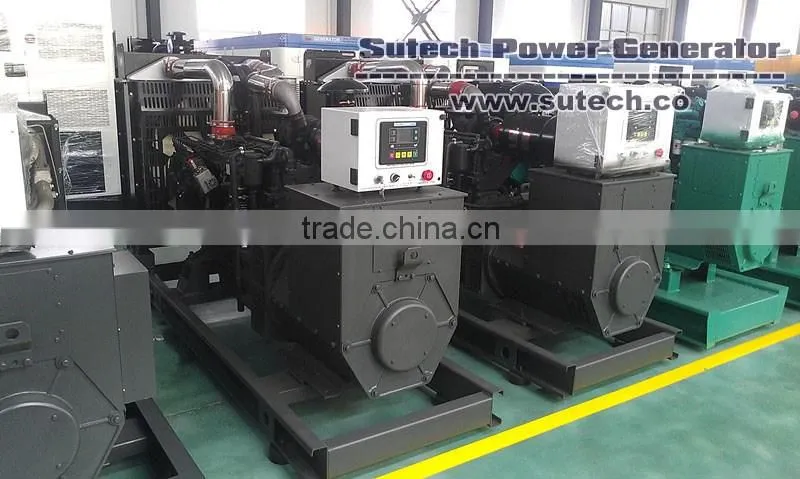

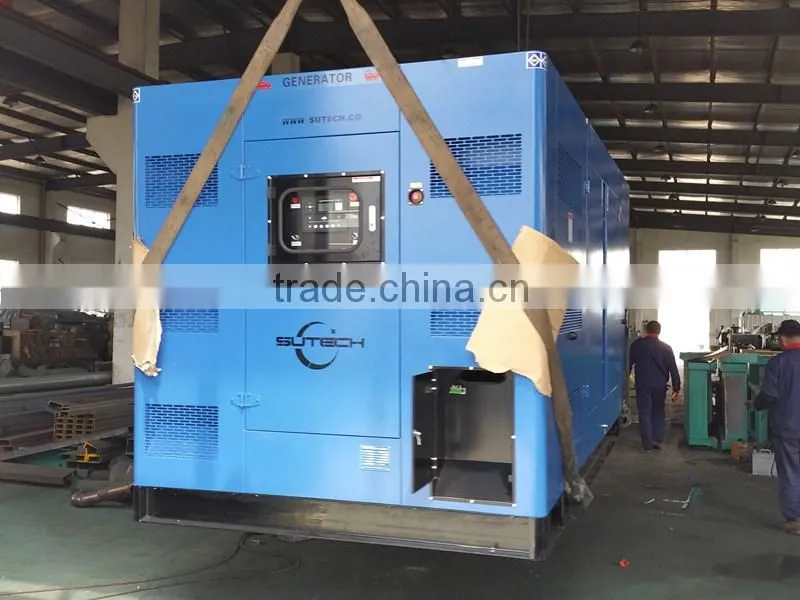

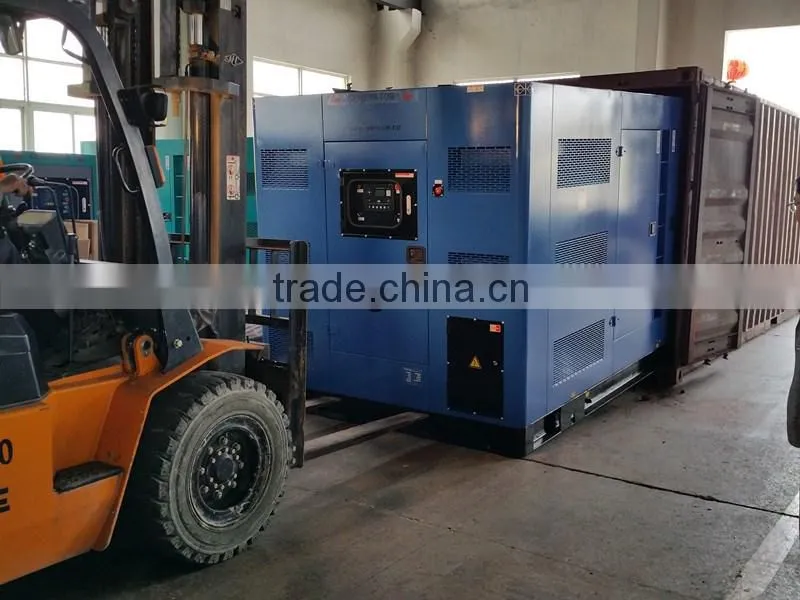

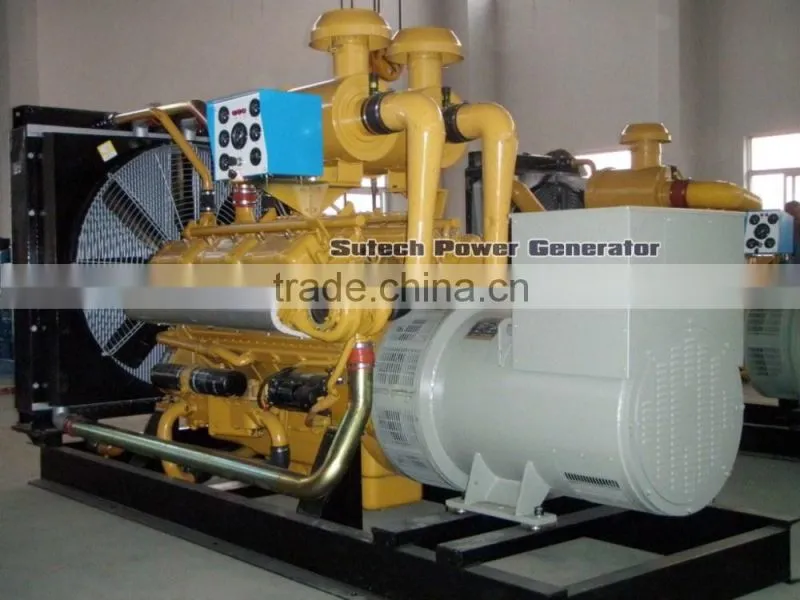

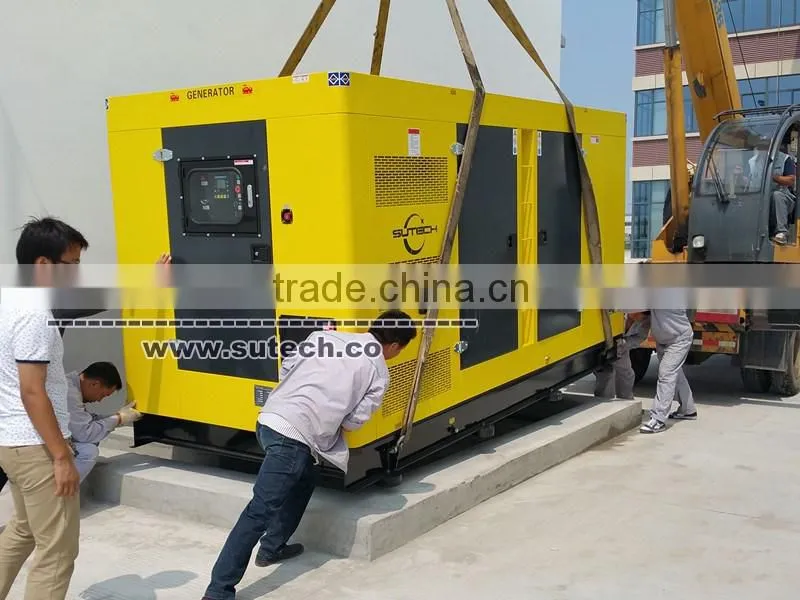

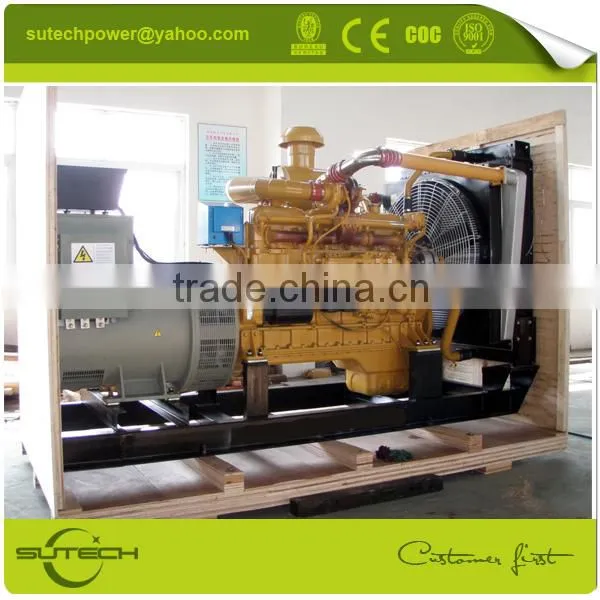

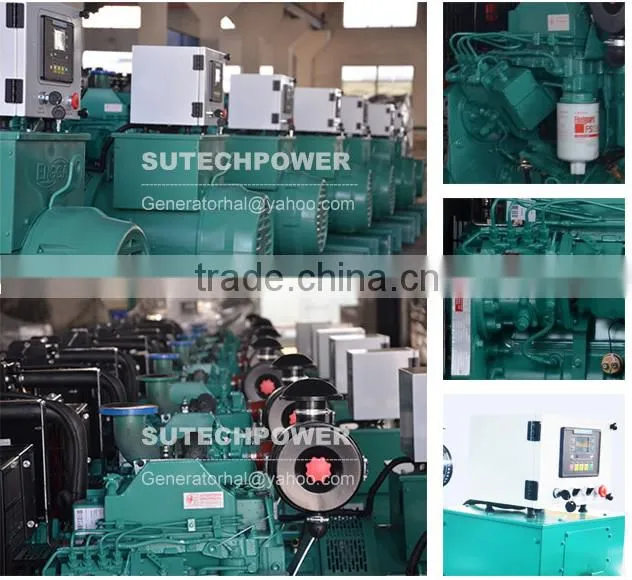

Picture FYI

Cheap! 70kw shangchai generator diesel with 4-stoke diesel engine SDEC 4135D-1 generator and three phase alternatorCheap! 70kw shangchai generator diesel with 4-stoke diesel engine SDEC 4135D-1 generator and three phase alternatorCheap! 70kw shangchai generator diesel with 4-stoke diesel engine SDEC 4135D-1 generator and three phase alternatorCheap! 70kw shangchai generator diesel with 4-stoke diesel engine SDEC 4135D-1 generator and three phase alternatorCheap! 70kw shangchai generator diesel with 4-stoke diesel engine SDEC 4135D-1 generator and three phase alternatorCheap! 70kw shangchai generator diesel with 4-stoke diesel engine SDEC 4135D-1 generator and three phase alternatorCheap! 70kw shangchai generator diesel with 4-stoke diesel engine SDEC 4135D-1 generator and three phase alternatorCheap! 70kw shangchai generator diesel with 4-stoke diesel engine SDEC 4135D-1 generator and three phase alternator
