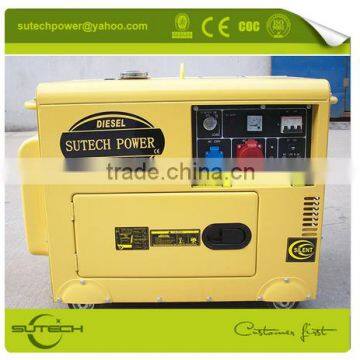

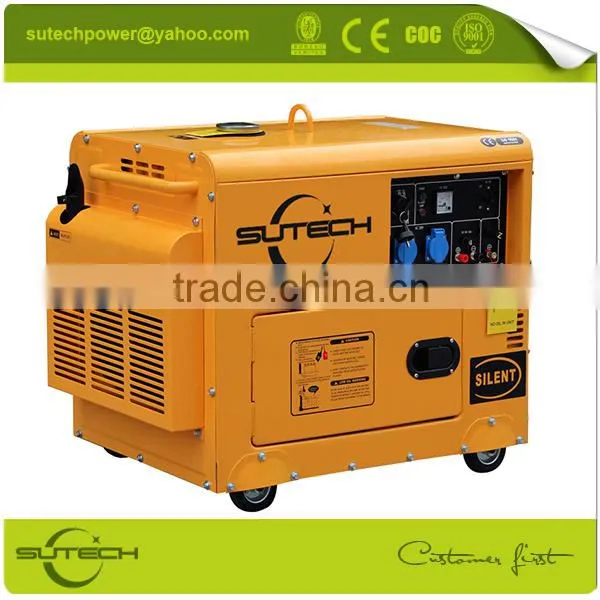

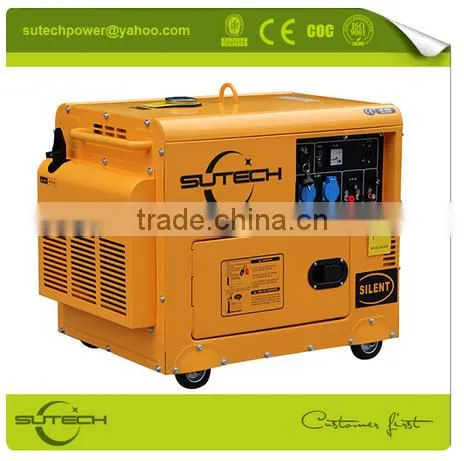

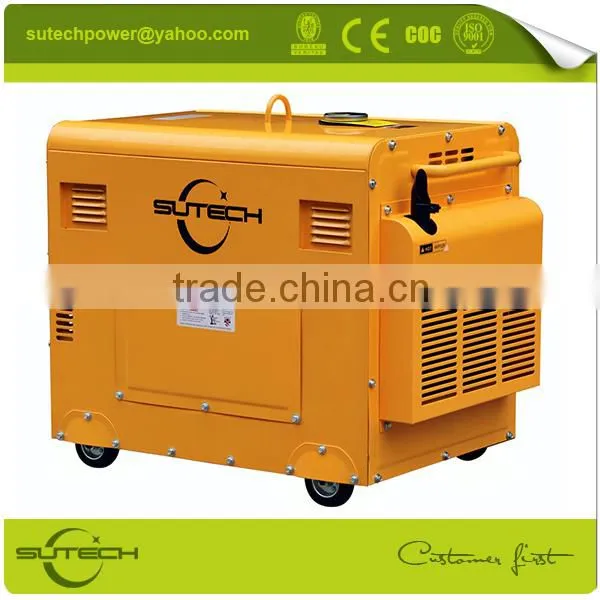

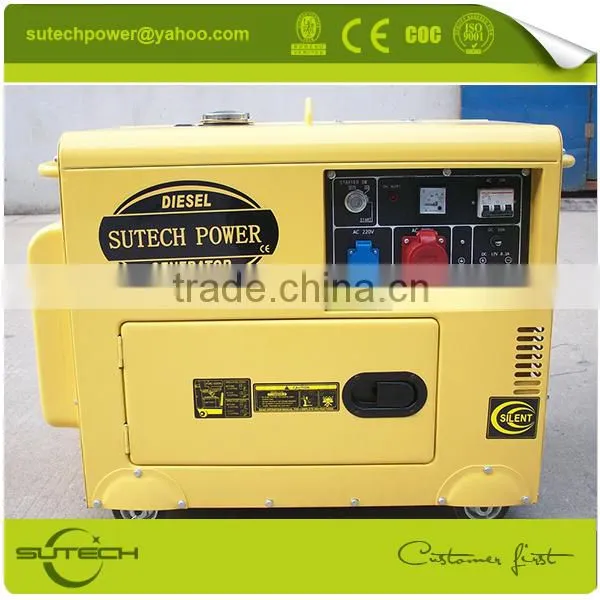

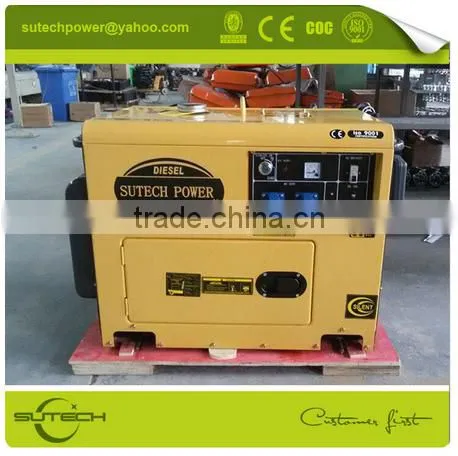

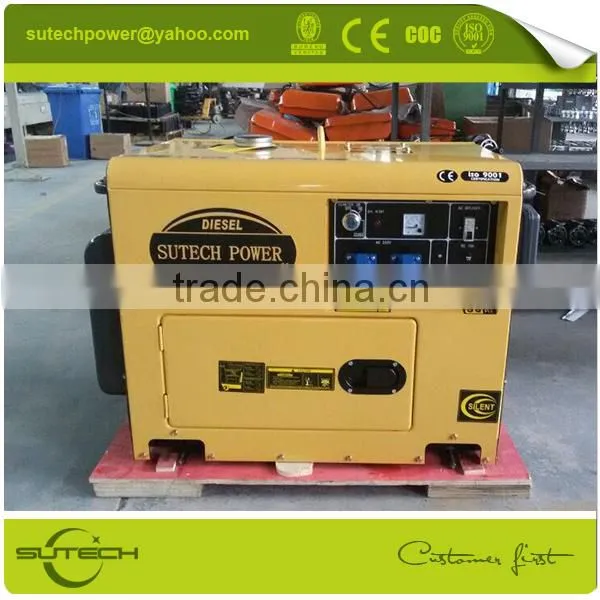

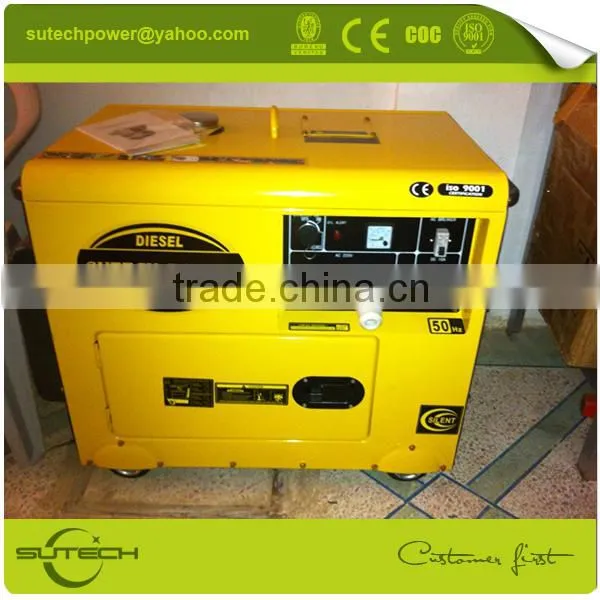

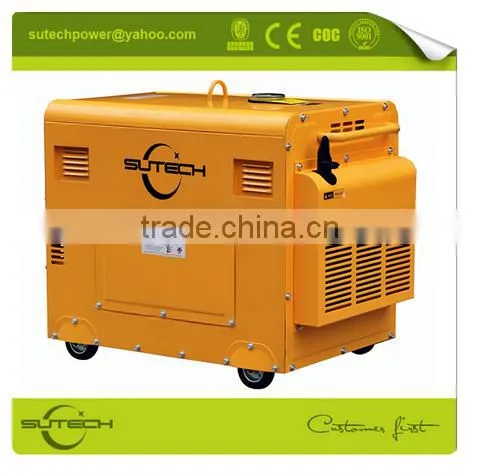

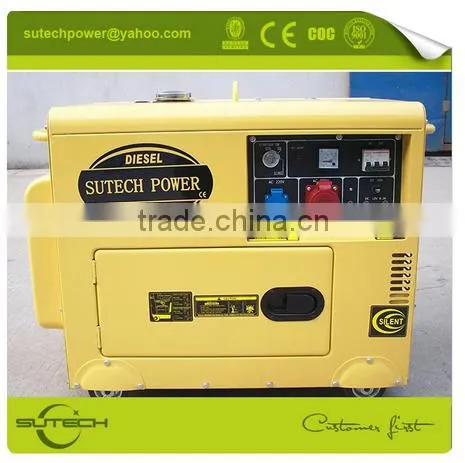

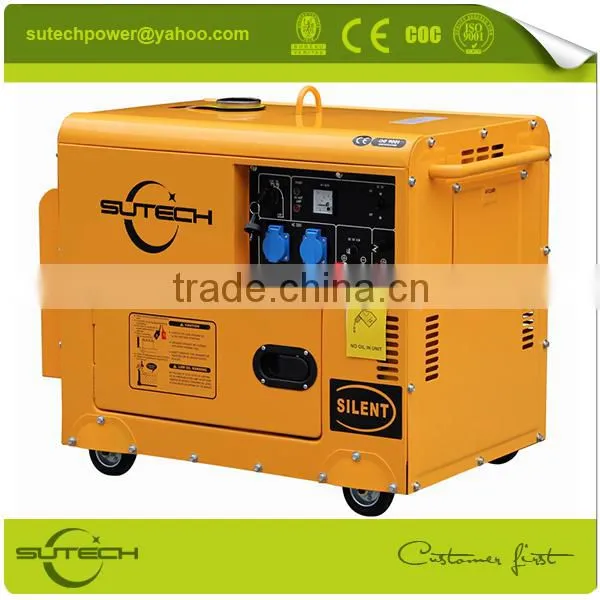

Help CenterMobile Generator! Low Noise Single Phase 5kw Portable 220V Generator With Soundproof and 4 Wheels
Related Products
-
1kw 2kw Low Price Mini Dynamo Diesel GeneratorUS$ 390 - 399MOQ: 1 Set -
Diesel Generator 2kw 2.5kw 6kw Single Phase SilentUS$ 330 - 400MOQ: 1 Set
-
Small Super Silent Air Cooled 6kva Diesel Generator PriceUS$ 530 - 800MOQ: 1 Set
-
Portable 5KW/5KVA Silent Welder Diesel Generator Quality ChoiceUS$ 300 - 530MOQ: 1 Set
-
5kw 5kva Diesel Silent Portable Generator Mini GeneratorUS$ 300 - 530MOQ: 1 Set
220V, 5Kw single phase Portable diesel generator
Air cooled engine uses airflow directed at fins on the cylinders and heads is the cooling medium: heat is transferred directly to the air. The air comes either by natural convection or by forced air.
Water cooled engines circulate coolant around the heads + cylinders though a surrounding water jacket, and use a separate high-efficiency radiator for the final heat exchange to the air. (Marine engines are a bit different - they use the surrounding water instead, either directly or though a water-to-water heat exchanger.)
Air cooled engines are simpler, lighter and easier to maintain as they don't have the 'wet' cooling system elements. They excel in cold climates where coolant freezing can be a problem. However, air cooling is less efficient due to the low heat capacity of air so these engines suffer from hot spots which reduces power, increases emissions and shortens their life.
Air cooled engines are also considerably noisier - both from the engine directly and also from the air blower cooling fan if used.
Frequency(Hz) |
50 |
Max.(KVA)AC output(KW) |
5.5 |
Rated AC output(KW) |
5 |
DC output (V-A) |
12V/8.3A |
Rated voltage(v) |
220 |
Power Factor |
0.8 |
Phase |
Single phase |
Excitation System |
Self-excitation |
Dimension(LxWxH)mm |
950x550x770 |
Net Weight(kg) |
140 |
Type |
Single-cylinder,vertical,4-stroke, |
Displacement(cc) |
406 |
Fuel tank capacity(L) |
16 |
Lube. oil capacity(L) |
1.65 |
Staring System |
Electric starter |
Low oil pressure alarm system |
With |
Open type from 1kva to 12.5Kva
Silent type from 5kva to 12.5kva
