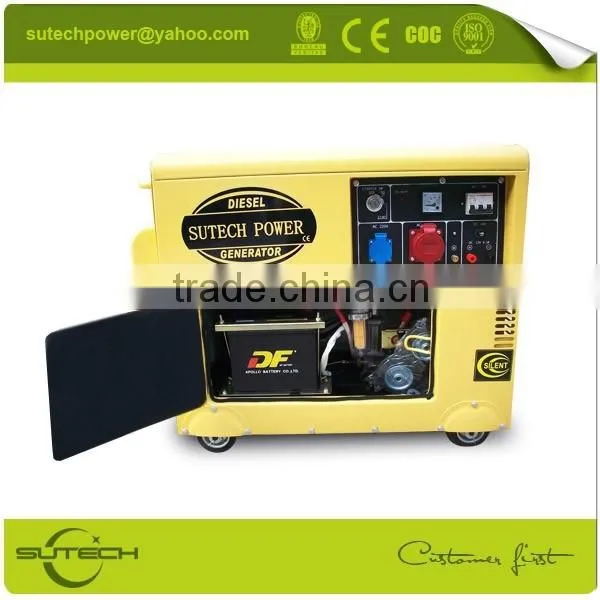

Small Super Silent Air Cooled 6kva Diesel Generator Price

Generator Sets

Frequency (HZ)                             50HZ

Max.output (KW)                            5.5KW

Rated output (KW)                           5KW

Rated AC Voltage (V)                        120,220,230,120/240,220/380

Power Factor                                        0.8

DC output                                       415V/7A

Phase                                               three phase

Alternator Type  Self-excited,2-pole, Single/three phase alternator(brush or brushless)

Starting System                                    Electric

Noise Level (Dba/7m)                              68-72Dba

Fuel Tank Capacity (L)                               16L

Continues Running Time (hr)                          7hr

Engine

Engine Model:                                     186FA

Engine Type                  single-cylinder, vertical,4-stroke air-cooled diesel engine

Max output of engine:                    8.5HP/3000rpm

Bore X Stroke (mm)                                 86×72

Displacement Capacity(cc)                            411cc

Fuel Consumption rate(g/kw.h)                        ≤280

Fuel                                     0# or -10#  light diesel oil

Lubrication Oil Volume (L)                            1.65L

Combustion System                              Direct Injection

Standard Features

Voltmeter                                          Yes

AC Output Socket                                    2

AC Circuit Breaker                                  Yes

Oil warning Light                                   Yes

Oil Alert                                          Yes

Optional Features

DC circuit breaker                                Optional

Hour Meter                                     Optional

Three Phase Voltage                               Optional

Current Meter                                   Optional

Remote Control                                  Optional

ATS                                           Optional

Digital Control Panel                              Optional

New Canopy Type                                Optional

Weld(20-160A)                                  Optional

Dimensions

LxWxH (mm)                                  975*555*710

20FT                                           72PCS
