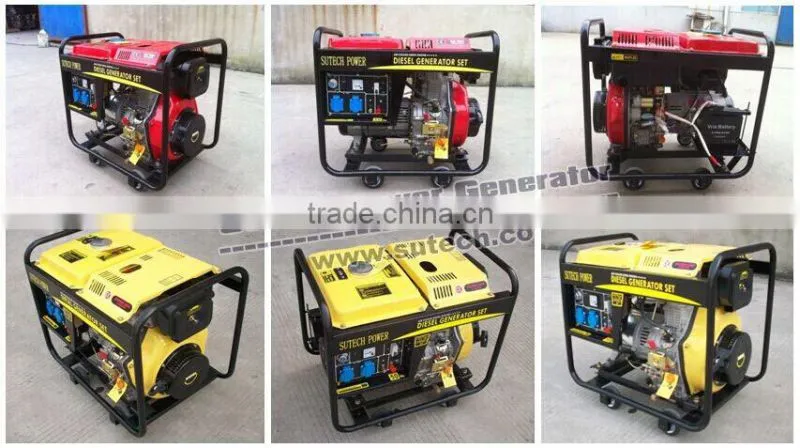

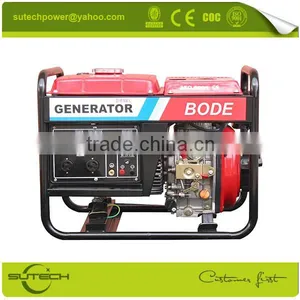

diesel generator set 2.5kva diesel generator

Genset Technical Data

Prime power

30 kW

Standby power

33kW

Rated speed

1500 RPM

Output frequency

50 Hz

Phase

3

Rated voltage

400 V

Noise dB(A) @7m

100

Engine model

4BT3.9-G2

Alternator model

GM-30-4

Diesel Engine Technical Data

Engine Model

4BT3.9-G2

Configuration

4 cycle , 4 cylinders in line

Aspiration

Turbocharged

Bore×Stroke

102 x120 mm

Rated speed

1500rpm

Displacement

3.9 L

Compression Ratio

16.5:1

Prime Power

36KW

Speed Governor

electrical

Cooling System

Water-cooled

Speed Stability (%)

≤5%

Fuel Consumption at 100% Load

214g/kw.h

Starter Motor

DC24V

Marathon Alternator Technical Data

Alternator model

GM-30-4

Alternator manufacturer

Marathon

Exciter type

Single bearing, Brushless, Self-excited

Rated output prime power

30 kW

Rated speed

1500 RPM

Rated frequency

50 Hz

Phase

3

Rated voltage

400V (Available with customer requirements)

Power factor

0.8

Voltage adjust range

≥5%

Voltage regulation NL-FL

≤±1%

Insulation grade

H

Protection grade

IP23
