Home > Products > 800Kw/1000Kva~1600Kw/2000Kva diesel generators > High Quality 1500Kva Diesel Generator Powered by Cummins KTA50-GS8 Engine, Containerized Type or Open Type

High Quality 1500Kva Diesel Generator Powered by Cummins KTA50-GS8 Engine, Containerized Type or Open Type

FOB Price

US$ 165,000 - 250,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	KTA50-G3
Model Number	1500Kva diesel generator (ST-C1500GF)	Output Type	AC Three Phase
Speed	1500rpm/min	Frequency	50Hz
Rated Power	1500Kva	Rated Voltage	110V~6.6KV
Rated Current	2160A

Product Description

Specifications

1500Kva diesel generator, powered by Cummins KTA50-GS8
Stamford alterantor
Deepsea control panel
High quality

1500Kva Diesel Generator (Engine model: KTA50-GS8)

Main technical data

Cummins engine-KTA50-GS8

Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

24V DC start motor;

Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;

Equipped with industrial silencer and flexible exhaust hose;

Equipped with CHINT MCCB circuit breaker;

Designed to Comply with ISO8528/GB2820;

Powered by Cummins engine,Controlled by Deepsea panel

Voltage

Phase

P.F

(COS)

Output

(KVA)

400/230V

0.8

1500

Remark

60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements.

Engine

Cummins 1500kva generator engine data

Engine Model	KTA50-G8
Number of Cylinders	16 cylinders, 60°Vee
Cycle	4 stroke
Aspiration	Turbocharged and after water cooled
Bore×Stroke	159mm x159mm
Displacement	50.3L
Compression ratio	14.9:1
Prime Power/Speed	1200KW / 1500rpm
Standby Power/Speed	1429KW / 1500rpm
Speed Governor	Electrical
Cooling System	Forced water cooling cycle
Steady speed droop	≤1%
Total lubrication system capacity	204L
Coolant capacity (engine only)	165L
Fuel Consumption at 100% Load	205g/kw.h
Starter Motor	DC24V,
Alternator	AC24V

Alternator

Alternator brand	Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
Prime power	1500Kva
Frequency/speed	50HZ/1500rpm (60Hz/1800rpm)
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

Control panel

The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.

Pictures FYI

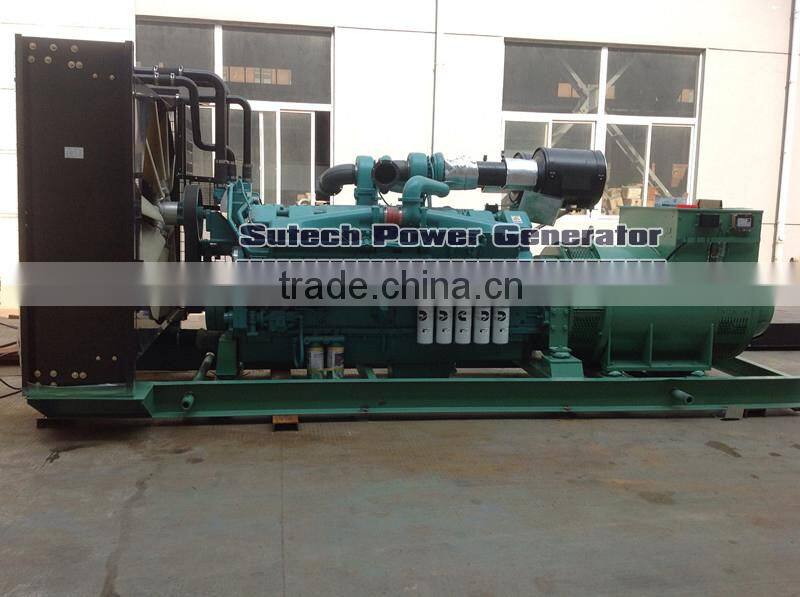

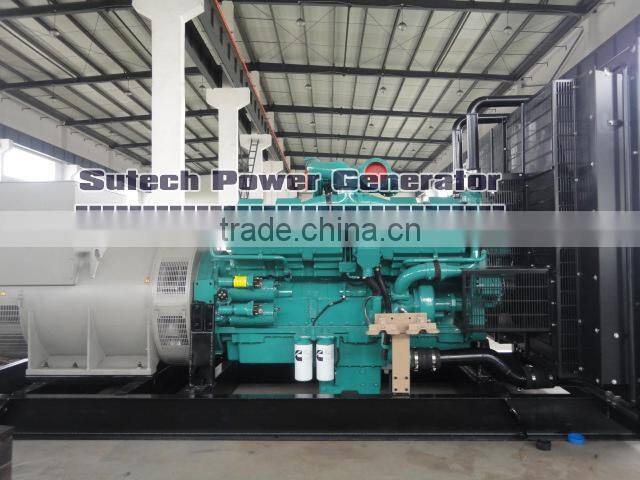

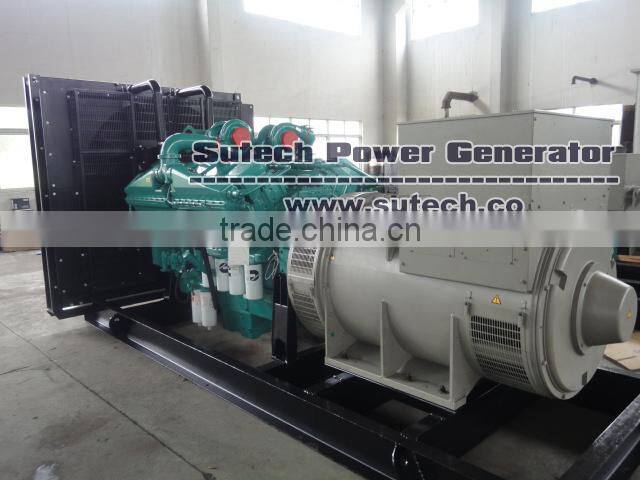

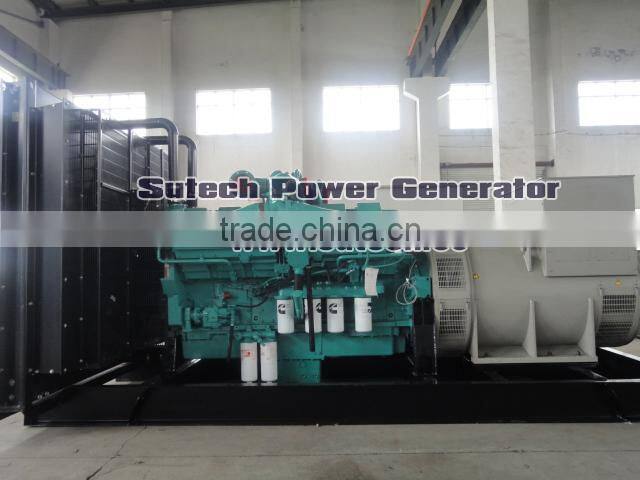

1500Kva Cummins open type diesel generator

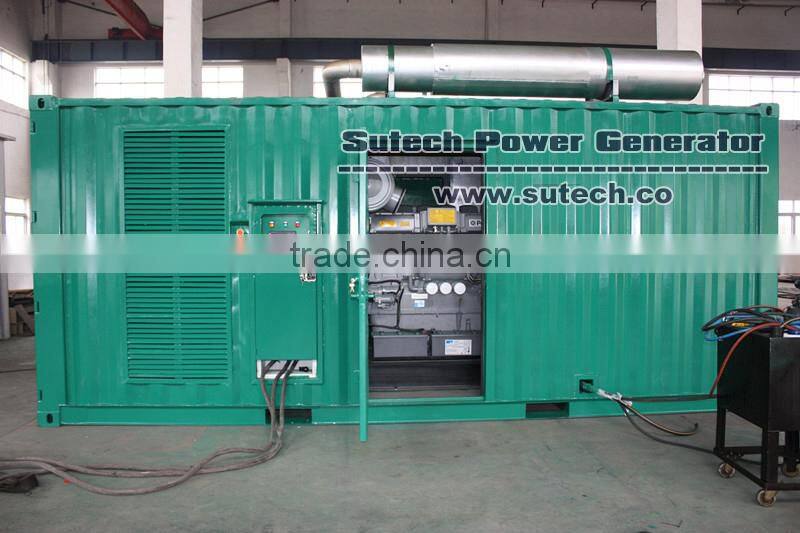

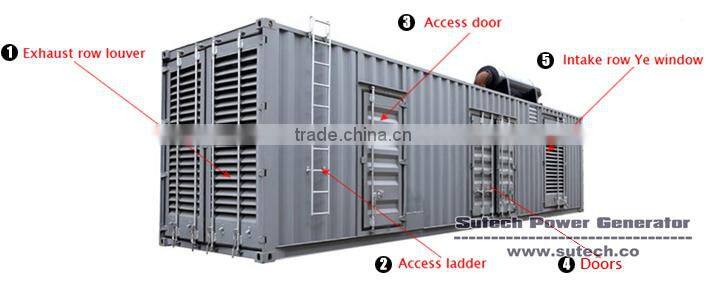

1500Kva Cummins containerized type diesel generator
