Sound Proof 800kw Big Power Diesel Generator Set

Taizhou Sutech Power Machinery Co., Ltd.
Sound Proof 800kw Big Power Diesel Generator Set thumbnail-1
Sound Proof 800kw Big Power Diesel Generator Set photo-1
US$ 75,000 - 120,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
800Kw diesel generator
Model Number:
KTA38-G2A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name 800Kw diesel generator
Model Number KTA38-G2A
Output Type AC Three Phase
Speed 1500rpm/min
Frequency 50Hz
Rated Power 800Kw
Rated Voltage 110V~600V
Rated Current 1440A

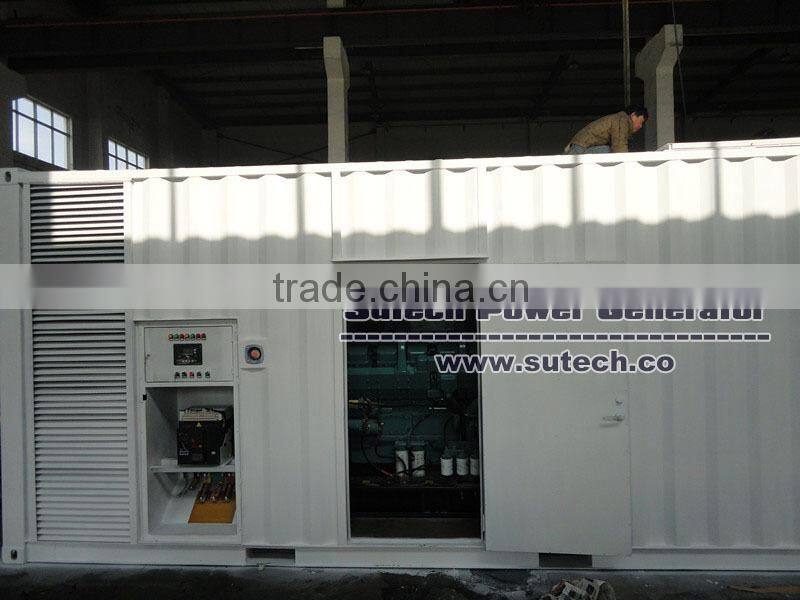

sound proof 800kw big power diesel generator set

hot sale product

          sound proof 800kw big power diesel generator set                                                   sound proof 800kw big power diesel generator set




          sound proof 800kw big power diesel generator set                                                     sound proof 800kw big power diesel generator set





Main technical data

 Cummins engine-KTA38-G2A

Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

24V DC start motor;

Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;

Equipped with industrial silencer and flexible exhaust hose;

Equipped with CHINT MCCB circuit breaker;

Designed to Comply with ISO8528/GB2820;

Powered by Cummins engine,Controlled by Deepsea panel



Voltage

HZ

Phase

P.F

(COS)

Output

(KVA)

400/230V

50

3

0.8

1000

Remark

60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements.

Engine

 Cummins 1000kva generator engine data



Engine Model

KTA38-G2A

Number of Cylinders

12 cylinders, 60°Vee

Cycle

4 stroke

Aspiration

Turbocharged and after water cooled

Bore×Stroke

159mm x159mm

Displacement

37.8L

Compression ratio

13.9:1

Prime Power/Speed

813KW / 1500rpm

Standby Power/Speed

895KW / 1500rpm

Speed Governor

Electrical

Cooling System

Forced water cooling cycle

Steady speed droop

≤1%

Total lubrication system capacity

138L

Coolant capacity (engine only)

124L

Fuel Consumption at 100% Load

202g/kw.h

Starter Motor

DC24V,

Alternator

AC24V

Alternator Model

404E

Manufacturer

Shanghai Stamford

Rated power

1000Kva

Frequency/speed

50HZ/1500rpm

Exciter type

Single bearing, Brushless, PMG

Power factor

0.8

Voltage adjust range

≥5%

Voltage regulation NL-FL

≤±1%

Insulation Grade

H

Protection Grade

IP23

Phase / wire

3 phase 4 wires

Alternator



Alternator brand

Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…

Prime power

1000Kva

Frequency/speed

50HZ/1500rpm (60Hz/1800rpm)

Exciter type

Single bearing, Brushless, Self-excited

Power factor

0.8

Voltage adjust range

≥5%

Voltage regulation NL-FL

≤±1%

Insulation Grade

H

Protection Grade

IP23



Control panel

 The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.



Pictures FYI

1000Kva Cummins open type diesel generator

sound proof 800kw big power diesel generator set

1000Kva Cummins silent diesel generator

sound proof 800kw big power diesel generator set



sound proof 800kw big power diesel generator set



sound proof 800kw big power diesel generator set



sound proof 800kw big power diesel generator set



sound proof 800kw big power diesel generator set



sound proof 800kw big power diesel generator set
