Hot Sale 550kva Electric Generator With High Quality Control Panel
- Shanghai
- T/T Credit Card
You May Like
-
Hot Sale 600kva Diesel Generator Container With the Competitve Price
-
High Quality Electric 400kva Silent Diesel Dynamo With Low Price
-
With ATS 750kva Emergency Generator Powered by Cummins KTA38-G2 Engine
-
Germany Original Engine D2842LE203 750kva Man Engine Generator
-
Automatic 750Kva Cummins Silent Genset, Powered by Cummins KTA38-G2 Engine
-
Automatic 750Kva Silent Diesel Generator, Powered by Cummins KTA38-G2 Engine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Volvo | |
| Model Number | TAD1641GE | Output Type | AC Three Phase | |
| Speed | 1500rpm/min | Frequency | 50HZ | |
| Rated Power | 550Kva | Rated Voltage | 110V-600V | |
| Rated Current | 792A |
Product Description
550kva electric generator
Engine Manufacturer | VOLVO |
Engine Model | TAD1641GE |
Number of Cylinders | 6 cylinders in line |
Cycle | 4 stroke |
Aspiration | Turbocharged and after water cooled |
Bore×Stroke | 144mm x165mm |
Displacement | 16.12L |
Compression ratio | 16.5:1 |
Prime Power/Speed | 430KW / 1500rpm |
Standby Power/Speed | 473KW / 1500rpm |
Torque at/Prime power | 2674Nm |
Torque at/Standby power | 2997Nm |
Effective mean pressure at/Prime power | 2.1Mpa |
Effective mean pressure at/Standby power | 2.3Mpa |
Max combustion pressure at/prime power | 17.1Mpa |
Max combustion pressure at/standby power | 18.2Mpa |
Total mass moment of inertia, J (mR2) | 4.20kgm2 |
Degree of irregularity at/prime power | 1:88 |
Friction power | 53Kw |
Speed Governor | Electrical/Volvo EMS 2 |
Cooling System | Forced water cooling cycle |
Steady speed droop | ≤1% |
Starter Motor | DC24V, |
Alternator | AC24V |
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power | 550Kva |
Frequency/speed | 50HZ/1500rpm (60Hz/1800rpm) |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
Information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts

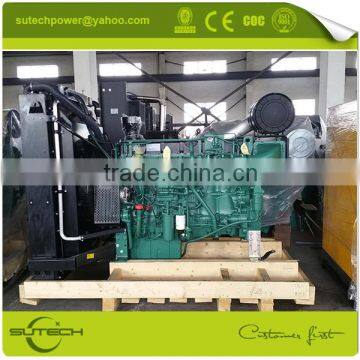

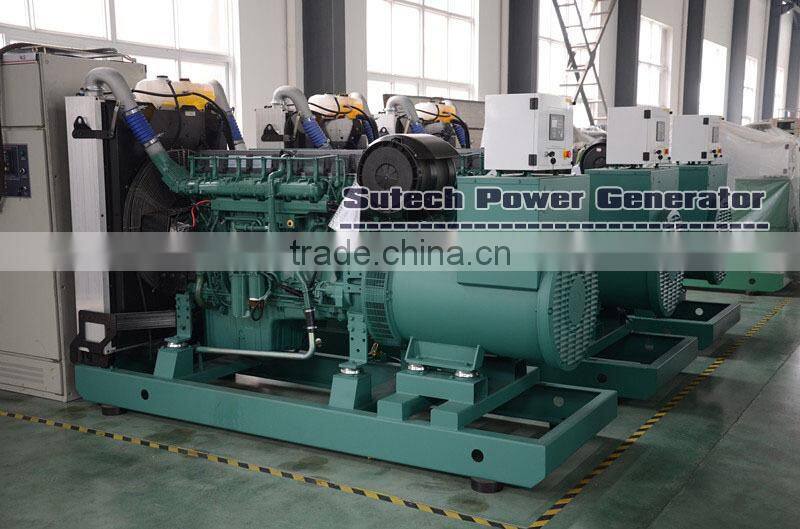

550Kva Volvo Open-type Generator

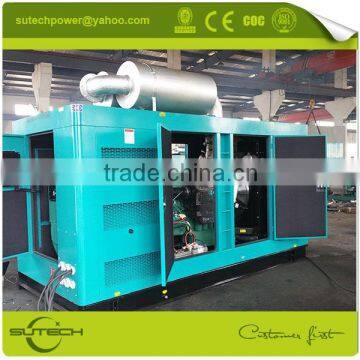

Shipping pictures (550Kva Volvo Silent Generator)
