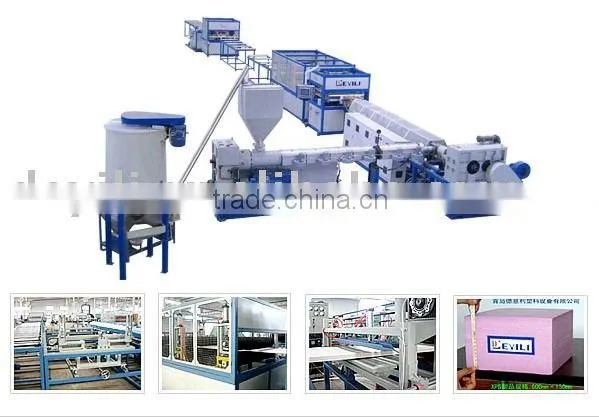

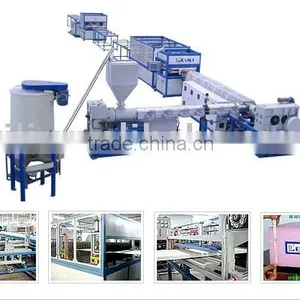

XPS foamed board extrusion line

Specifications

model:SFBZ-120/90,SFBZ-150/135,SFBZ-200/165;extruder connection type:double tandem;width of sheet 600-1200mm,thickness20-100mm.

XPS foamed board production line, also named as XPS heat insulation boards extrusion line or XPS heat insulation sheet(plate) extrusion line, is one of our new hi-tech products developed on the basis of international advanced technology.
XPS foam extrusion board is one kind of good insulating materials with continuous even surface and beehive structure. XPS board has superior advantages of good heat preservation, heat insulation, waterproof and high compression resistance. XPS boards have been widely used in the fields of heat preservation and insulation for roof, outer wall, low temperature storage facilities and road construction projects.

Main technical data of XPS foam board extrusion machinery:

Model	Screw diameter and L/D ratio	Width(mm)	Thickness(mm)	Capacity(m3/24h)	Powerkw) Load factor 50%	Total installed power	Overall dimension (LXWXH)
SFBZ-120/90	90-32D 120-33D	600 900	20-60 20-40	80-100	45 37	160kw	35mX6mX4m
SFBZ-150/135	135-32D 150-36D	600 900 1200	20-100 20-60 20-40	180-220	90 75	295kw	43mX6mX4m
SFBZ-200/165	165-28D 200-30D	600 900 1200	20-100 20-60 20-40	240-300	200 160	580kw	80mX8mX5m
